Рабочая платформа
Рабочая платформа TwinBusch 2 Säulen Hebebühne 4.2 t barrierefrei
Год выпуска
2016
Состояние
новое
Цена без учета НДС
349600.00
Отправить сообщение
Описание
2-column lift 4.2 t - barrier-free - Profi Line TW 242PEB43
The Profi-Line lift is for daily professional workshop use.
With automatic unlocking of the safety latches and two-stage turntables. Barrier-free passage. The lift also has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam.

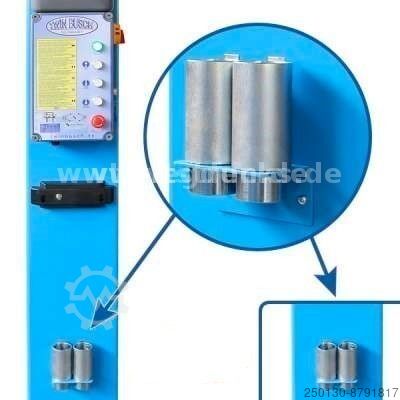

On the outside of each column there is a practical plug adapter holder that offers space for the safe storage of two plug adapters each.
Anti-lift-up button for precise lowering of the lift without prior automatic lifting. As well as a practical 230 V socket directly on the control box.
* 1A workmanship quality with CE certificate
* Production according to ISO 9001
* New: Anti-lift-up button
* New: Practical 230 V socket directly on the control box
* Protective cover in front of the columns
* Automatic safety locking and unlocking
Cgoc R Nc Iokpl Elofnjw
* High-quality support columns made of special rolled profile
* 2 hydraulic cylinders for powerful lifting and lowering
* Automatic support arm locking
* Synchronization control using wire ropes
* Telescopic support arms
* Practical plug-in adapter holders (one holder on each side of the column) for two plug-in adapters each
----* CE load capacity: 4200 kg
* Max. lifting height: 1900 mm/Ad 2080
* Swing-in height: 96 mm
* Lifting, lowering time approx.: 45/30 sec.
* Drive voltage: 400V / 3 phases
* Drive power: 2.2 kW
* Fuse: 16 A (C/slow)
* Own weight: 700 kg
* Lifting height (turntable screwed in) 1900 mm
* Lifting height (turntable screwed out): 1960 mm
* Lifting height (plug adapter + turntable screwed out): 2060 mm
* Safety release: automatic
* Turntable: 2-stage
* Powder-coated: yes
* Anti-lift-up button: yes

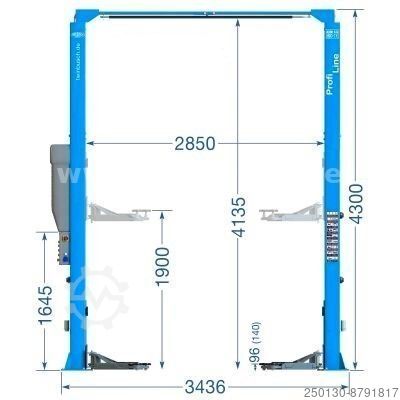

* Total width/base plate (without motor): 3436 mm
* Column height: 4300 mm
* Required concrete thickness: 200 mm

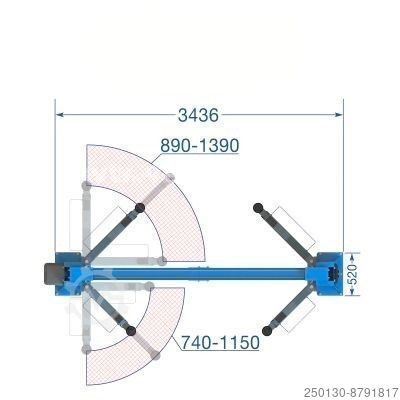

* Support arm length / short (approx.): 740 - 1150 mm
* Support arm length / long (approx.): 890 - 1390 mm
* Width between the columns: 2850 mm
* max. clearance height: 4135 mm
* max. clearance width: 2574 mm
* Color: RAL 5015 (blue), RAL 7000 (gray)
----Stock number 93
-----Subject to errors and prior sale
