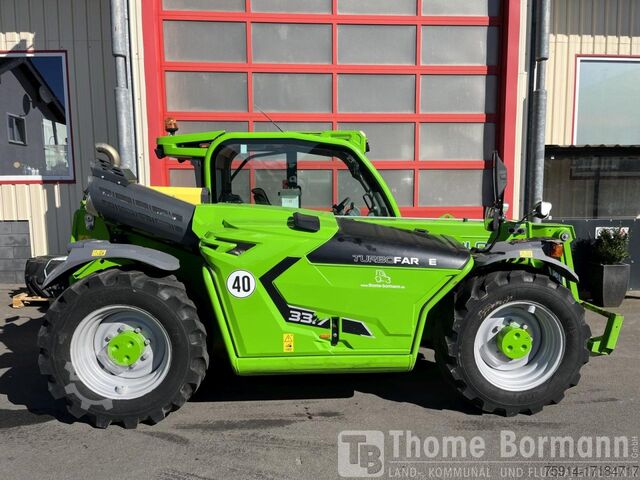

Телескопический погрузчик Merlo TF 33.7-115

Описание

Operating hours: 2057, first registration: 24.05.2022

Engine: 4-cylinder Deutz TCD 3.6, 3.6 l displacement, water-cooled
Power: 85 kW (115 HP) at 2,300 rpm
Stage V
Diesel particulate filter, oxidation catalyst, and SCR catalyst with AdBlue injection (DPF + DOC + SCR)

Hydrostatic drive
Pump: electronically controlled with variable delivery rate
Motor: variable displacement motor
EPD TOP incl. with optional automatic speed increase
Mineral-based HVI 46 hydraulic oil

Transmission
2 gears, electrohydraulically controlled
Vmax = 1st gear / 2nd gear = 16 / 20 km/h, optional 40 km/h

Cabin
Enclosed cabin, split door, 360-degree all-round visibility
GRAMMER air-suspended seat with lap belt
ROPS/FOPS certified
Heating
Dkjcoupq Tqs Ed Ddcst
Front, roof, and rear wipers
Sun shade roller

4x1 electronic joystick with capacitive release incl. directional control switch
Telescopic boom, 2-section with electronic end-position damping (Soft Stop)
Attachment carrier quick-change system, type "ZM2," can be hydraulically operated from the cab

Steering
Hydraulic steering
3 steering modes: all-wheel, front-wheel, crab steer

Drive
Permanent all-wheel drive
Axles
Front axle fixed, rear axle oscillating

Braking system
Power-assisted disc brakes on all four drive shafts, automatically engaged parking brake when the engine is switched off

Hydraulic system
Variable displacement "LOAD SENSING" pump
Working hydraulics flow: 125 l/min
Hydraulic fan flow: 46 l/min
Total flow: 171 l/min
Working pressure: 210 bar
Flow-sharing control block

Electrics
12 V system, 100 Ah battery, 120 A alternator

Stabilization control
Simplified Merlo ASCS system (ASCS-light) with fully electronic stability control, audio-visual alarm, implement recognition, and overload cut-off

Special equipment
Tires 400/70-24 158A8
Rear hydraulic connections with separate controls
EU road approval as tractor/agricultural machine 40 km/h
Trailer coupling, height-adjustable, self-locking, 30/32 mm pin, incl. trailer lighting socket
Air conditioning
Boom suspension (B.S.S.)
LED rotating beacon on cab roof (approval responsibility of the customer)
LED work lights on the cab (2 front, 2 rear) instead of standard halogen headlamps
2 work lights at the end of the first arm (main boom)
ASCS upgrade: display with all ASCS functions + continuous flow front

Location: 54595 Prüm
