Трактор

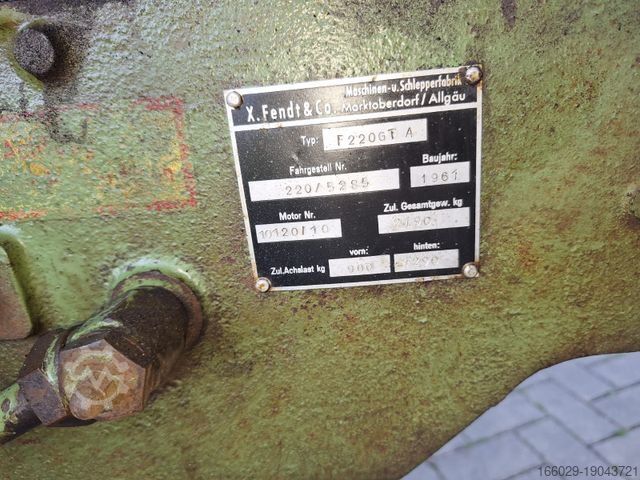

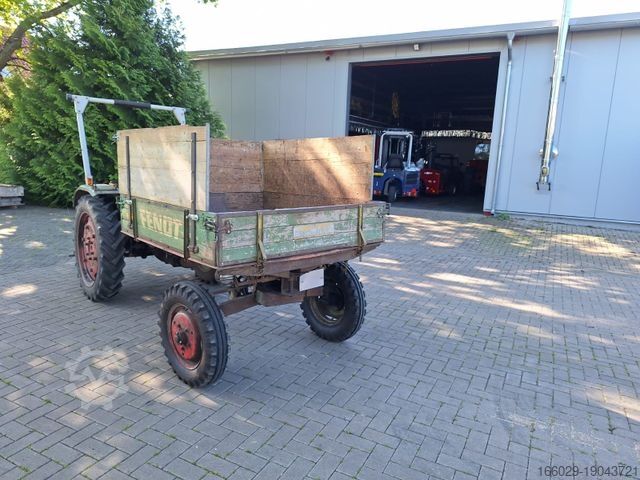

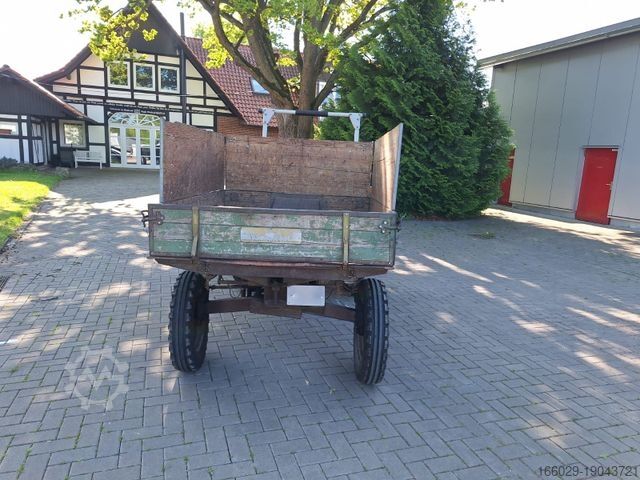

Трактор FENDT F 220 GT Geräteträger
Год выпуска
1961
Состояние
б/у
Отправить сообщение
Описание
The tractor is in unrestored but good condition and is fully functional. This is a private sale.
Type
* Box-shaped central tube support

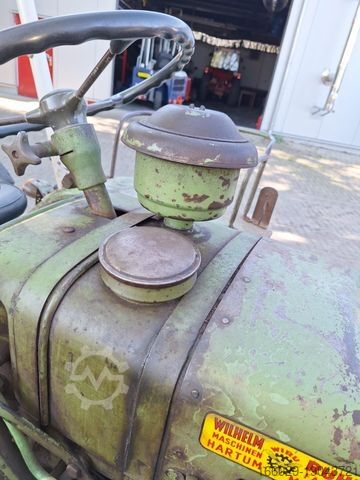

Engine

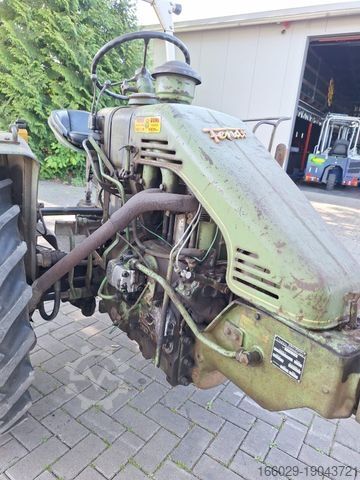

* Air-cooled, two-cylinder, four-stroke, in-line diesel engine with direct injection from MWM
* MWM AKD 311Z, displacement 1400 cc, 19 hp, bore = 90 mm, stroke = 120 mm. Clutch: Single-disc dry clutch
Transmission
* Fendt, 6-speed range transmission (combined gear and dog clutch transmission) with 6 forward gears and 2 reverse gears on a single lever with a double H-shift.
* Rear wheel drive
Brakes
* Foot-operated two-shoe brake acting on both rear wheels, designed as a steering brake. Handbrake as a duplex brake, acting on the transmission.
Axles

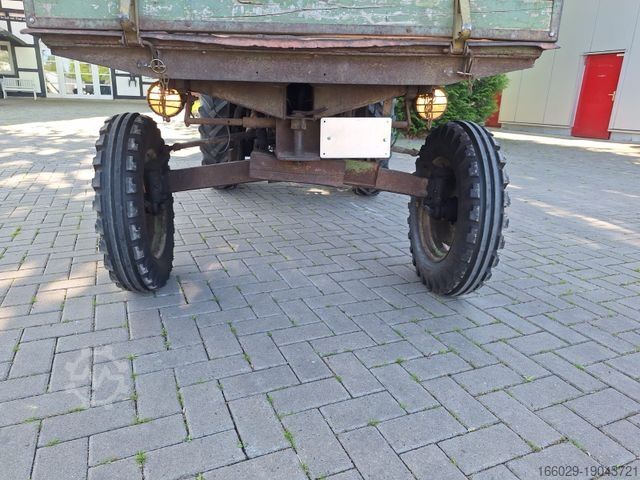

* Fendt rigid front axle with central tube, suspended. Axle load front = 900 kg, rear = 1290 kg

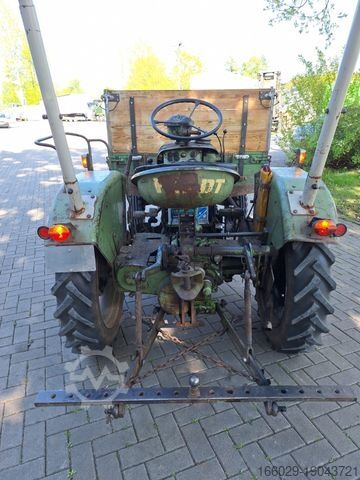

Hydraulic system and power lift
* Independent hydraulic pump, driven directly by the engine. Bosch hydraulic pump 11.0 liters/min, 110 bar.
Dimensions and dimensions
* Length = 3163-3420
* Width = 1517-1520
Cgjc R Nc Iewggpljfnsw
* Height = 1580. Ground clearance = 360 mm.
* Permissible weight Total weight = 2190 kg
Tires
* Front tires 5.50-16

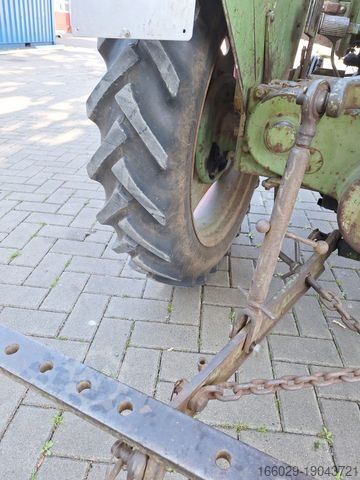

* Rear tires 8-28
Capacities
* Fuel tank 20 liters
* Hydraulic tank 5.5 liters, with tipper 11.0 liters
* Transmission oil 13 liters
* Engine oil approx. 4 liters
Характеристики
Мощность
14 кВт (19,03 л.с.)
Следующая проверка (TÜV)
01/2026
