Выдвижной контейнер 6 м.
Выдвижной контейнер 6 м. Hitta 6m Abrollplattform/ Tieflader
Год выпуска
2025
Состояние
новое
Отправить сообщение
Описание
Dear Sir or Madam,

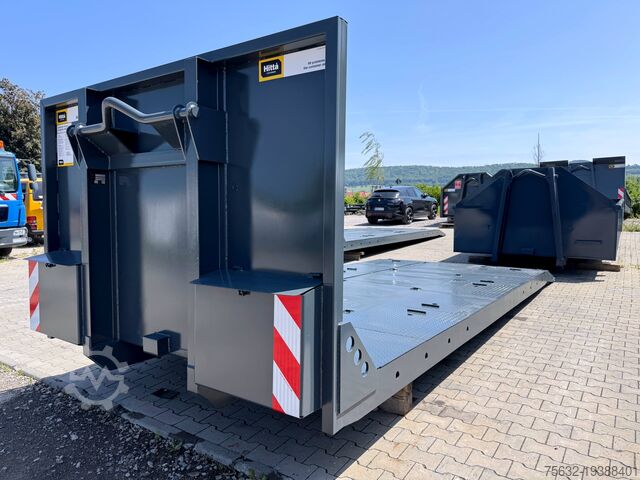

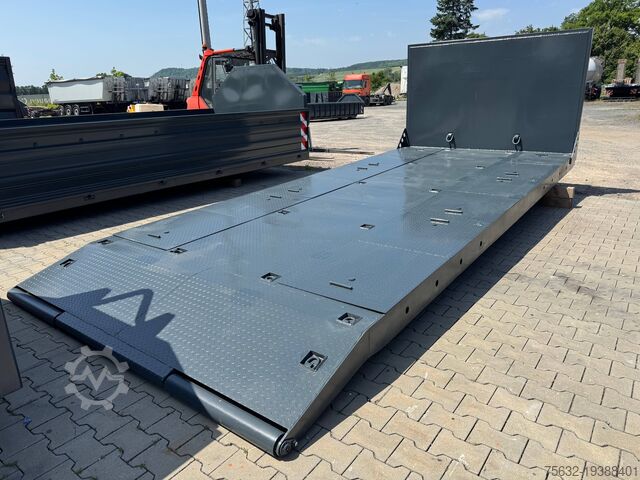

We are offering a new roll-off platform from our own production for sale.
The platform is equipped with the following features:
- Manufactured according to DIN standards
- Mounting bracket with 50mm diameter
- Hook height: 1570mm
- 5mm chequer plate floor / 4mm front wall thickness
- Heavy-duty hook mount with surrounding plates
- IPN 180 longitudinal beams/reinforced
- External rollers greasable and replaceable
- Primed and painted in RAL 7016 (Anthracite)
- C-locking mechanism according to DIN
- 7 pairs of recessed lashing eyes, each with a pulling force of 5t
Bsc R Nc Iowtz Uvefnswp
- Lateral perforated strips with 30mm holes on each side
- 6x robust and securable inserts for compensating wheel tracks
- Wheel tracks recessed by 120mm (floor height: 125mm)
- Each recessed wheel track approx. 4780mm long & 708mm wide
- 2x lockable steel storage compartments at the front
- 2x lashing rings with a pulling force of 5.3t each on the inside of the front wall
- 2x warning markings according to §32 (1) of the German Road Traffic Regulations (StVO) & DIN
- Including identification plate & container inspection according to DGUV Rule 114-010 (formerly BGR)
- Immediately available
Also available with usable lengths of 6.5m & 5.5m.
Nationwide delivery available at an additional cost!
If you are interested in other roll-off container products, we would be pleased to receive your inquiry!
Характеристики
Общий вес
15 000 кг
Собственный вес
2 300 кг
Максимальная грузоподъёмность
12 700 кг
Цвет
серо-чёрный
Ширина пространства для загрузки
2 500 мм
Длина грузового отсека
6 000 мм
Высота грузового отсека
125 мм
