Контейнер с крюковым захватом
Контейнер с крюковым захватом Wassertank, Abrollcontainer, ca. 18m³
Год выпуска
2024
Состояние
новое
Отправить сообщение
Описание
Vehicle location: in transit,

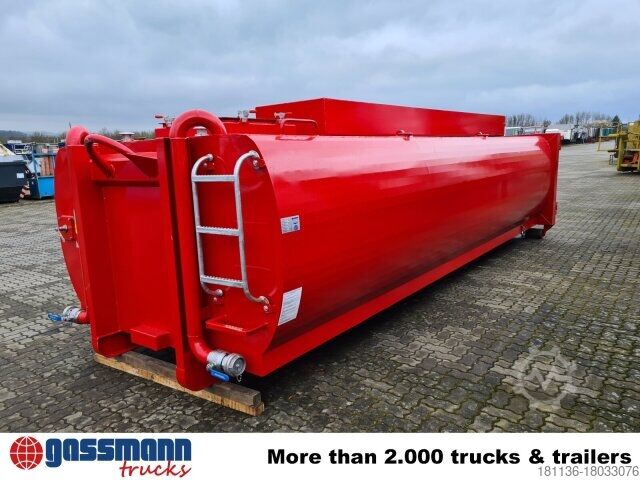

Structure: ARCHIVE IMAGES Roll-off container for water in accordance with DIN 14505
- Water transport for at least 10,000 liters
- Length: approx. 6.90 m
- Width: approx. 2.50 m
- Height: approx. 1.25 m
Bwjc R Novhmqyec Ifnjp
- Permissible total weight: 14,000 kg
- Roll-off frame must be manufactured in accordance with DIN 14505:2015

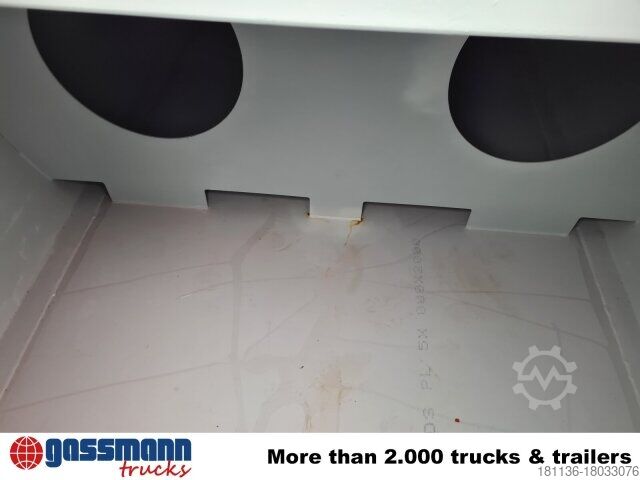

- Water tank with baffles

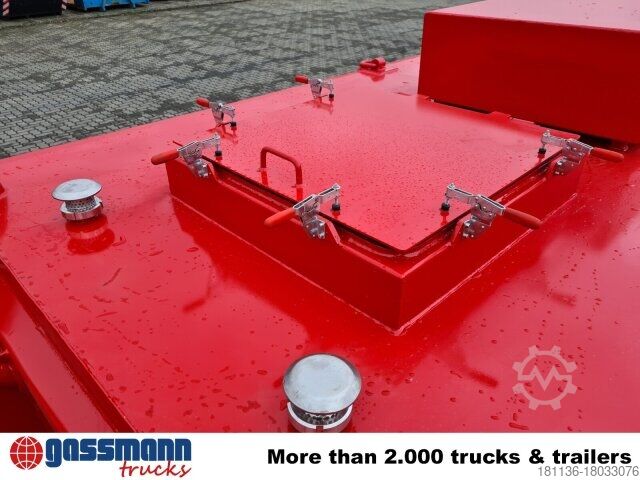

- Dome cover 60 x 60 cm square or round (diameter 60 cm) as entry and cleaning opening
- Ventilation valve

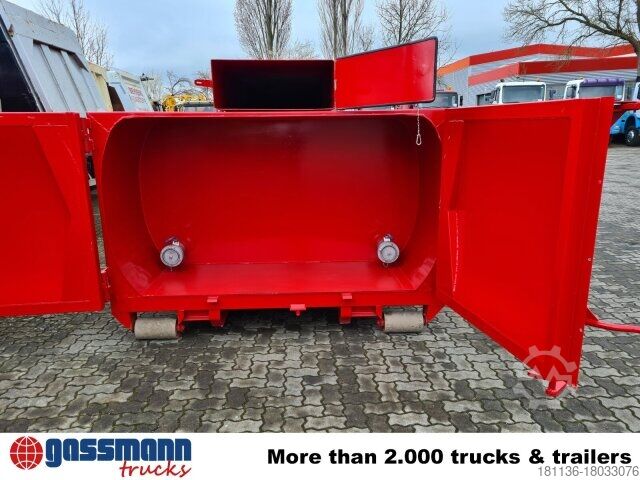

- Equipment compartment in the rear area for storing 2 B 5m filling hoses, folding containers (Husky 3000 Gal.) and water-carrying fittings, size: min. 80cm deep, 200cm wide, 100cm high, closed with a simple closing flap system or roller shutter

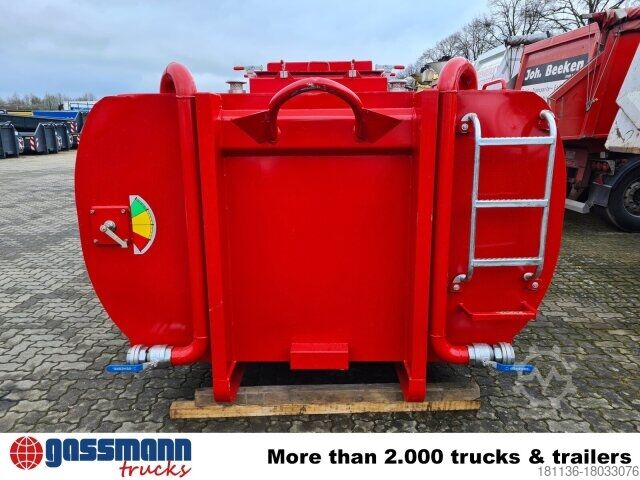

- Complete emptying must be possible without a pump at the rear, e.g. two emptying nozzles min. DN 100 with shut-off valves and Storz A coupling DN 125 in the middle of the container with a shut-off valve, also accessible at the rear
- Two access nozzles DN 75 with Storz B coupling and shut-off valve, free inlet into the tank, pipe routing in the lower area of the roll-off container on the right and left or both at the back, led outwards
- Automatic ventilation and final ventilation valve, volume flow min. 3,000l min
- Water level indicator
- Color: red RAL 3000
- Storage box for 2 A hoses, dimensionally stable 5 m in roof box design

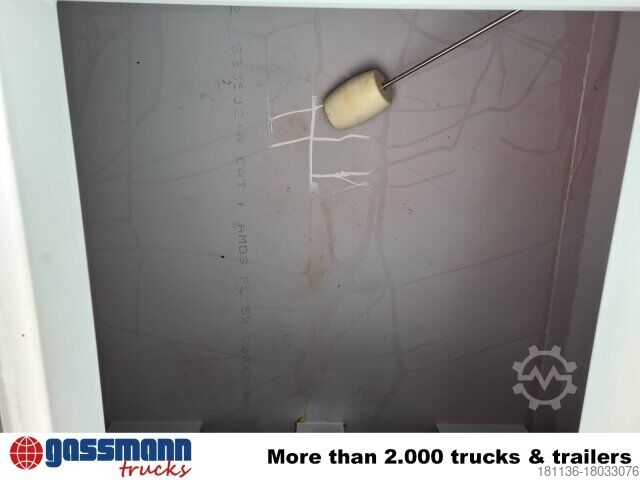

- Plastic coating inside
- with overflow possible for use on 3-axle vehicles (tank approx. 11,500L capacity)
Delivery time approx. 10 - 12 weeks
Available from 5,000-25,000 liters Price depending on the number of liters
between EUR 10,000.00 to approx. EUR 20,000.00 per number of liters/volume
Available with self-priming water pump, self-lubricating with separate motor, delivery capacity: 129m³/hour 2000l/min, pump height: 17m, grain size: 28mm, fuel diesel, tank: 4.3 ltr., see 2907 for an additional charge of EUR 4,000!
Available as a roll-off container and tank ACCESSORIES INFORMATION WITHOUT GUARANTEE, subject to changes, prior sale and errors!
- .
Характеристики
Общая высота
69 000 мм
Тип передачи
другое
Цвет
красный
Кабина водителя
другое
Ширина пространства для загрузки
2 500 мм
Длина грузового отсека
6 900 мм
Высота грузового отсека
1 250 мм
Объем грузового пространства
20 м³
