Обрабатывающий центр - горизонтальный
Обрабатывающий центр - горизонтальный MAKINO A99-A188
Год выпуска
2000
Состояние
б/у
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
x-travel 1000 mm
y-travel 1000 mm
z-travel 950 mm
Control FANUC Pro-3
feed X/Y/Z/-axis 1 - 50.000 mm/min
rapid traverse X/Y/Z 50,00 m/min
tool taper HSK-A 100
turning speeds 20 - 12.000 U/min
spindle drive 25 / 30 kW
torque milling spindle 420 Nm
spindle diameter in front bearing 110 mm
B - axis 360 x 0,001 °
size of pallet 2x 800 x 800 mm
table load capacity 1.800 kg
Ppoc Rsvxwpzj Nc Ifneu
dimension of workpiece 1.000 x 950 mm
workpiece height max. 1.000 mm
tool piece magazine with 188
tool length - max. 475 mm
tool diameter 320 mm
weight of tools max. 20,00 kg
total power requirement 65,00 kW
weight of the machine ca. 30,00 t
dimensions of the machine ca. 8,00 x 5,30 x H3,50 m

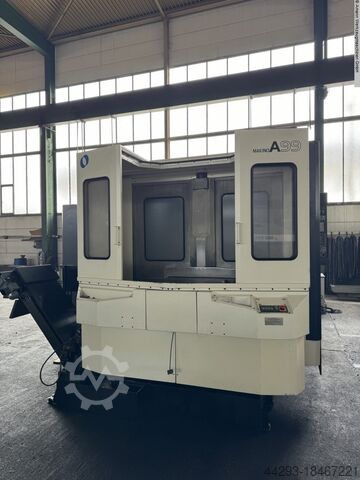

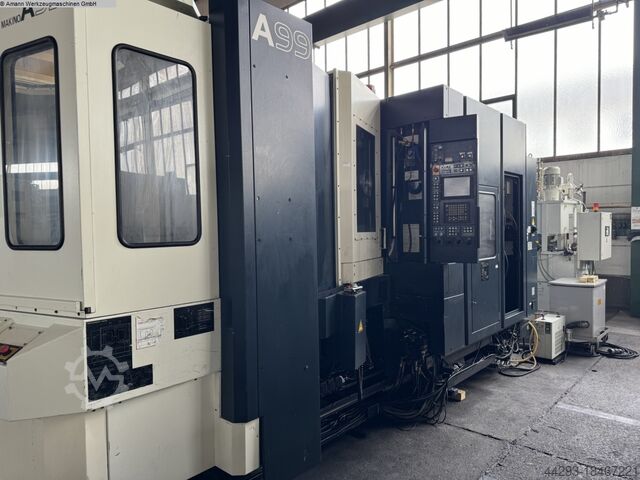

Horizontal machining center with FANUC Porfessional 3 control,
NC rotary table, el. handwheel, chip conveyor,

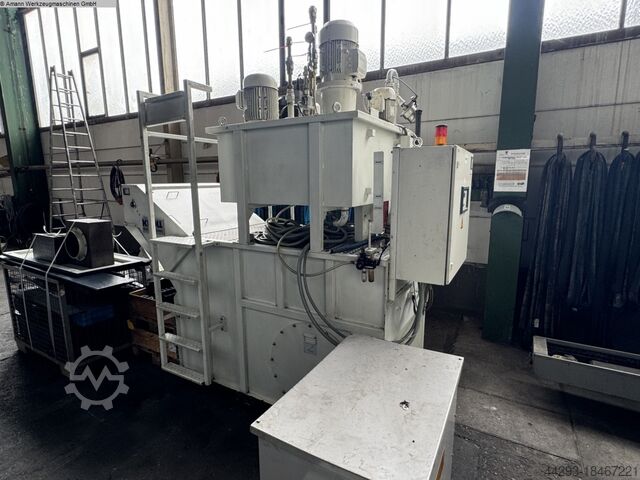

coolant filter KNOLL VRF 450/2300, through-spindle coolant,

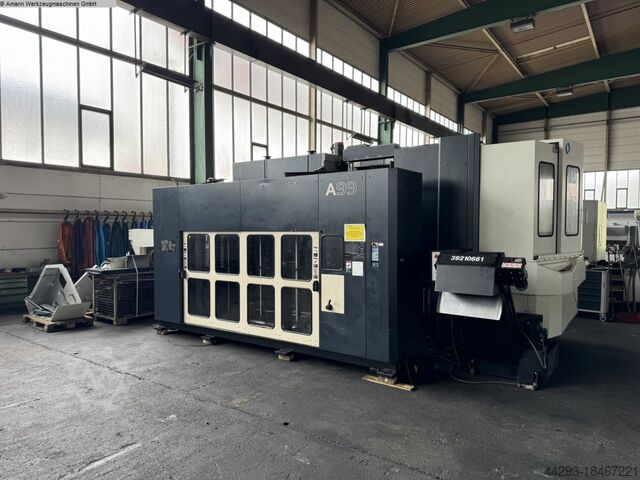

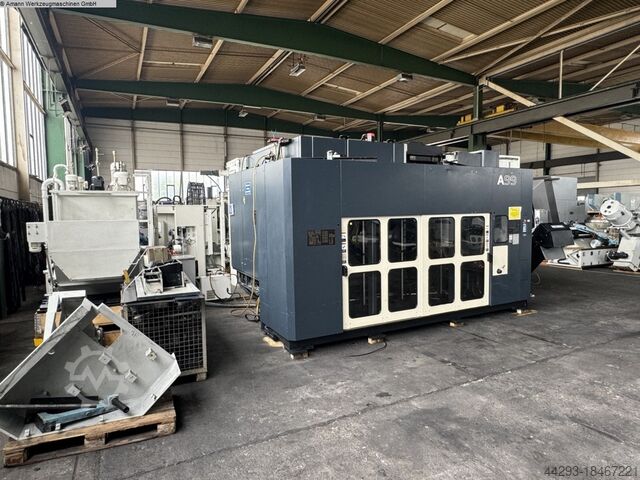

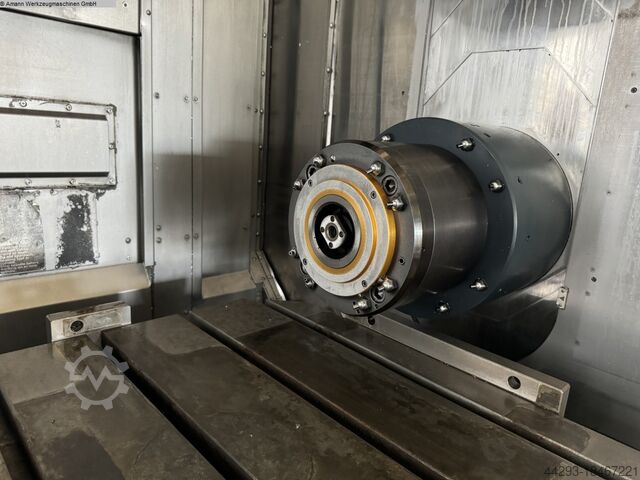

188-station tool magazine. New spindle in 2023
Machine can be inspected under power.
