Your authorized ISUZU specialist dealer with expertise, service and advice offers you:

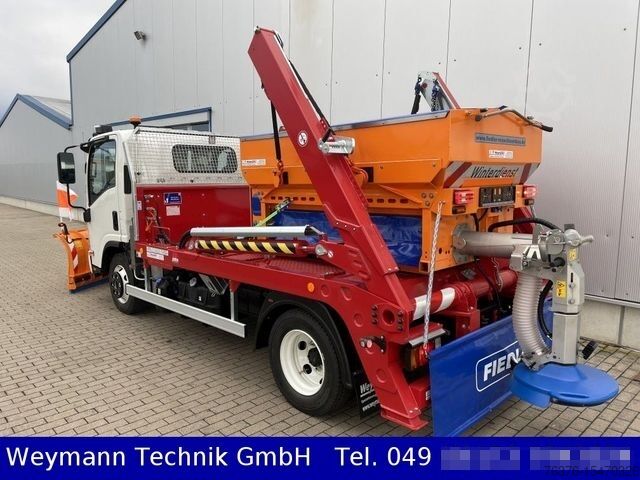

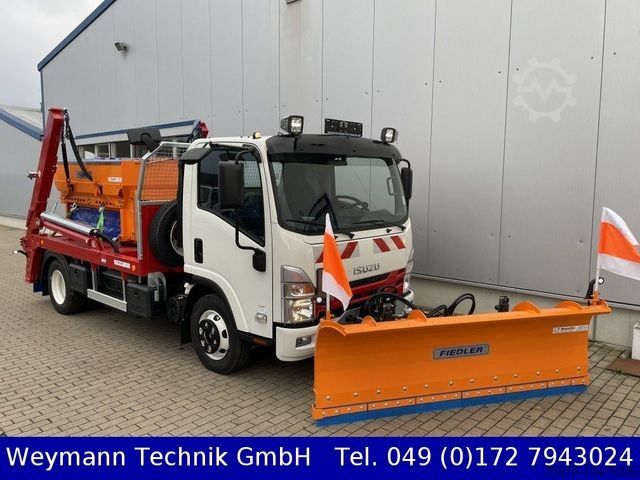

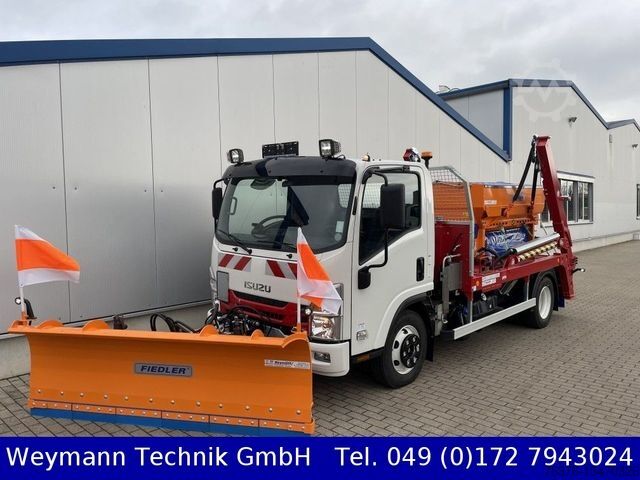

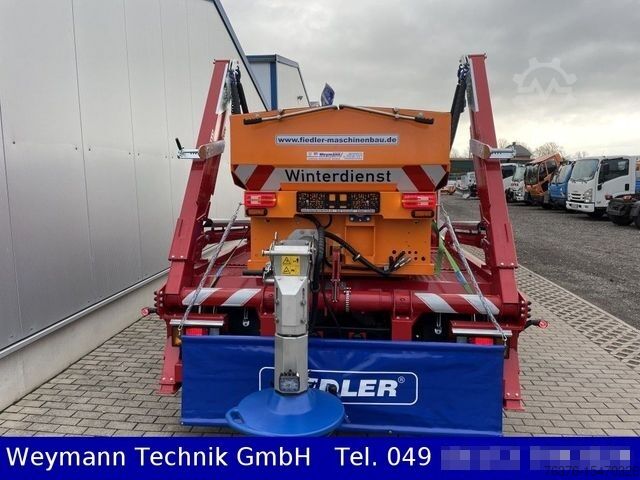

ISUZU NPR with automatic manual transmission with converter + skip loader JOTHA 5518 for containers from 3 to 10 m³ + winter service equipment
3-year guarantee on the basic vehicle from the day of first registration or 100,000 km
PAYLOAD 3,260 kg at Gg. 7,490 kg or 4,270 kg at 8,500 kg
Equipment:
- 5.2 liter turbo diesel with common rail direct injection 140 kW / 190 HP EURO VI OBD-E (max. torque 510 Nm at 1,600 - 2,800 rpm)
- Particle filter system with DPD system and AdBlue (the self-cleaning system allows the filter to be cleaned without a visit to the workshop, thanks to the new DPD regeneration technology, which indicates when the function is required. You just have to press the DPD button and the system cleans itself in 20 minutes)
- Automated manual transmission (NEES II) with 6 gears and wear-free and finely dosed starting is provided by a built-in flow converter! The gears can also be switched sequentially manually on the selector lever. Depending on the load, the driver can use a button to select whether the vehicle should start in 1st or 2nd gear.)
- Engine brake, cruise control
- Leaf spring front axle (max. axle load 3,100 kg), leaf spring rear axle (max. axle load 5,800 kg)
- Tires 215/75 R17.5 M+S
- ABS with EBD and electronic traction control on the rear axle (ASR)
- Electronic vehicle stability control (EVSC) system
- Lane departure warning
- Emergency brake assistant
- Wheelbase 3,365 mm
- Air conditioning

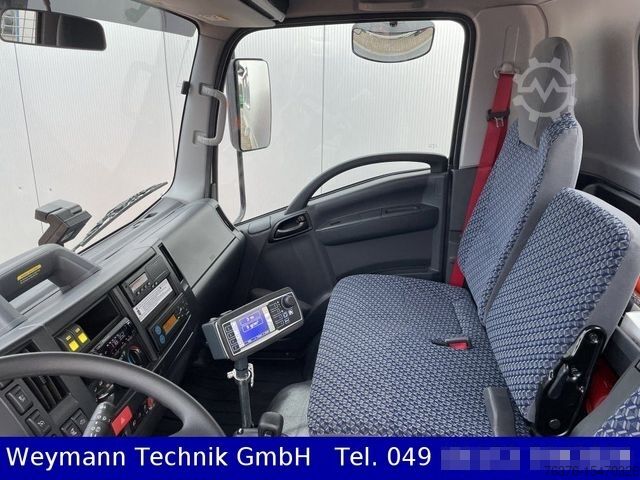

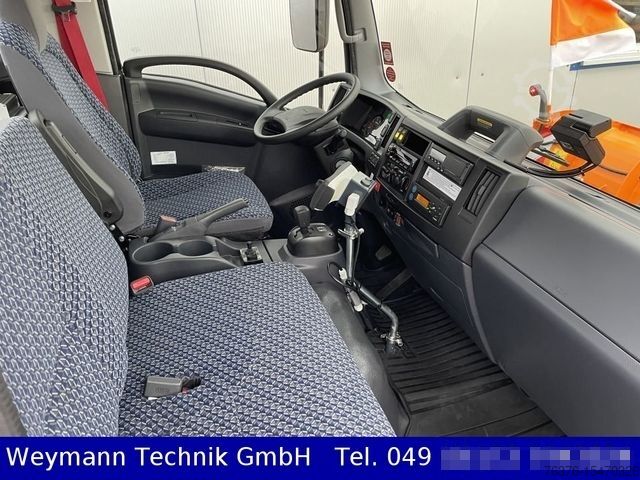

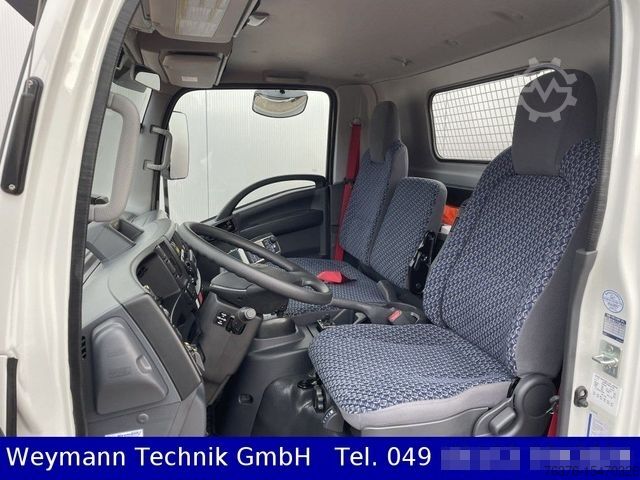

- Suspended driver's seat, passenger double seat, 3-seater
- Electric windows, electrically adjustable and heated exterior mirrors
Pec R Nc Isr Ed D Ajfnjpu
- Electronic immobilizer, central locking with radio remote control
- Radio with Bluetooth hands-free system, digital EG ? Control unit 4.0 (GNNS)
- Fog lights, daytime running lights, light sensor for driving lights
- Driver and passenger airbag, headrests

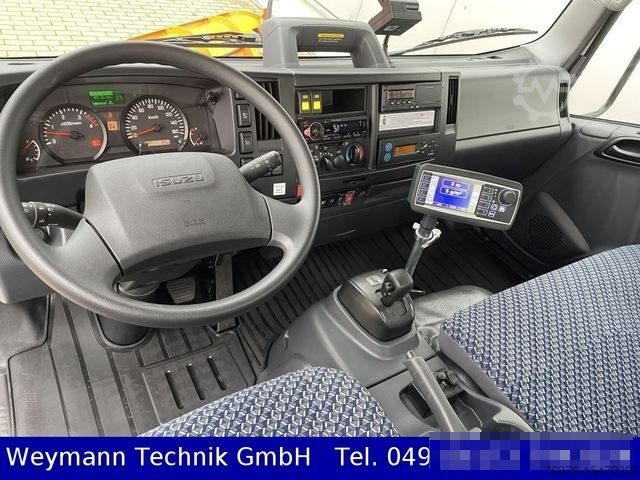

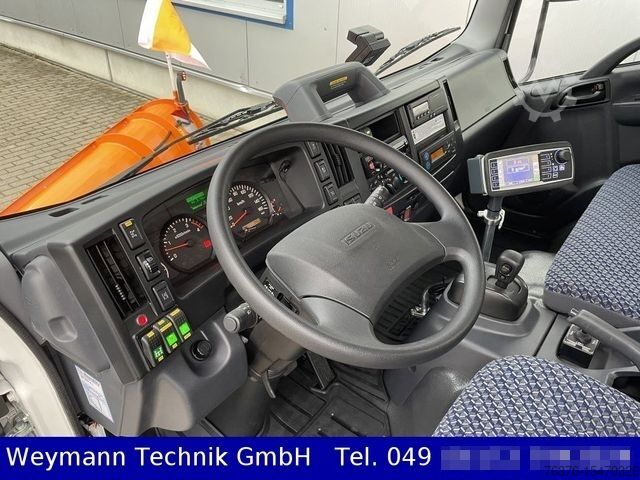

- Height and tilt adjustable steering wheel, interior mirror
- Spare wheel with holder on the vehicle body
Additional equipment:
- Vehicle underbody ? and chassis ? preservation
- Ball head coupling 3.5 t trailer load (max. total train weight 11,000 kg)
- LED work light 1x at the rear on the protective grille
- Additional LED headlights dimmable including flashing lights on the cab end.
- Rotating beacon, telescopic
- Red warning marking ? white

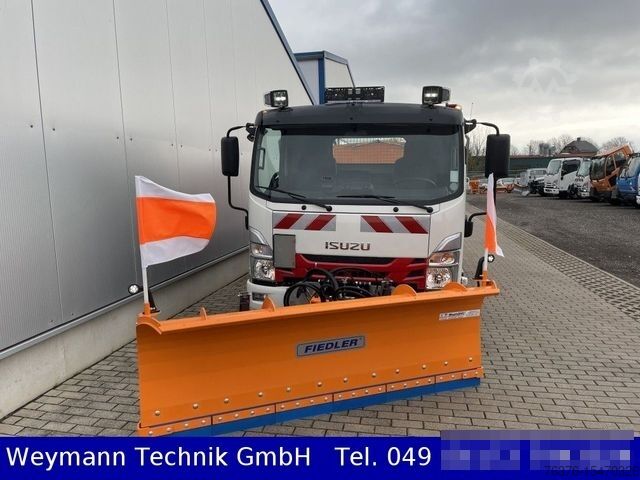

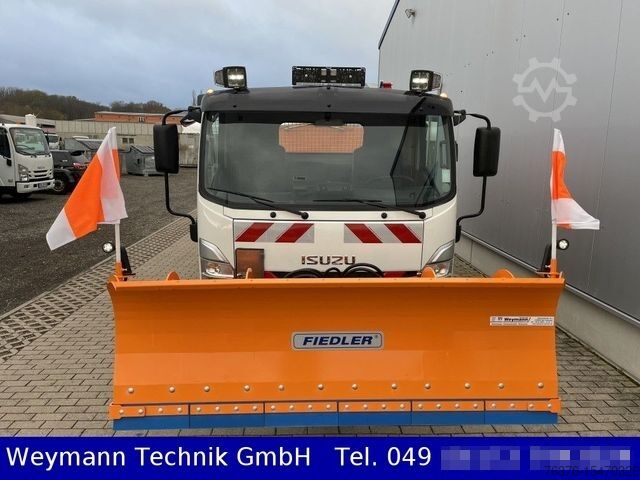

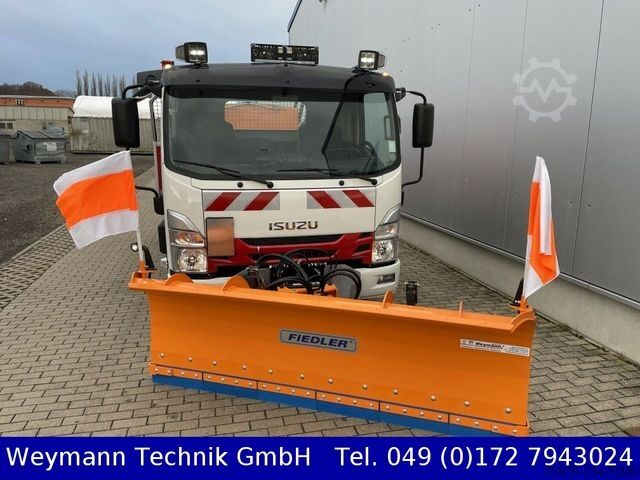

- Engine-connected hydraulic system with 2 double-acting control functions at the front and 1 working circuit at the rear, drive via engine-dependent tandem gear pump, temperature-controlled oil cooler with fan, hydraulic front lifting device FIEDLER with quick-change plate
Vehicle structure:

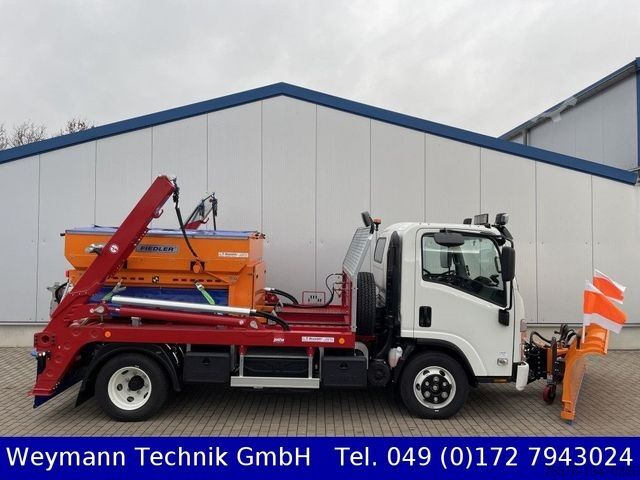

Set-off tipping structure type JOTHA CombiCon 5518
- robust construction and top quality for long-term durability
- Transport and emptying of standard containers of 3 - 10 m³ in accordance with DIN 30720 and JOTHA? Flat container FL 1830
- Lifting capacity 5,500 kg, lifting capacity 800 mm below ground 3,900 kg, lifting capacity telescope extended 3,300 kg
- Color: anthracite
- Swivel device with 2 booms, lower cross shaft and chain suspension
- Telescopic lifting arms can be controlled separately, lifting path 1,000 mm
- Support feet can be controlled individually
- Chain suspension: 8 mm with safety folding hook, length adjustable
- Hydraulic tipping hook
- Control block attached to the front of the body longitudinal beam
- Fast-action valve for lifting arm operation, manual control valves with load sensing s
