Пикап-фургон Fuso 3S15 Alu Pritsche 2.80m Ladekran Funk!

Описание

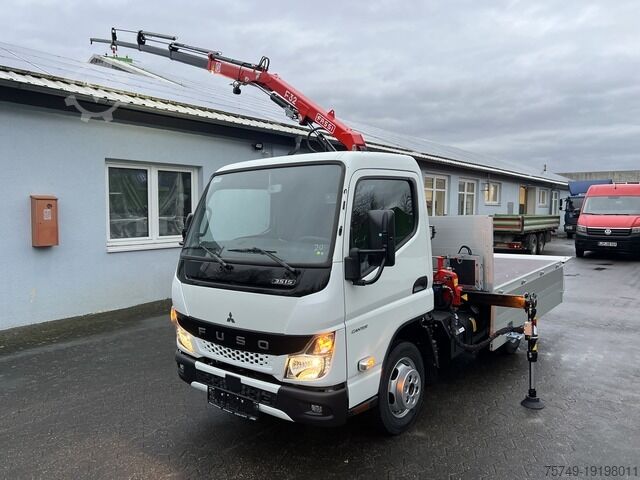

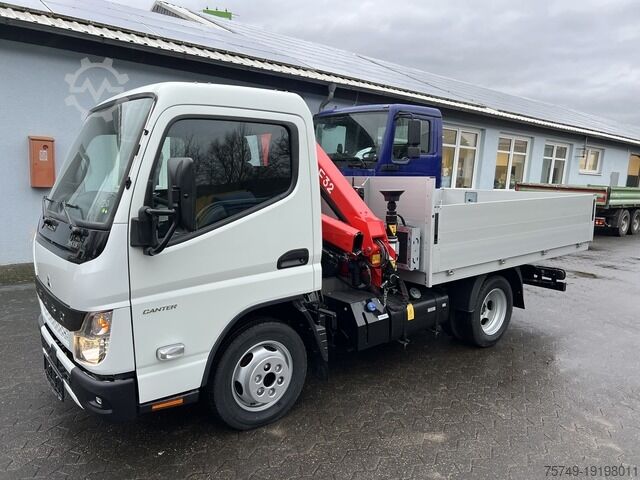

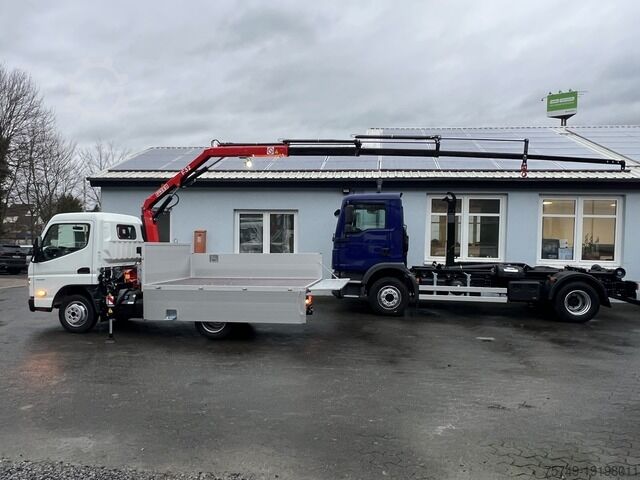

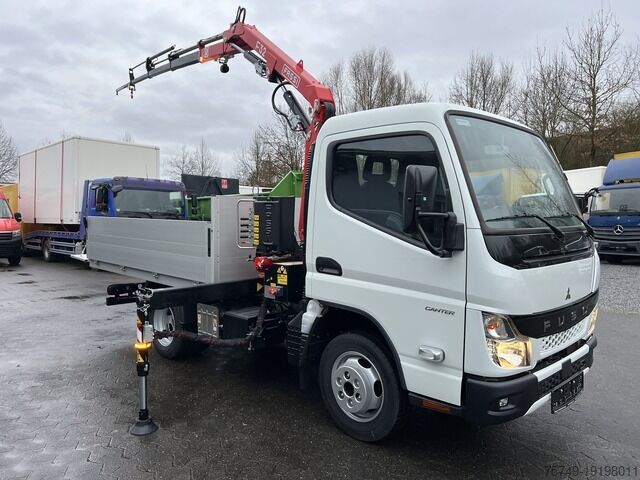

FUSO Canter 3S15 aluminum flatbed with loading crane available from May 2025, the vehicle is for rent with purchase option.
Chassis: Fuso 3S15 Canter
- Total weight 3500kg, payload of finished vehicle with loading crane and aluminum platform approx. 600kg
- Manual transmission
- Differential lock with limited slip
- Batteries 2 x 100 AH
- Trailer coupling ball head 3500kg with electrical kit (factory)
- Heated exterior mirrors
- Automatic air conditioning
- Radio preparation
- Reversing alarm
- Auxiliary drive with speed increase
- Battery cover and AdBlue tank cover
- Preparation for battery isolation relay
- Traction tires Continental 195/75/R16C
- Seat covers

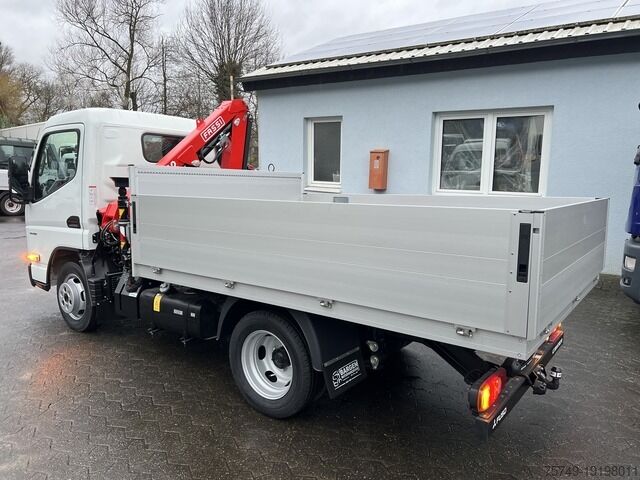

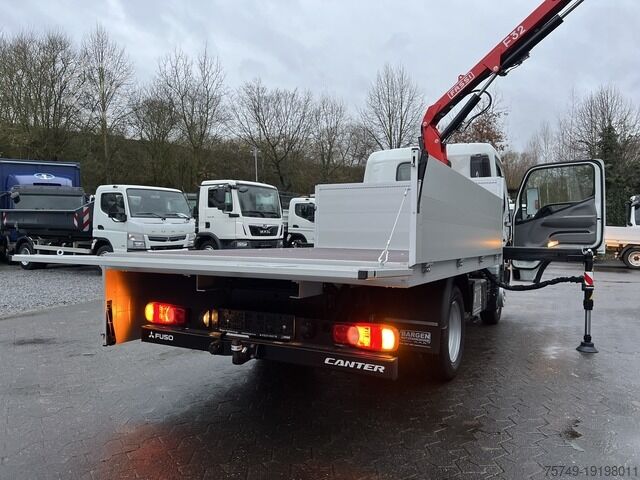

Aluminum platform:
- Inside: 2720mm x W 1820mm x H400mm
- Base plate 18mm
- Floor frame with airline rail all around
- Airline rail also in the front wall
- Side walls anodized aluminum with folding step, easily removable
- Storage box
- Work lights
- Other platform dimensions also possible

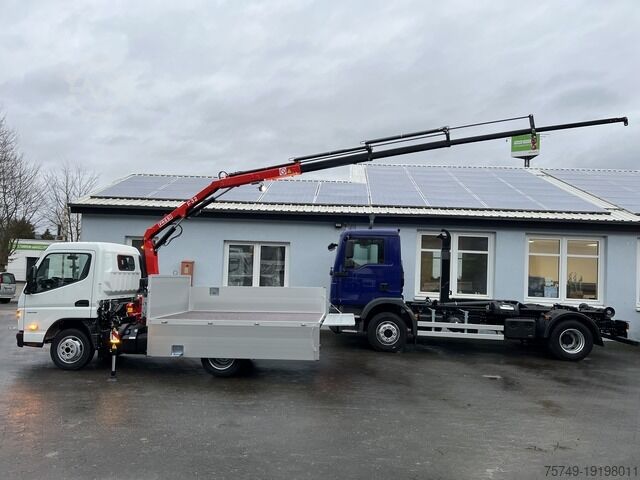

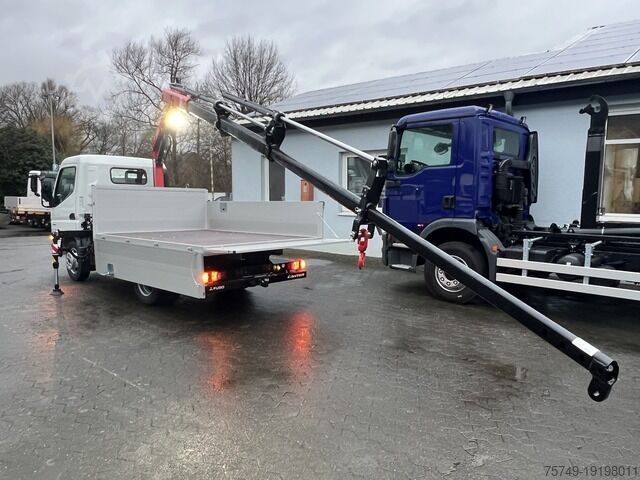

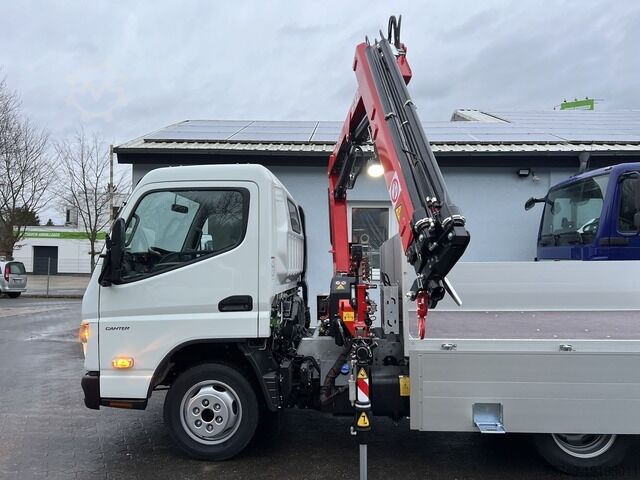

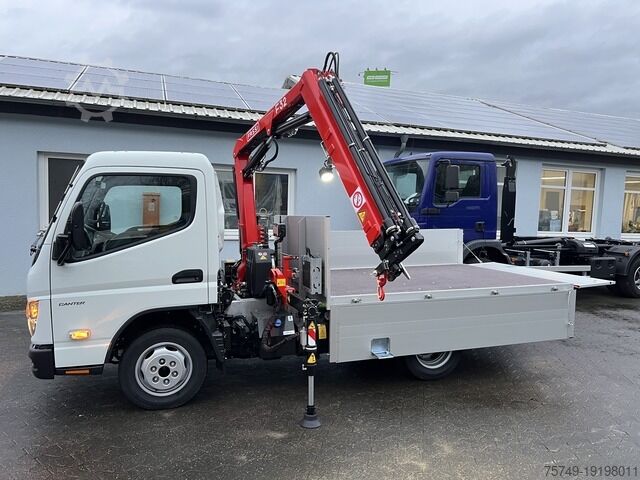

Loading crane: with 3 x hydraulic extensions
(Country of production: Italy)

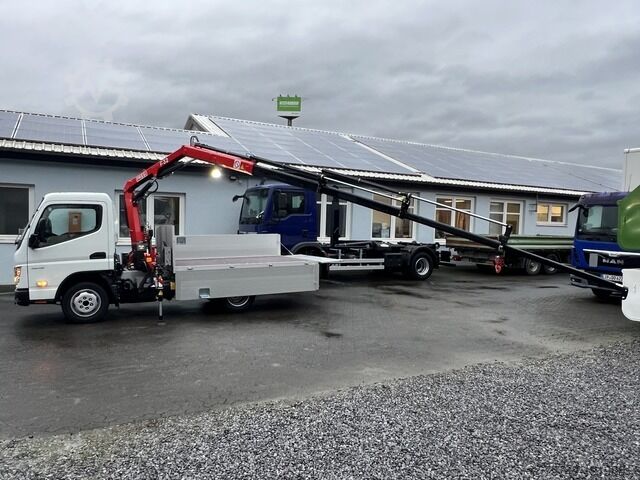

- Lifting capacity according to manufacturer: Max. 995kg 3.2m=815kg, 4.40m=575kg, 5.60m= 400kg, 6.80m= 300kg, 8.05m=220kg
- Design according to CE directive (EN 12999)
- Swivel range 370° (swivel range limitation 190°)
- All hydraulic cylinders double-acting
- Piston rods hard chrome-plated
- Pressure relief and load holding valves
- Emergency stop
- Control block with 5 control valves
- Separate hydraulic tank (33l) with filter, mounted on the crane base
- Support extendable on both sides, special support, support width 3.10m
- Hydraulic Support can be swiveled 30° and 180° - CE, incl. M.O.L.
- Standard color RAL 3020 traffic red - all cylinders painted black
- Load hooks and fastening clamps
- On-board voltage 12V

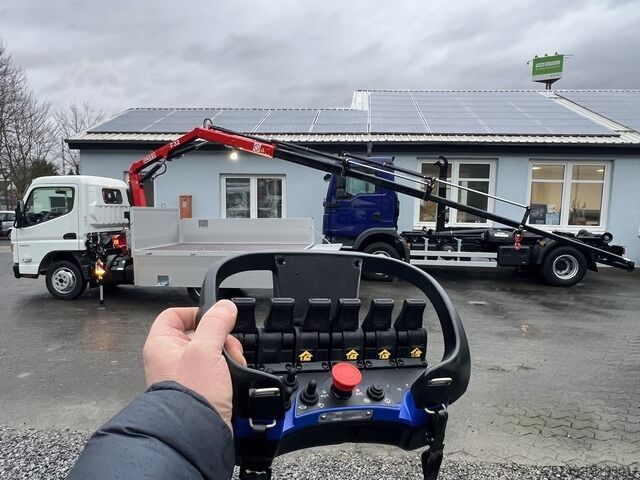

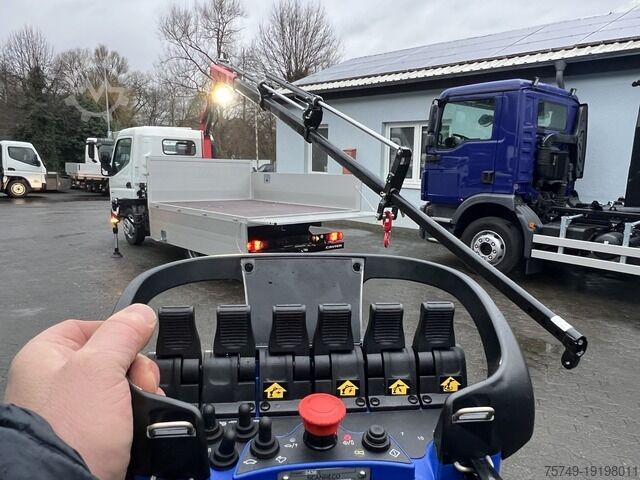

- Scanreco radio remote control 6 functions
Pec Rjwl Rb Ne Nc Ifnegn
- electrical modules for Danfoss S800 control block 4 functions
- Danfoss control block S800, 5 functions including high-pressure filter
- Special support, support width 3.10m 1.00 pcs
- Additional charge for shortened support legs » by 80mm
- Mechanical arm extension N » stroke 1.30 m (7.0k
- Additional charge for stainless steel screws and stainless steel pipe clamps
- Additional charge for Dinitrol application (cavities)
- Zinc primer
- Switch for work lights near the control block factory-mounted
- LED work lights on the articulated arm factory-mounted
- LED for 2 support legs
- Optional: rear view camera with Carplay, spade holder, 90° rope, additional storage box available
Subject to errors and prior sale. ... Air conditioning, climate control, VAT deductible, ABS, electric WFS, central locking with remote control, trailer coupling, power steering, spare wheel, driver's cab: local transport, crane, new, emissions class: Euro 6, diesel, rear-wheel drive, very good condition, hydraulics, consumption: 0.0/0.0/0.0 l/100 km (combined/inside/outside), particle filter, can be rented, fine dust sticker: 4 - green
