Фургон для перевозки напитков Orten ORTEN ET 35 mit Rollladenaufbau 1,2 to NL

Описание

* CityRollup superstructure
* All-aluminum body with Segemental roller doors

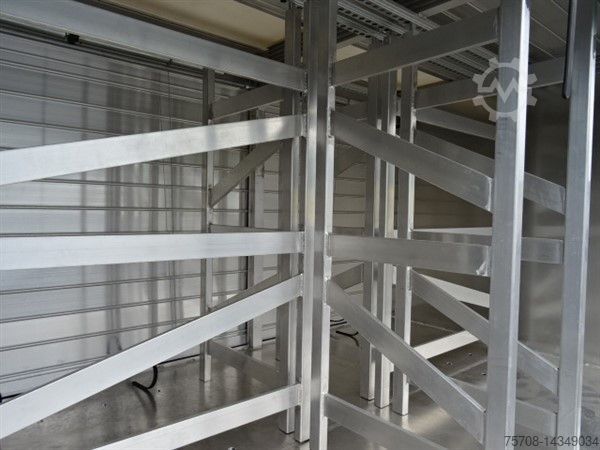

* 2 compartments à 2,057 mm + 2 compartments à 1,320 mm
* Dekra certified according to VDI 2700 ff and DIN EN 12642 XL
* Range approx. 200 km
* Lithium iron phosphate battery
* Battery capacity 80 kWh 400 V
* Leaf spring

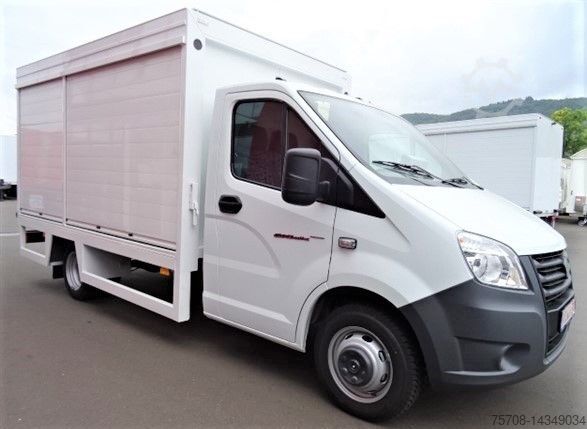

ORTEN Electric-Trucks E 35 with roller shutter body:
Pricing taking into account the subsidies
Technical data chassis:
Manufacturer: ORTEN
Vehicle class: N2
GVW: 4,250 kg (driving license class B)
Unladen weight: 2,295 kg
Wheelbase: 3,745 mm
Tires: 185/75 R 16C
Equipment:

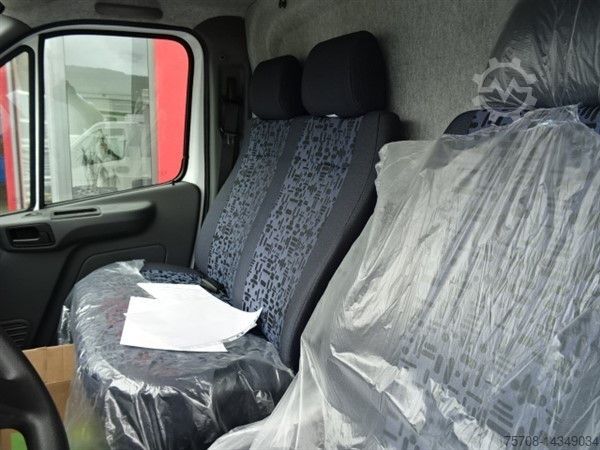

Seats 1+2
* Gear ratio rear axle i = 4.1
* Stabilizer rear axle
* Front disc brakes
* Rear drum brakes
* Airbag driver
* Fog lights
* Heat-insulating glass

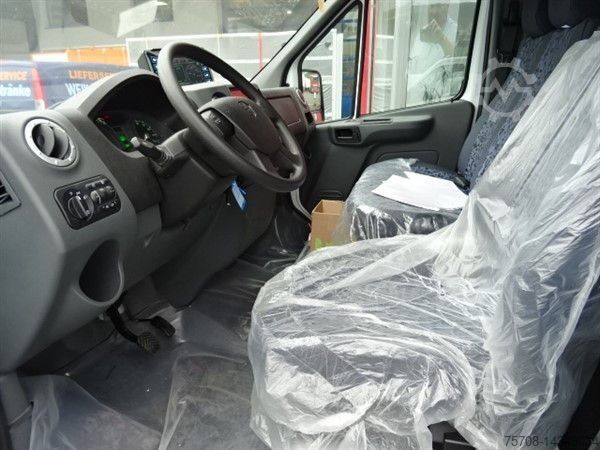

* Luxury driver's seat
* Central locking
* Electrically adjustable exterior mirrors
* Storage compartments left and right front doors
* Multimedia 2DIN with USB connection
* Hands-free system
* ABS
* Summer tires
* Spare wheel, supplied loose
* Wheel chock with bracket (vehicle class N2)
* Cab color similar to signal white RAL 9003
* Chassis color graphite black
* Wheel rims color silver
* Warning triangle
* First aid kit
* Hazard warning lights
* Operating instructions
Technical data of the conversion:
* Maximum speed: 85km/h
* Range: approx. 200km
* Battery: Lithium iron phosphate (LFP) Nickel and cobalt free
* Battery capacity: 80kWh, 400V / DC
* Charging plug: Type 2 Mode 3 / AC / IEC 62196
* Charging time: approx. 3.5 hours at 400 Volt / 22kW AC
* Electric motor: Synchronous electric motor, water-cooled
* Motor power: 70kW / Peak 92 kW
* Torque: 410Nm / Peak 730Nm
Technical equipment:
Regenerative braking power
Pgscoqz R Dmj R Nc Ifnen
* 22kW On Board Charger AC
* DC/DC on-board power converter
* Electric power steering assistance
* BMS- CAN-BUS-controlled charging technology
* Electric 5kW HV cab heater

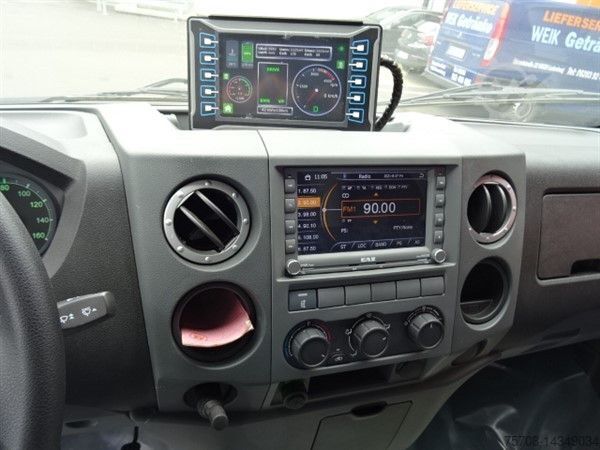

* Color display, shows all relevant battery, BMS, engine and control data
* Diagnostic menu for engine control and BMS integrated in the information display
* Diagnostic menu for battery cell monitoring integrated in the information display
* Stainless steel construction elements
* HV 400 Volt / DC battery heating system (only in charging mode)
* Vehicle approval § 13 EG-FGV / ECE R100

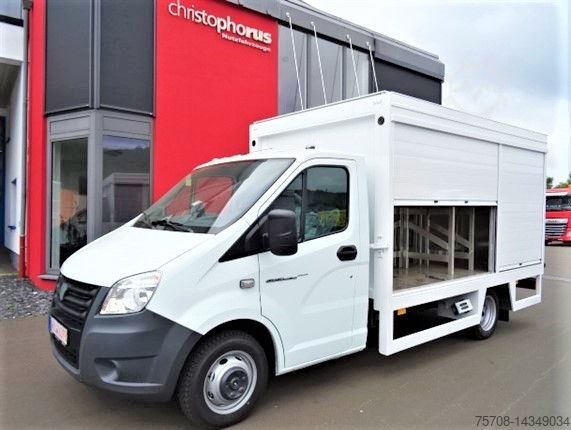

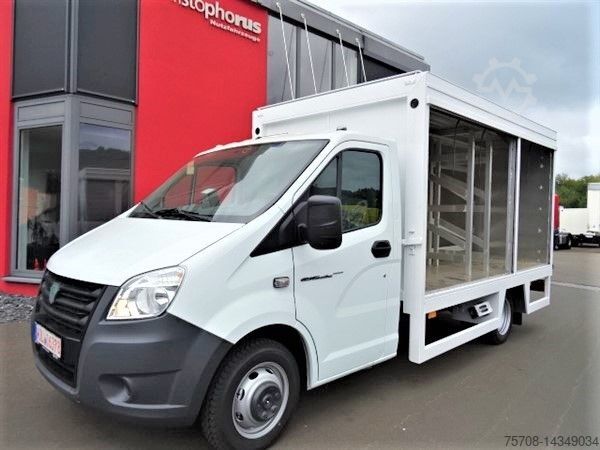

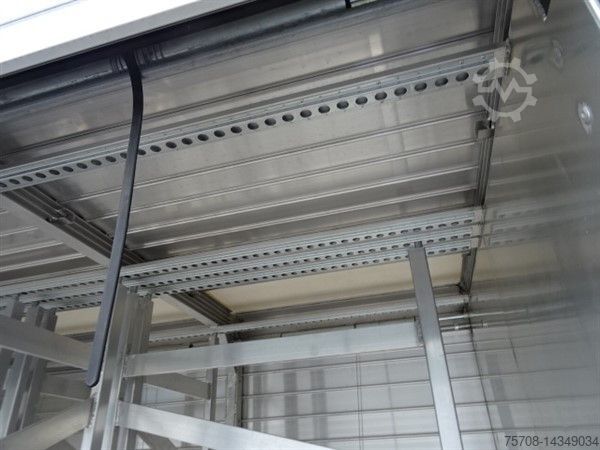

ORTEN City Rollup body
Assembly dimensions:
Total length: approx. 3,600 mm Floor inclination: 0 mm
Total height: approx. 2,360 mm Width of the bay: front 2057 / rear 1320 mm
Total width: approx. 2,200 mm Height of the bay: 1575 mm

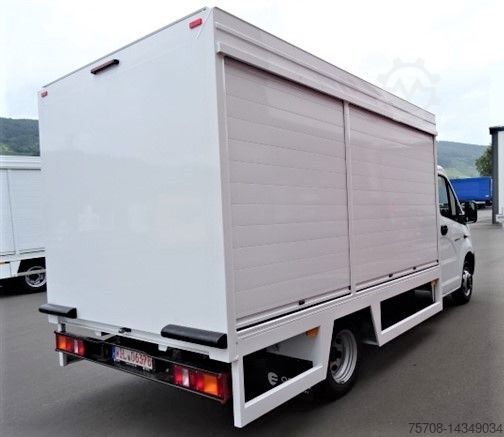

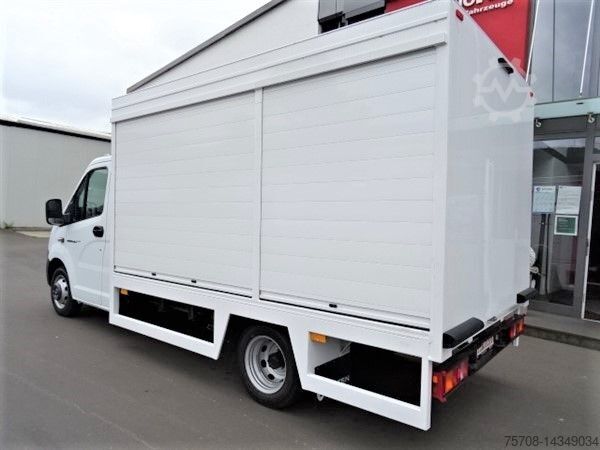

Aluminum roller doors:

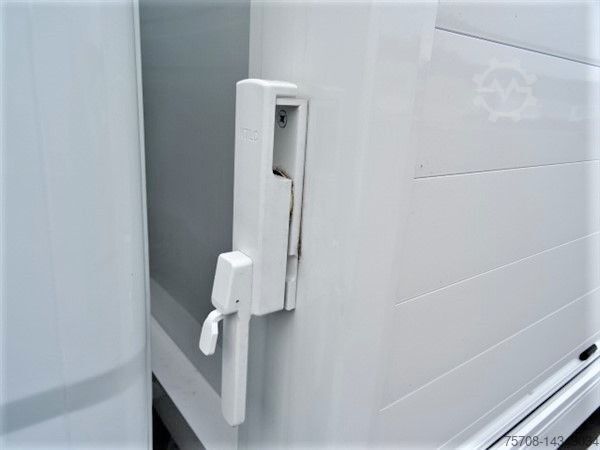

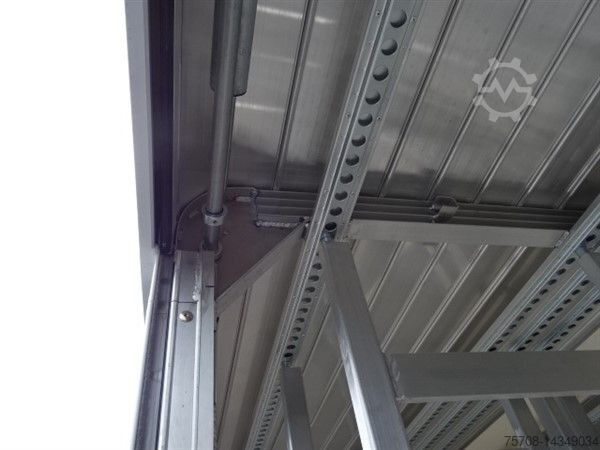

Roll-up with spring support. Rubber band for pulling down the roller doors. In the closed position, the doors are secured centrally by a locking handle, which is mounted on both sides of the front wall and can be locked with a padlock.

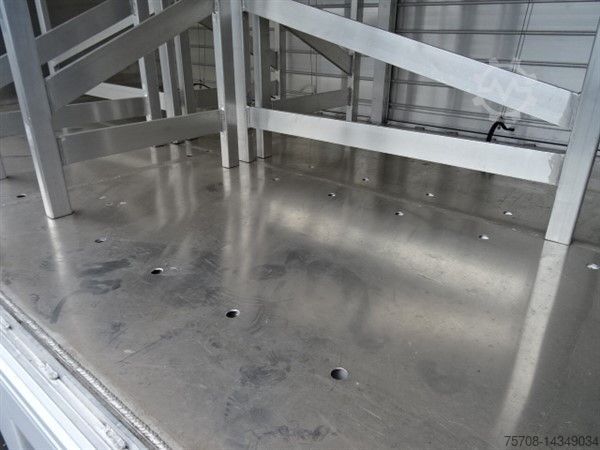

Pallet stop:

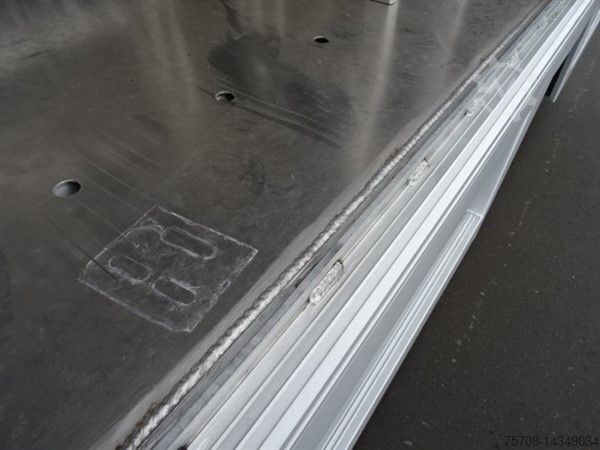

Pallet stop approx. 20 mm on the outer edge of each bay, welded to prevent goods from sliding against the door
Underride guard:
Original chassis underride guard is used
Rear wall:
Fixed rear wall. Double-walled with aluminum planking with smooth surface.
Paintwork:
Body painted on the outside in RAL ? color. Lettering can be applied as specified at an extra charge

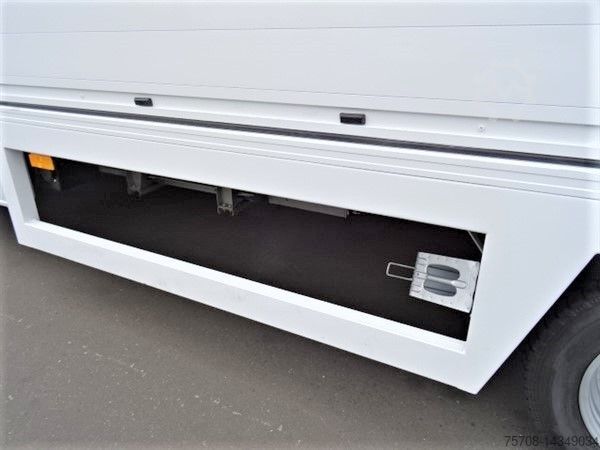

Side steps:
The side underride guard is formed by steps with an anti-slip surface for the driver. Steps along the bodywork on both sides of the vehicle, between the axles and behind the rear
