Грузовой автомобиль большой грузоподъёмности MAN MAN 8x4 Hydro mit F1150 inkl Jib und Winde Korb

Описание

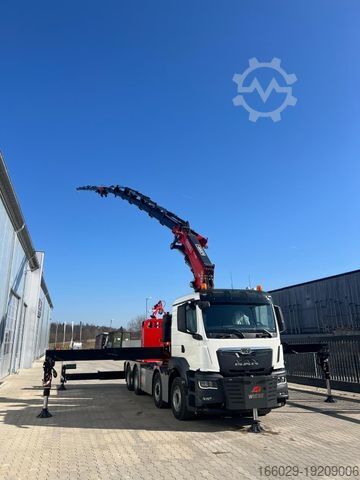

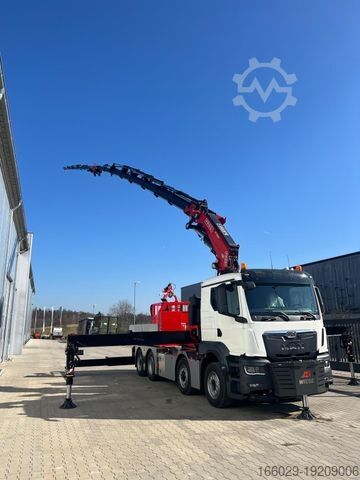

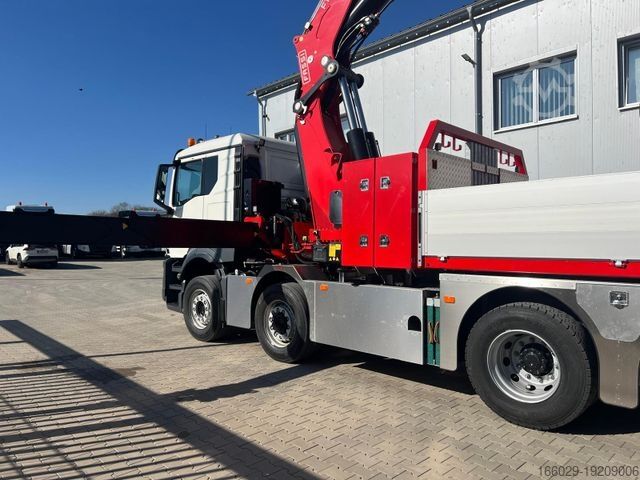

MAN 8x4 Hydrodrive with a Fassi F1150 loading crane
Vehicle description for: TGS 35.520 8x2H-6 BL CH

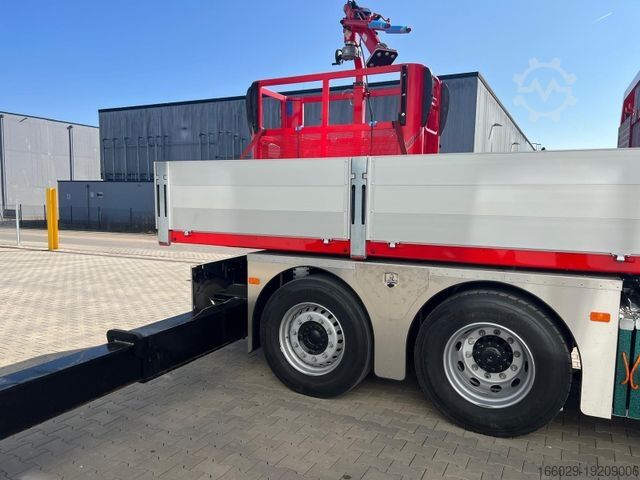

Removable flatbed, Jost fifth wheel coupling, fully enclosed V2A steel
Truck tonnage 35 t
2,980 mm main wheelbase
1,795 mm wheelbase between front axles
1,350 mm wheelbase between rear axle and trailing axle
Exhaust silencer, side, right
Exhaust outlet, floor
2 batteries, 12V, 210 Ah, Super Longlife (AGM), maintenance-free, for increased electrical requirements
390 l fuel tank capacity, left
35 l AdBlue tank capacity, right
Air compressor, 1 cylinder, 360 cc, with economy system
Compressed air treatment, pneumatically controlled
Compressed air reservoir, steel
Electronic Braking System (EBS)
Anti-lock braking system (ABS)
Full brake assist
Disc brakes on front axle
Poc R Ncewmh Hrj Ifnegn
Disc brakes on 2nd front axle
Disc brakes on rear axle
Disc brakes on trailing axle
Emergency brake signal, hazard warning lights activated
Side marker lights, LED
MAN D2676 LFAX diesel engine, 382 kW (520 hp), 2,650 Nm torque, Euro 6e
Heated fuel filter for fuels up to purity class 25
Heated fuel pre-filter with oil/water separator and water sensor (mixing valve)
F1150RA.2.28 L616 winch + 2-person basket
Endless swivel range
All hydraulic cylinders double-acting
Hard chrome-plated piston rods
Double toggle lever system with PROLINK (overextendable articulated boom up to 12°)
Electronic overload cut-off device with FX900
FASSI stability control FSC including LMB II
Emergency shutdown and visual alarm (90% and 100%)
Pressure relief and load holding valves
XF system (Extra Fast) + XP system (Extra Power) + FL system (Full Lift)
RCH or RCS FASSI radio remote control with linear levers and display of the
pressure values (in bar and %) and 90% + 100% warning on the display
Danfoss D900 control block with 4 control valves mounted on the crane column
Emergency control for crane control
High-pressure filter supplied with pipes
Separate hydraulic tank (260 l) with filter and oil cooler mounted on the crane base

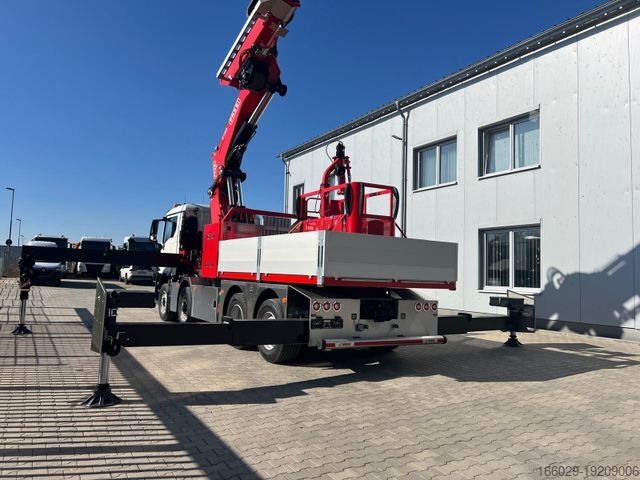

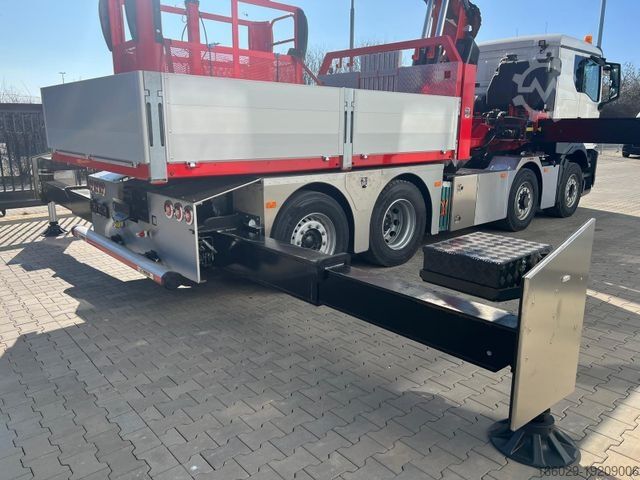

Hydraulic outriggers, hydraulically mounted on both sides Extendable, outrigger width 8.84 m
Outriggers can be remotely controlled with a proportional control block
IMC (Integral Machine Control) and ADC (Automatic Dynamic Control) = load-dependent speed control
Standard color: RAL 3020 traffic red - all cylinders painted black
Load hook and mounting brackets (short / 500 mm)
Travel position: folded across the direction of travel
Caution: Observe the on-board voltage / 12 V or 24 V, standard 24 V
FASSI Stability Control FSC-S/II 1
IE742 connection box
Low-profile foundation
180° hydraulic Pivoting outriggers / » on both sides
Control system for additional function » cable winch / xhe-dynamic
Control system for 2 additional functions with » 2 hose guides /
xhe-dynamic
Prepared for operation with variable displacement pump » (LS)
Work light operated via display » (1 black and white function)
1 LED work light on the articulated boom » mounted
LED for 2 outriggers, not mounted » (crane)
LED for 2 outriggers, not mounted » (additional outrigger support)
GR.15 electric rotary distributor with 15 » sliding contacts
FUNK-V7-RCS
V7 RCS radio remote control
Fassi V7S radio remote control:
Available with 6 or 8 functions with linear levers or joysticks.
V7S with 4.3" color display / 24-bit - 480 x 272 px, with 8 push buttons
Motor start/stop, speed +/-, 6 x ON/OFF functions, 10m cable, and various working speed controls, including second battery, charger, neck and waist belt
