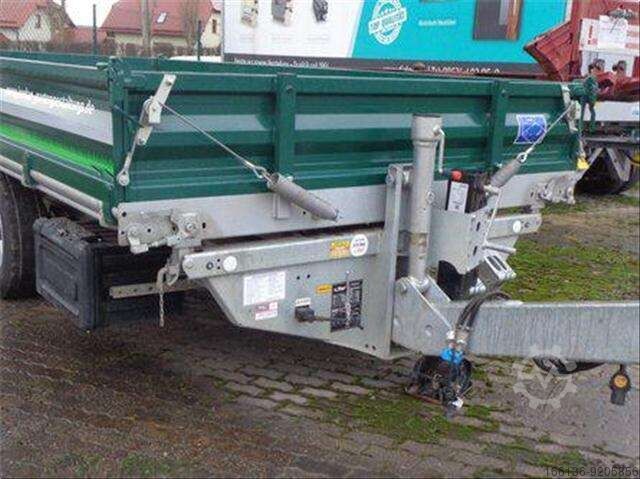

Самосвал Fliegl TSK 118 5,0 m

Описание

Further information
Welded steel construction, continuous tilting shaft at the rear with 80 mm ball tilting bearing, gear support foot at the front, folding rear support, wheel chocks with holder, steel underride guard, rear spray flaps across the entire width (not in conjunction with forklift bracket), quarter-shell mudguards, spare wheel, same make as basic tires, steel rim, loose, plastic tool box, with shelf, w=620/h=360/t=440 mm, lockable with a padlock. (lock not included in scope of delivery)Note! Dropside touches storage box when folded down, lockable storage space for access ramps underneath the loading area, pair of aluminum ramps 3,000 mm long, 360 mm wide, load capacity per pair 8,000 kg, (suspension bar for ramps at the rear)
Drawbar with tested 40 mm towing eye, height-adjustable drawbar via spindle, max. adjustment range 300 mm
BPW drum brake axles, laser-measured axle/chassis Reduction in tire wear and fuel consumption, parabolic suspension with maintenance-free steel/rubber bearings and mechanical axle load compensation (rocker compensation)
2-line compressed air brake systemColor-coded cable routing for easy servicing, hand spindle parking brake
Integral air reservoir, ABS and ALB, with ABS plug at the front, with connecting cable, Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS, Duomatic connection at the front, with connecting cable to the motor vehicle
24 volt, multi-chamber lights, amber LED lighting at the side, 2 white position lights at the front, 2 white/red lane departure lights at the rear, 1 x 15-pin plug at the front, with connecting cable
Three-way tipping mechanism, hydraulic multi-piston press with lift limiter and safety cable, low-pressure cylinder up to max. 170 bar, without throttle. If required, this can be retrofitted to the truck, hydraulic connection with SVK plug NW 10/3, incl. connecting hose, hydraulic actuation via truck power take-off
Psc R Nc Iok E Tdasfnogn
Sturdy tipper body with 4 mm sheet steel floor, steel side wall structure, continuous side walls, hinged and pivoting with central locking at the bottom. Rear corner stanchions pluggable. Rear wall can be folded down and pivoted, with central locking at the bottom, platform length approx. 5,000 mm, side walls with 6 hinges at the bottom.
Dropside retraction springs (not possible with split side walls), platform width 2420 mm, pair of lashing eyes in the floor, 5 tons each.
Operating instructions: The specified total weight is technically possible; depending on the load, the total weight may not be reached if the permissible axle/support and fifth-wheel loads are observed. (Poor driving and castering behavior possible due to incorrect load distribution)
Country of registration: Germany, with Dekra approval and expert opinion (according to §13 EG - FGV), 24/7 service hotline, prepared for single-line license plate holder, contour marking with reflective strips according to ECE R 048, white at the sides and red at the rear
