Самосвал
Самосвал Fliegl EDK 60
Состояние
новое
Отправить сообщение
Описание
Further information
Chassis central axle tipper trailer
Welded steel construction
Heavy-duty front support wheel, folding
Wheel chocks with holder
Steel underride guard
Quarter-shell mudguards
Towing device central axle trailer
Rigid drawbar for top hitching, 40 mm towing eye
Height-adjustable drawbar via spindle, max. adjustment range 300 mm
Axles + suspension
Rigid
Axle/chassis laser-measured Reduction in tire wear and fuel consumption
Parabolic suspension with maintenance-free steel-rubber bearings and mechanical axle load compensation (rocker compensation)

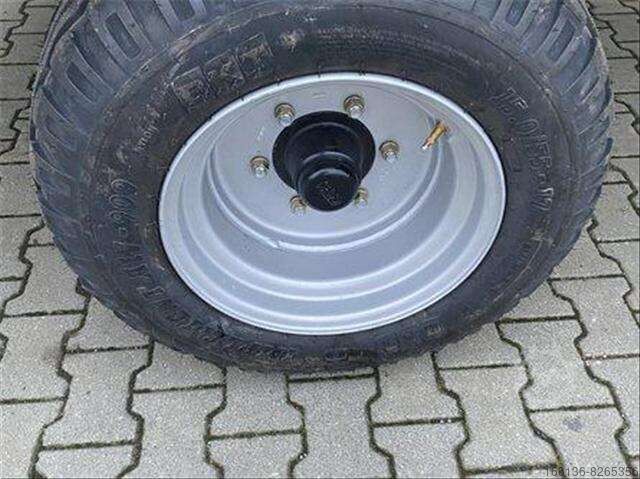

Wheels and tires
15 PR
manufacturer's choice
Factory silver steel rims
Brake system
Overrun brake - Rückmatik
Release valve
Pgoc Rsi Riypo Nc Ifnon
Integral air reservoir
2 swap-proof coupling heads at the front, with connecting cables to the motor vehicle,
ABS and ALB, with ABS plug at the front, with connecting cable
Electrical system
12 volt, 2 five-chamber lights, without lighting carrier with impact-resistant glass
2 white position lights at the front
2 white/red lane departure lights at the rear
7-pin plug
Hydraulics
3-stage tilt cylinder
Limit switch
Hydraulic connection with SVK plug NW 10/3, incl. connecting hose
Hydraulic actuation via truck power take-off
Tipper bodies
Sturdy tipper body, steel side wall structure, continuous side walls, hinged and pendulum-mounted
Platform length approx. 4,000 mm, side walls with 5 hinges at the bottom.
Platform width 2020 mm
4 pairs of lashing eyes in the floor, 2.5 tons each
Country of approval / plates
Country of registration: Germany
with Dekra approval and certificate (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paintwork
Hot-dip galvanized frame incl. passivation15-year warranty against rusting through
Dropside/bridge RAL 6005 moss green
Характеристики
Общий вес
6 кг
Собственный вес
1 кг
Максимальная грузоподъёмность
4 кг
Конфигурация осей
1 ось
Размер шины
15.0/55-17 10 pr
