Описание

You will find our entire vehicle inventory with immediately and soon-available vehicles on our website.

Excerpt from the specifications. Full equipment details available upon request.

Chassis:
* Steel welded construction made of welded longitudinal beams and punched-through Z cross members, close cross member spacing for high floor load capacity

Ramp Storage:

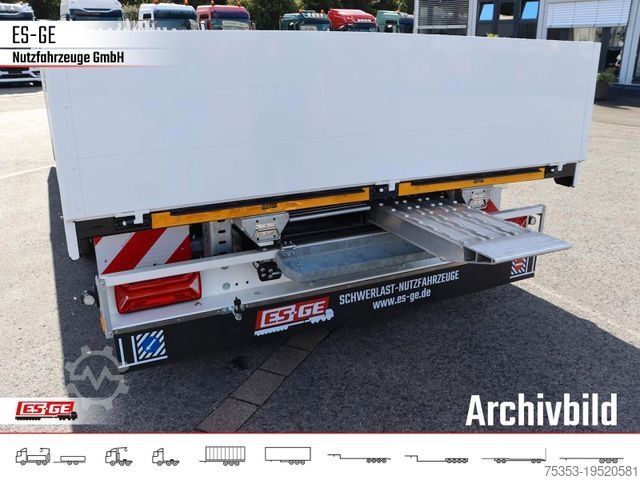

* Between the longitudinal beams, behind the axle assembly, below the loading floor, two insertion slots for one drive-on ramp each, with locking plate in the rear header

Underrun Protection:
* According to EC regulations

Front Landing Gear:
* Landing gear with single-sided operation

Rear Supports:
* Two adjustable drop-down supports

Axles:
* 2 x 10 t air suspension axle assembly, manufacturer SAF
* Disc brake approx. 370 x 45 mm
* 8-hole central wheel mount for twin tires
* ABS
* Total air suspension travel approx. 310 mm (lift approx. 250 mm, lower approx. 60 mm), controlled via hand lever with detent function

Tyres:
* 8 units, 265/55R 19.5 – Goodyear brand, on steel rims 8.25 x 19.5

Splash Guards:
* Made of PVC in front of and behind the axles according to EC regulations

Load Securing:
Dec Edswx Dcgo Ddcewb
* On the outer frame approx. every 150 mm a hole for lashing straps, tensile force approx. 2.5 t (lashing straps can be attached with closed side walls, beveled outer frame)
* 6 pairs of folding lashing rings evenly distributed, tensile force approx. 8 t

Stake Pockets for insertable posts 80/50:
* 3 pairs of stake pockets on the outer frame, evenly distributed

Brake System:
* Pneumatic brake system according to EC with EBS
* Two spiral hoses for connection to the truck with red/yellow coupling head
* Spring-actuated parking brake acting on one axle

Floor:
* Approx. 28 mm Z-hardwood floor recessed into the outer frame
* Front wall made from 25 mm removable side board

Lighting System:
* Lighting system according to EC, 24 Volt
* Multi-chamber rear lights
* License plate lights
* Side marker lights and position lights at the rear

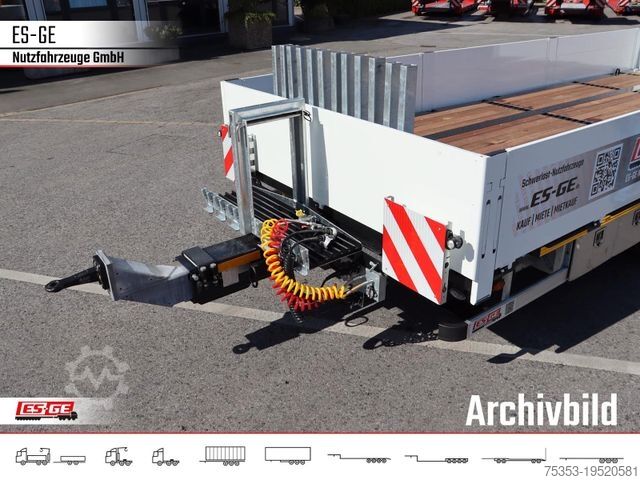

* Terminal strip on the drawbar including connecting cable with 15-pin and 2 x 7-pin plugs
* Detachable beacon at the rear

Paintwork:
* Chassis: Hot-dip galvanized + RAL 9011 graphite black
* Side walls and wall posts: RAL 9016 traffic white
* Hubs: KTL black
* Underrun protection: RAL 9010 pure white
* Rims: RAL 9006 silver
* Attachments: galvanized / KTL black

Accessories:

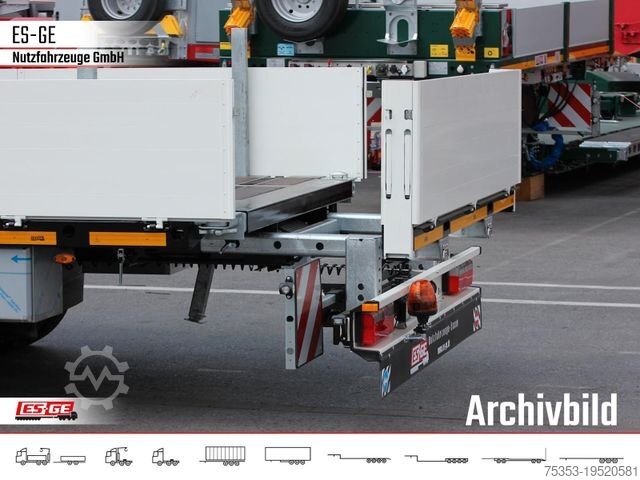

* Extendable rear section by approx. 800 mm as a sliding loading platform, load capacity approx. 2 t, locking approx. every 200 mm, incl. underrun protection
* Mechanically adjustable drawbar in length, six steps of approx. 100 mm each, with screwed towing eye approx. 50 mm to DIN 74053
* 4 rows of stake pockets across loading area, evenly distributed
* 12 insertable stakes made from galvanized tube, approx. 80/50/4 mm, approx. 1,000 mm long

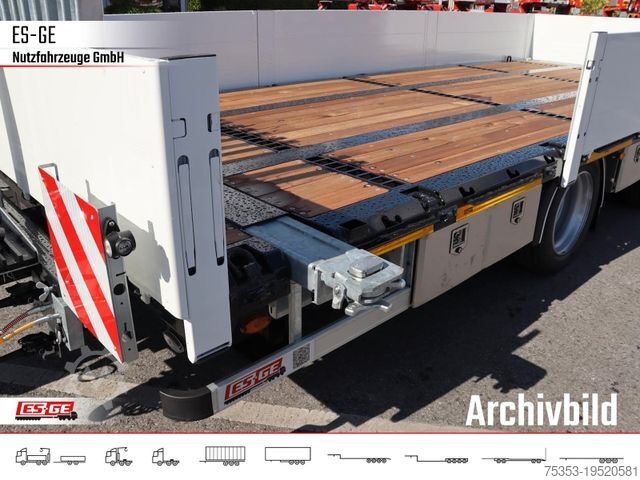

* Container locks for 1 x 20′ container, extendable to approx. 2,820 mm, to ISO 1496, EN 284, or EN 452

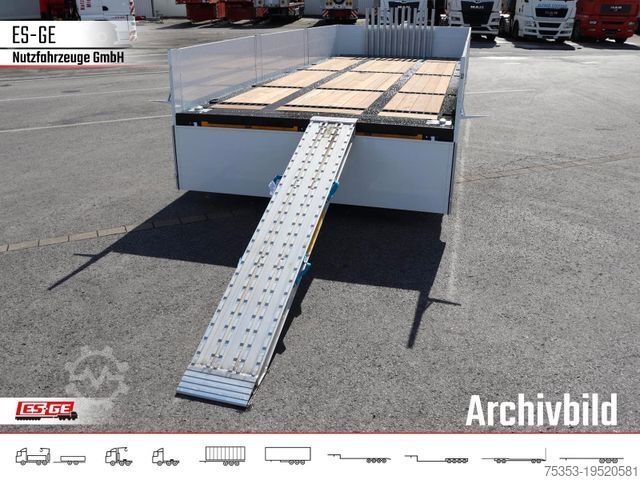

* 1 pair aluminium drive-on ramps, load capacity per pair approx. 9,000 kg
* 4 stainless steel toolboxes between and behind the axles

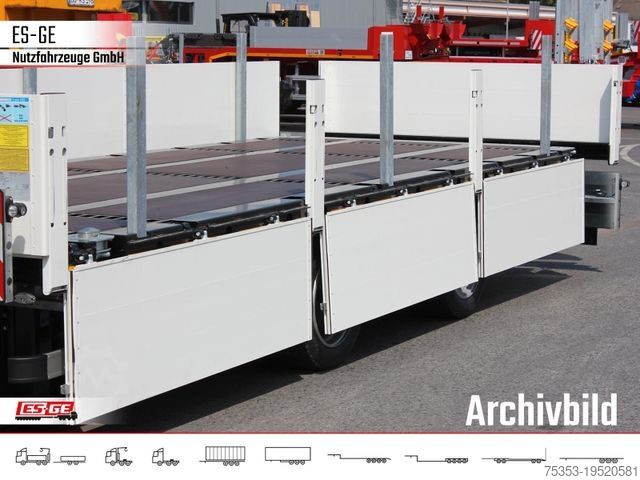

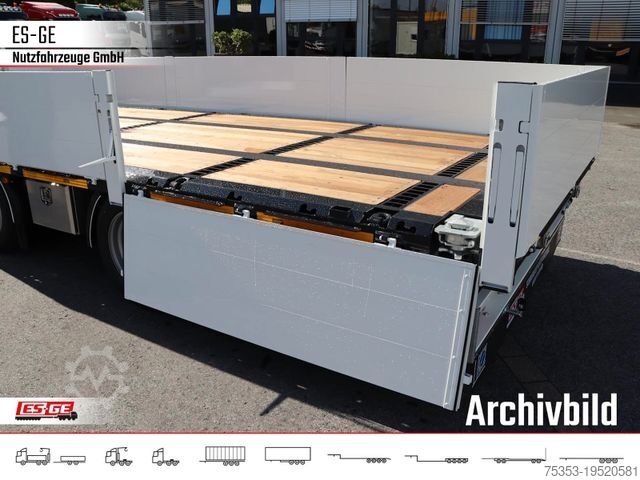

* 6 x 25 mm side walls and rear wall made from anodized aluminum hollow profiles, approx. 600 mm high, folding and detachable, removable Kinnegrip posts (internal width approx. 2,480 mm), incl. side wall magazine at the front bulkhead
* 2 wheel chocks with holder
* Delivery of an additional 40 mm coupling device (GVW max. 13,500 kg)
