Прицеп Schlittenanhänger 20 S

Описание

Sled Trailer 20 S
Dimensions and Weights
External length approx. 7,055 mm
Overall width approx. 2,500 mm
Ride height when loaded approx. 1,150 mm
Rollway length approx. 6,890 mm
Wheelbase 5,240 mm
Complete empty weight approx. 3,460 kg
Technically possible total weight approx. 20,000 kg
Permissible total weight approx. 18,000 kg
Payload approx. 14,540 kg
For containers with a length of 5,000 to 7,000 mm according to DIN 30722.
Technical specifications subject to change.

Chassis
Chassis construction made of welded I-beams in QSTE steel
4 container locks and top carriage lock pneumatically operated.

Side Closed protective device in accordance with Directive 89/297/EEC. (Item 2)
Spare wheel holder in basket design for 2 spare wheels including mounting kit for 1.

Bogie
Bogie 980 FM including ball-bearing turntable 90/1100/22 (low-maintenance).

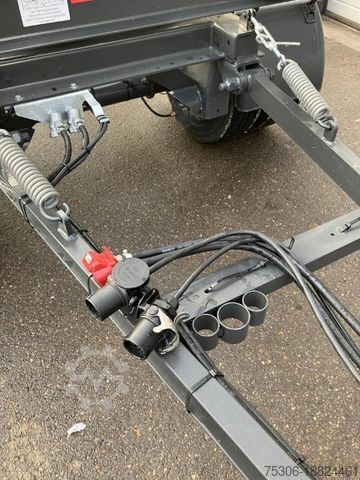

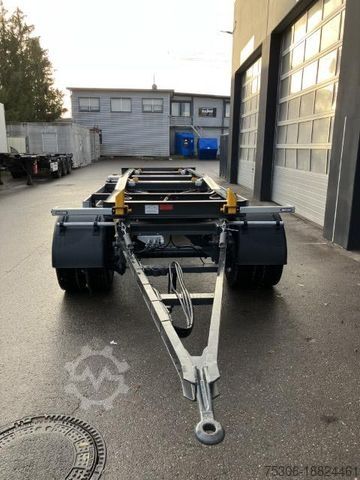

Drawbar
Drawbar 2600/980/100/30 inclined drawbar eye with height adjustment (tension spring with turnbuckle).
Drawbar with DIN drawbar eye, inner diameter 40mm, outer diameter 110mm, thickness 30mm.

Axles
2 x 10 t axles for 19.5 disc brakes, manufacturer's choice.

Drawbar Brake disc diameter approx. 370mm, wheel mounting by centering according to DIN 74 361 Part 3.

Brake system:
Compressed air brake system according to EU directive with Duomatik coupling head.
Conventional air suspension system,
EBS type 4S/3M, electronic braking system with ROLL Stability, double-diaphragm spring-loaded cylinder on the rear axle, release valve for separate release of the spring-loaded brake.

Lighting system
24-volt full LED lighting system in accordance with Directive 76/756/EEC with multi-chamber light and license plate light integrated into the light panel, manufacturer's choice.
1 x 15-pin connector
6 LED side marker reflectors, flashing
2 white LED front marker lights
2 LED rear lane departure lights, separately mounted
1 LED reversing light

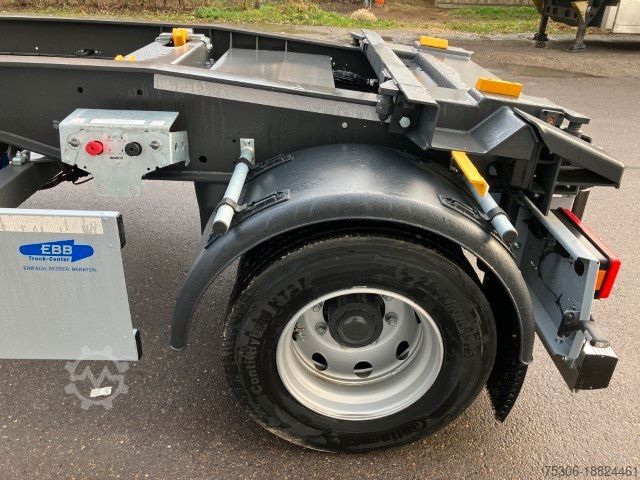

Wheels/Tires
Dwjc Ejv Ttkqod Ddcsb
Regional transport tires, manufacturer's choice: 8-piece 265/70R19.5 (7.5x19.5) steel wheels, offset 138, unpainted wheel nuts. Includes tire pressure monitoring.

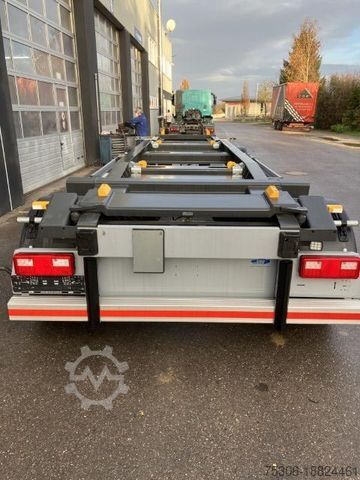

Underrun protection
Aluminum underrun protection. Two vertical delta bumper profiles serve to protect the rear during loading and unloading.

Accessories
4 plastic half-shell fenders, front and rear, single-wheel fenders
4 anti-spray mud flaps, neutral
1 lockable plastic toolbox
1 wheel chock with bracket
1 license plate holder
1 A-sign for transporting waste materials
1 hanging net box (item 3)
2 container guides
3 small EBB stickers (item 4)
