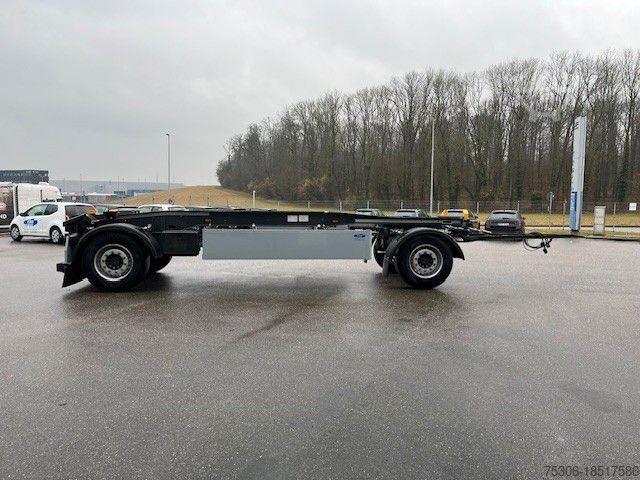

Прицеп Schlittenanhänger 18 S

Описание

Dimensions and Weights
External length approx. 7,055 mm
Overall width approx. 2,500 mm
Loaded ride height approx. 1,285 mm
Rollway length approx. 6,890 mm
Wheelbase 5,240 mm
Complete empty weight approx. 3,400 kg
Gross weight approx. 18,000 kg
Payload approx. 14,600 kg
For containers with a length of 5,000 to 7,000 mm according to DIN 30722.

Chassis
Chassis construction made of welded I-beams in QSTE steel.

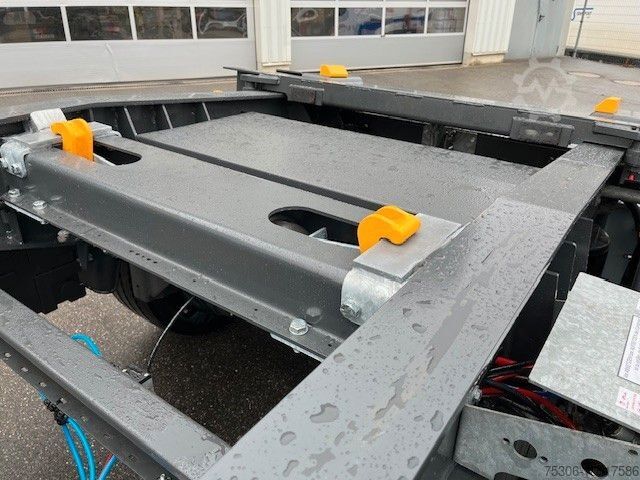

4 container locks and top slide lock are pneumatically operated.

Side guards closed according to Directive 89/297/EEC. (Item 2)
Spare wheel holder in basket design for 2 spare wheels including mounting kit for 1.

Bogie
Bogie 1300 FM including ball-bearing turntable 90/1300/22 (low-maintenance).

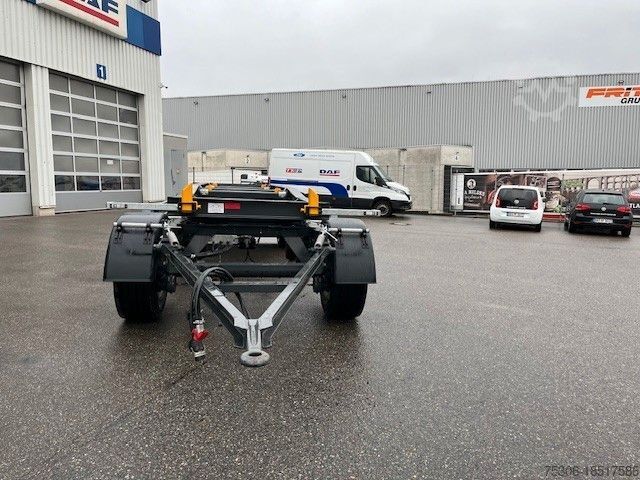

Drawbar
Drawbar 2600/1300/100/30 with height adjustment (tension spring with turnbuckle)

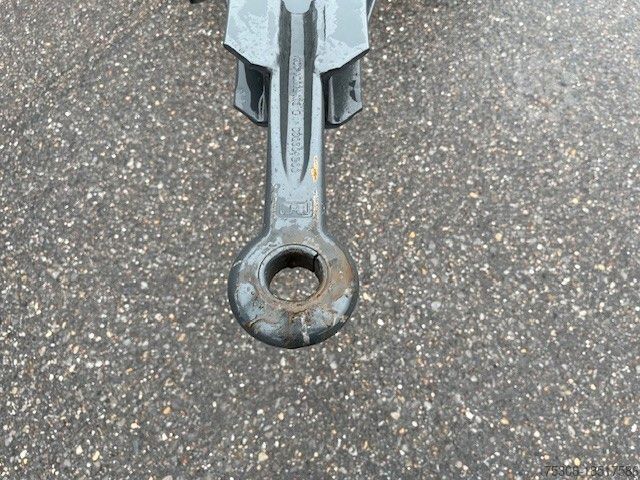

Drawbar with DIN drawbar eye, inner diameter 40 mm, outer diameter 110 mm, thickness 30 mm.

Axles
2 x 9 t axles for 22.5 disc brakes, manufacturer's choice.
Brake disc diameter approx. 430 mm,
Wheel mounting by centering according to DIN 74 361 Part 3.

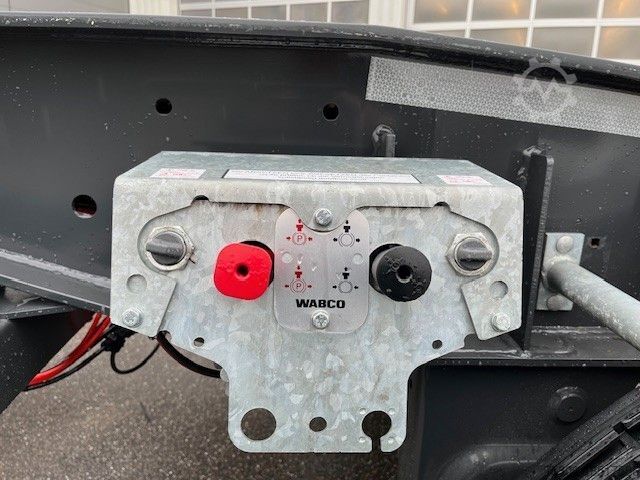

Braking system
Air brake system according to EU directive with Duomatik coupling head
Conventional air suspension system, EBS type 4S/3M, electronic braking system with ROLL Stability, double-diaphragm spring-loaded cylinder on the rear axle, release valve for separate release of the spring-loaded brake.

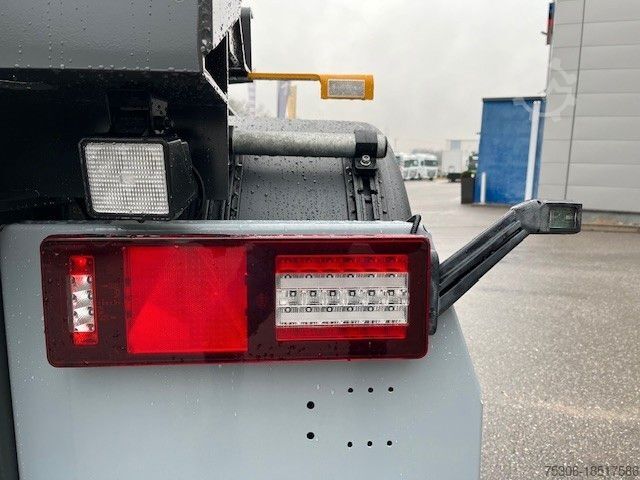

Lighting system
24-volt full LED lighting system according to Directive 76/756/EEC with multi-chamber light and license plate light integrated into the light panel, manufacturer's choice.
1 x 15-pin connector
6 x LED side marker reflectors with flashing indicators
2 x white LED front marker lights
2 x separately mounted LED rear lane departure lights
1 x LED reversing light

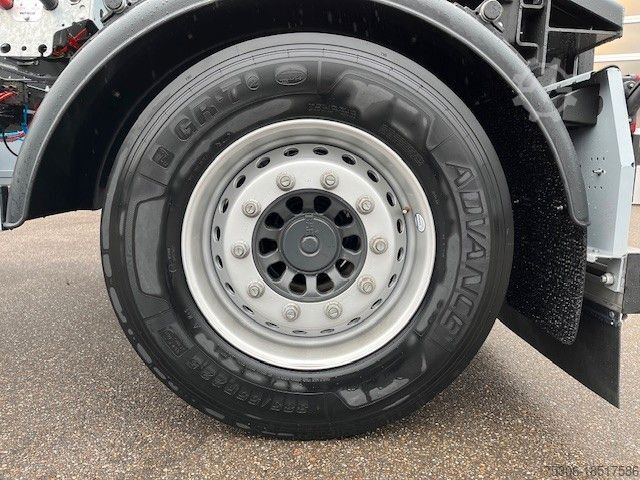

Wheels/Tires
Regional transport tires: 4 x 385/55R22.5 (11.75x22.5)
Steel wheels, offset 120,
unpainted wheel nuts.
Including tire pressure monitoring

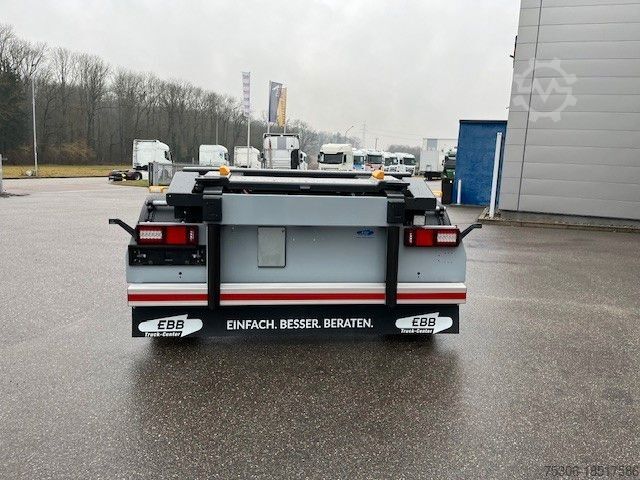

Underrun protection
Aluminum underrun protection.
Two vertical delta bumper profiles protect the rear during loading and unloading.

Accessories
4 plastic half-shell fenders, front and rear, single-wheel fenders
Dwoc Ejvzdwwsd Ddcob
4 anti-spray mud flaps, neutral

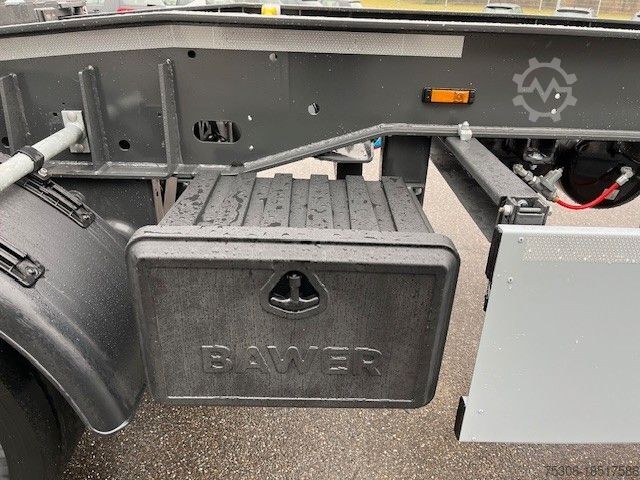

1 lockable plastic toolbox

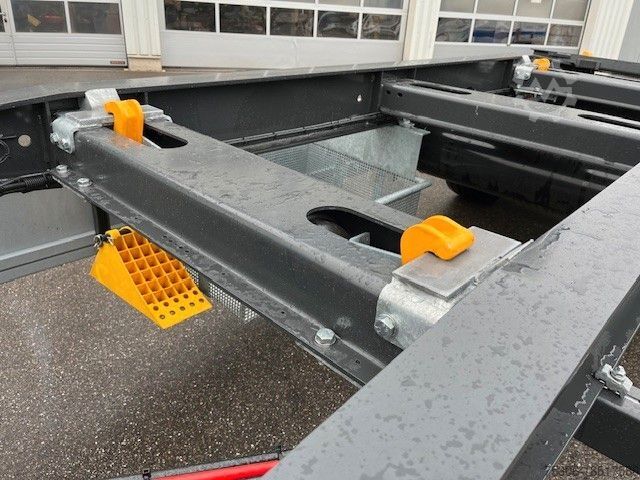

1 wheel chock with bracket
1 license plate holder
1 A-plate for transporting waste materials

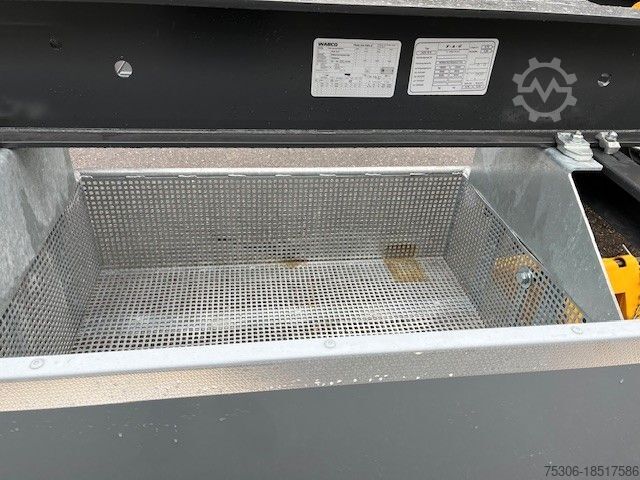

1 hanging net box

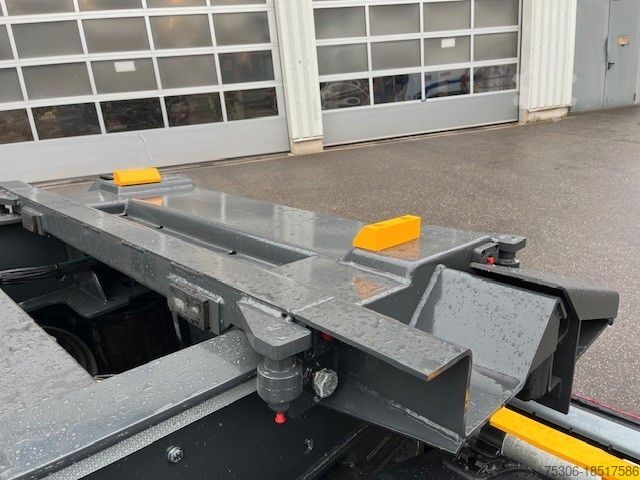

2 container guides

Paintwork
Chassis color: MB 7350 Nova Gray
Sliding attachment: MB 7350 Nova Gray
Wheel hub color: black cathodic dip-coat
Wheel rim color: RAL 9006 Silver
Rear contour markings: red
Side contour markings: white
Closed SSE: RAL 7001 Silver Gray
Rear end/light panels: RAL 7001 Silver Gray
Underrun protection: anodized aluminum (silver)
Locking hook, container guide: yellow

Documentation
Commissioning and braking report
Operating instructions
Axle manufacturer's maintenance instructions
DEKRA Expert opinion

Side guard closed
Hanging net box, galvanized

All information is provided without guarantee. Errors and omissions excepted. Subject to prior sale.
