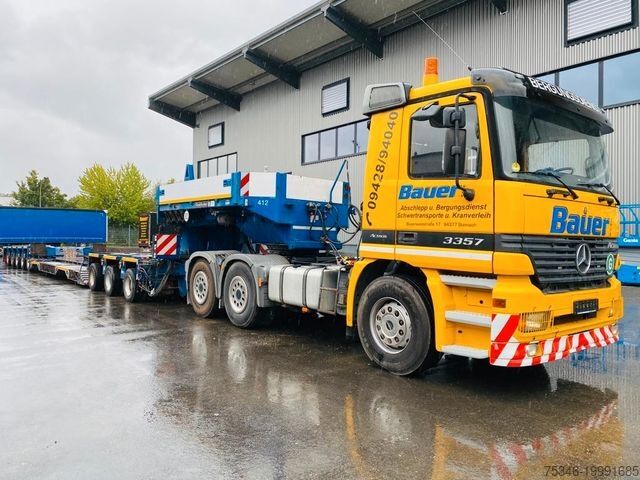

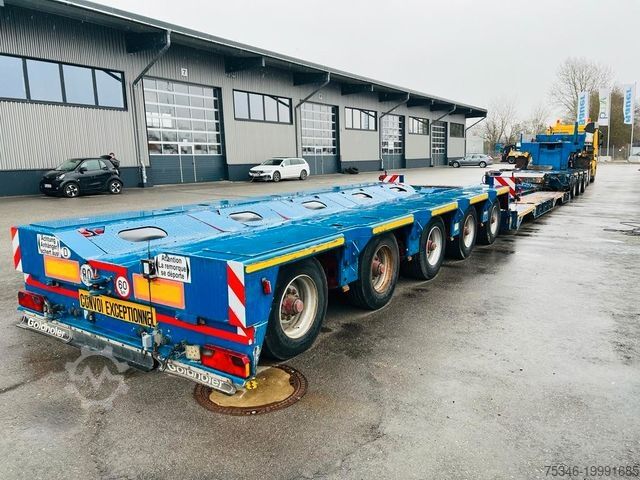

Прицеп GOLDHOFER STHP 8 (3+5)/GG 219 to/Pendelachsen/ausziehbar

Описание

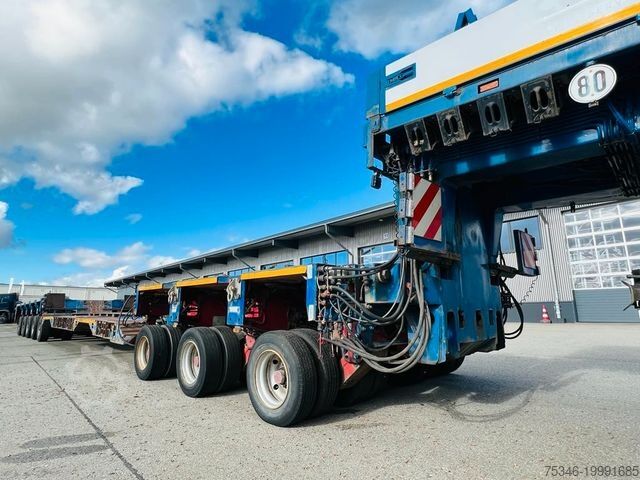

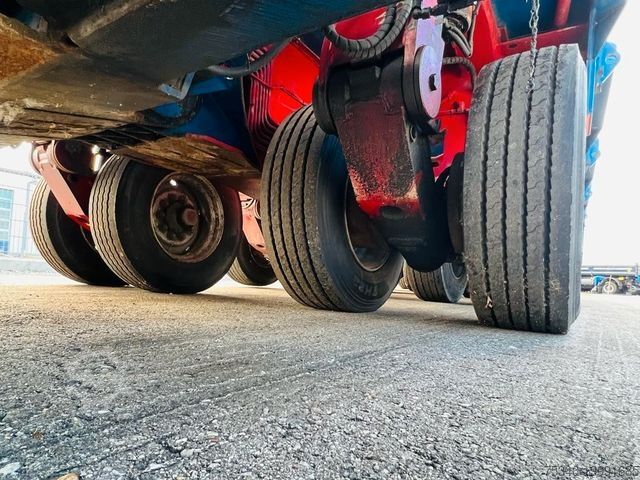

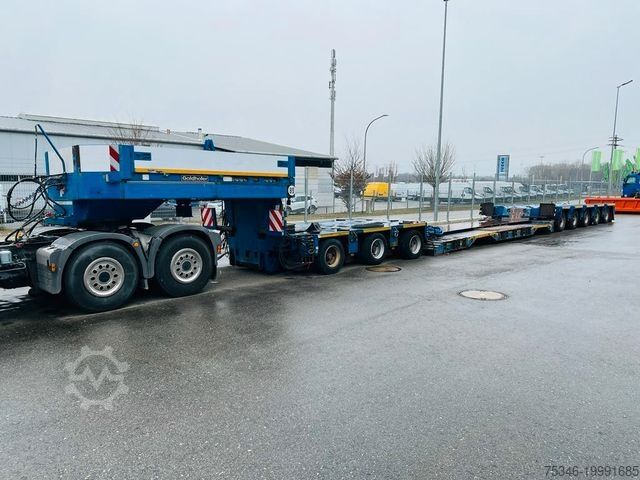

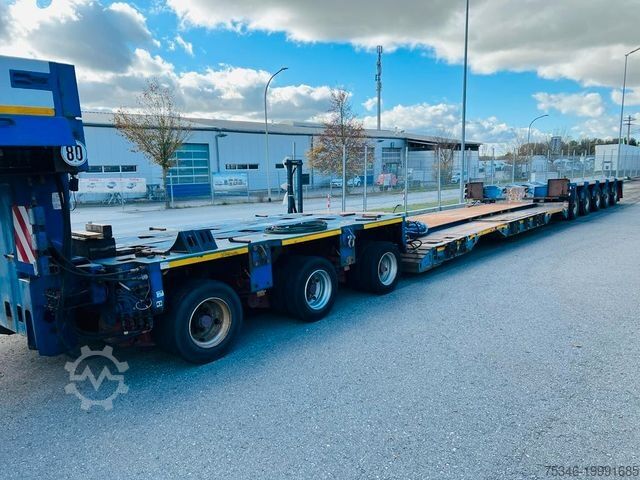

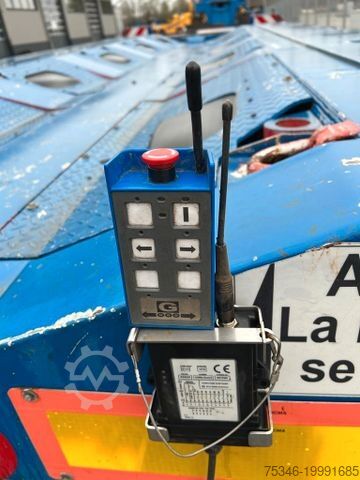

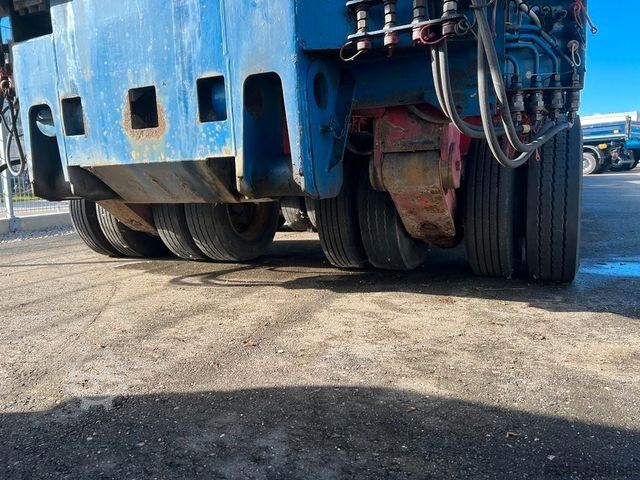

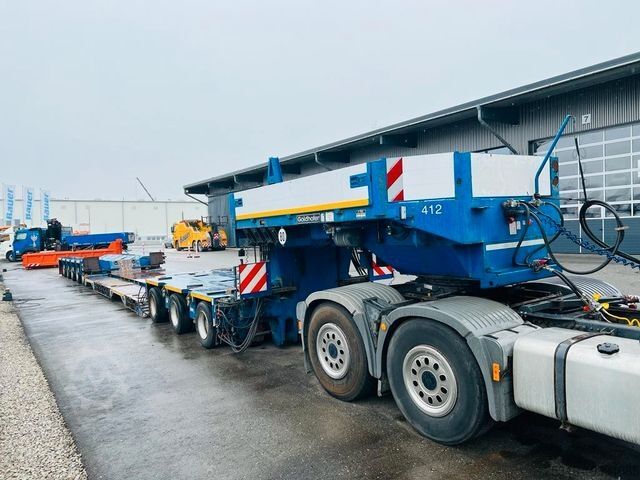

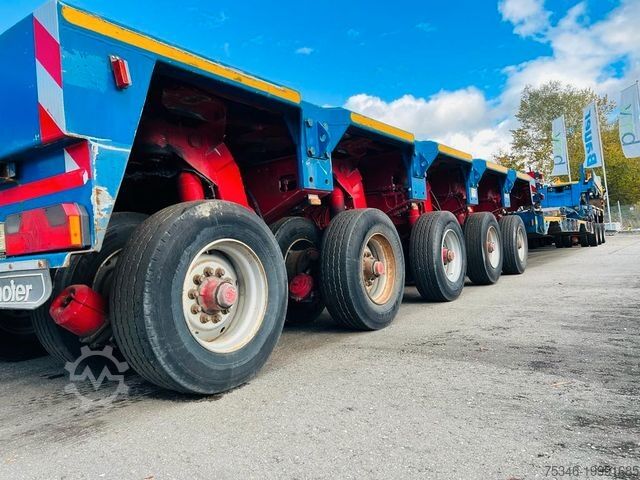

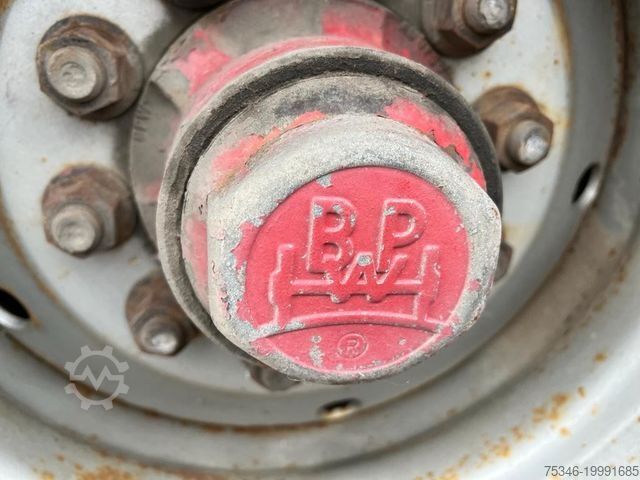

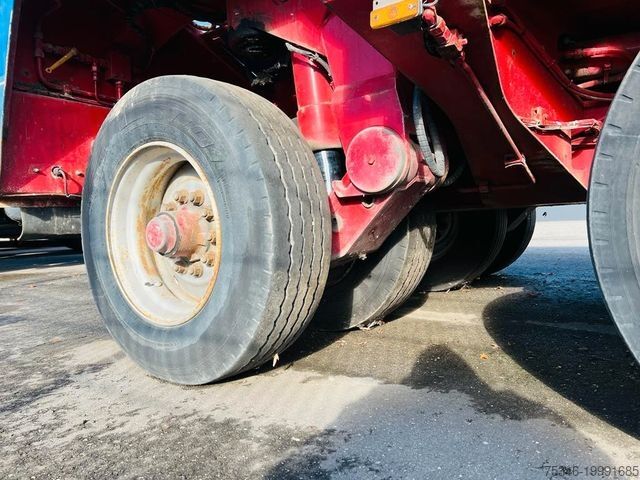

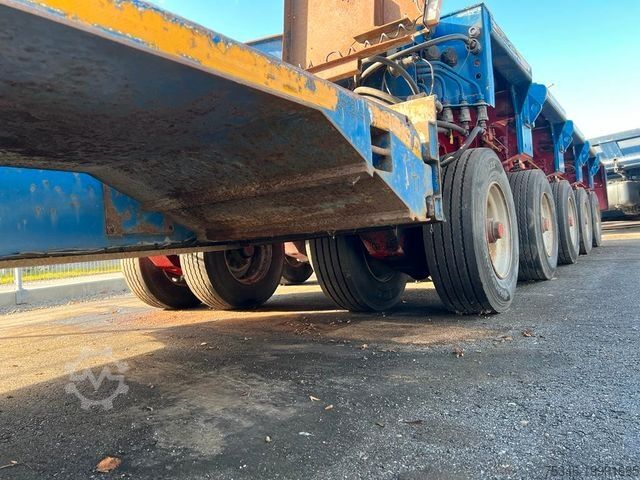

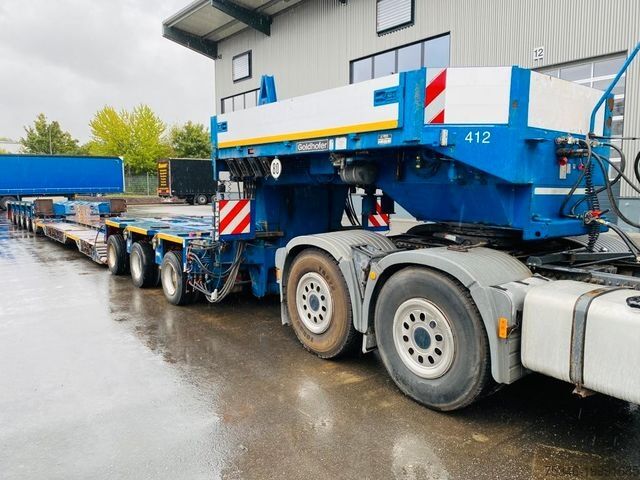

STHP 8 (3 + 5) 8 units of hydraulic BWP pendulum axle assemblies with remote control. Technically permissible gross weight 219,000 kg Technically permissible payload 175,620 kg Hydraulically suspended, 8-axle steered Goldhofer low-bed heavy-duty trailer type STHP 8 (3+5), consisting of 4 heavy-duty modules with a detachable gooseneck and extendable excavator low-bed section up to 5 meters, featuring 4 wheel recesses, ABS, technically permissible payload up to 175,620 kg. Consisting of the following 4 separate heavy-duty module parts: 1st module: Hydraulic universal gooseneck type STH/ST Year of manufacture: 2002 Can be combined with heavy-duty module undercarriages, drivable loading platforms. Unladen weight approx. 5,900 kg Permissible front fifth wheel load: 35,000 kg Length approx. 4.10 m Fifth wheel height approx. 1.30 m King pin 3.5" pin Removable aluminum side walls Fully hydraulically adjustable 2nd module: Goldhofer THP/ST3 3-axle heavy-duty module First registration: 14.11.2001 As a single module, technically permissible total weight: 108,000 kg, technically permissible axle loads: 36,000 kg at 5 km/h possible. Unladen weight: 10,350 kg As a single module, technical payload up to 97,650 kg at 5 km/h possible. 8 hydraulic pendulum axles, 24 wheels, tire size: 215/75/R17.5 Axle load: 25 t at 20 km/h Vehicle width: 3 meters Axle spacing: 1.5 meters Max. steering angle: ±60° Integrated into chassis: hydromechanical dual-circuit all-wheel forced steering with a maximum aggregate steering angle of 60°, integrated hydraulic oil tank Optimized bolt-lug coupling at front and rear for longitudinal combinations Single-tired pendulum axle assemblies with a total of 8 wheels per axle line Hydraulic axle compensation +/- 300 mm, hydropneumatic gas pressure suspension Hydraulic steering for all axles BPW axles with drum brake and ABS, technically permissible axle load of 34 t at 5 km/h 3rd module: Extendable low-bed heavy-duty module - Excavator bridge Year of manufacture: 2002 Internal dimensions approx. 7.50 meters long, 3.00 meters wide, loading height 0.40 meters Construction height 350 mm Extendable by approx. 5.00 meters - telescopic 4 wheel recesses with drive-on module at the front Construction height in wheel recess area approx. 150 mm Load capacity up to 80 t in low-bed and 175.6 t in overall STHP8 (3+5) module possible. Unladen weight 11,900 kg Front and rear hydraulic bolt-lug coupling with claw coupling adapter 4th module: Goldhofer THP/ET5 5-axle heavy-duty module First registration: 04.01.2002 Technically permissible total weight: 115,000 kg, technically permissible axle loads 23,000 kg at 5 km/h possible Unladen weight: 14,200 kg Technical payload up to 100,800 kg possible. Single-tired hydraulic pendulum axle assemblies with 4 wheels per axle line, 20 wheels (tire size 285/70 R 19.5) Hydraulic axle compensation +/- 300 mm, hydropneumatic gas pressure suspension Hydraulic steering for all axles Remote control for steering axles 5. Notes: With the 4 heavy-duty modules, up to 3 different tractor combinations are possible! Payloads change depending on the configuration. For the special low-bed combination, a current manufacturer's certificate from Goldhofer is available. The low-bed trailer can be tested at our facility. Price NET excluding 19% VAT. All information without guarantee. Subject to errors and prior sale. Internal vehicle number: 2285
