Прицеп Außenroller 20 AR

Описание

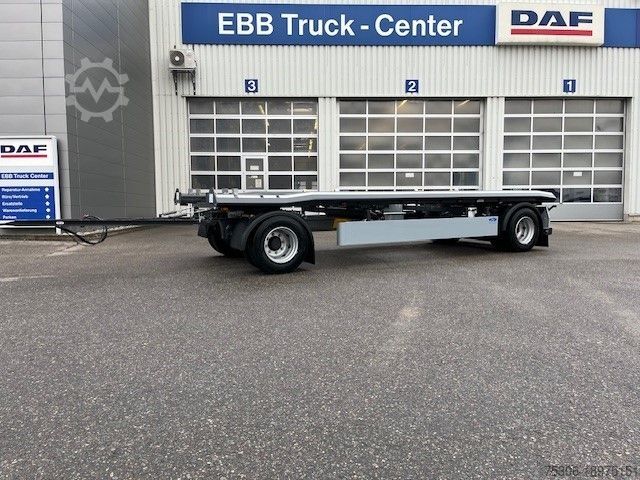

External Roller 20 AR
Dimensions and Weights
External reference length approx. 6,896 mm
Overall width approx. 2,500 mm
Ride height when loaded approx. 1,175 mm
Rollway length approx. 6,880 mm
Wheelbase 5,100 mm
Complete empty weight approx. 3,860 kg
Technically possible total weight approx. 20,000 kg
Permissible total weight approx. 18,000 kg
Payload approx. 14,140 kg
For containers with a length of 5,000 to 7,000 mm according to DIN 30722.
Technical specifications subject to change.

Chassis with cross members, welded box-type longitudinal beams made of QSTE steel

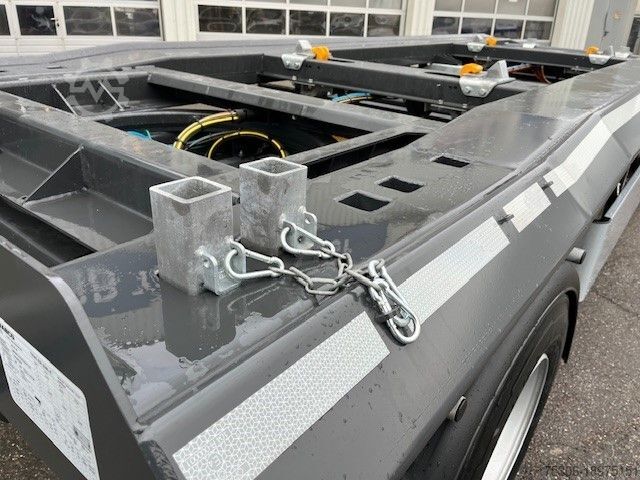

4 pneumatically operated container locks

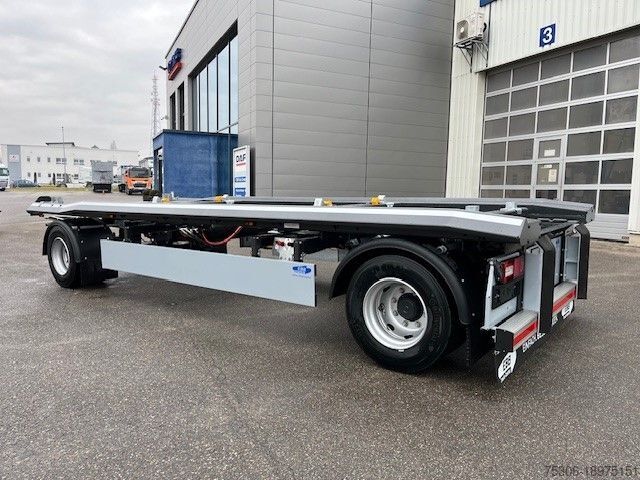

Side Closed safety device in accordance with Directive 89/297/EEC. (Item 2)
Spare wheel holder in basket design for 2 spare wheels including mounting kit for 1.

Bogie
Bogie 980 FM including ball-bearing turntable 90/1100/22 (low-maintenance).

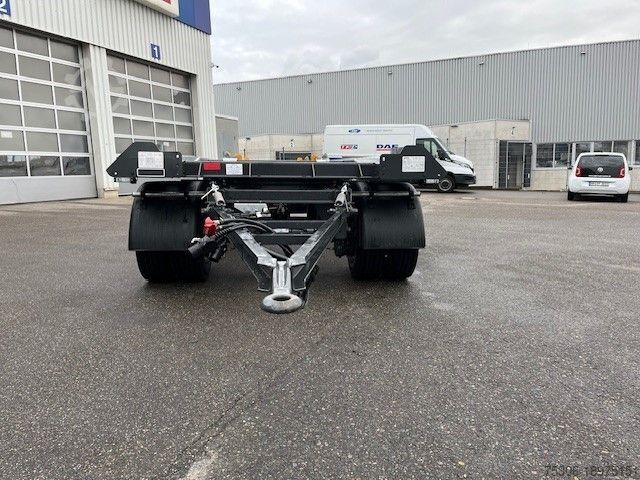

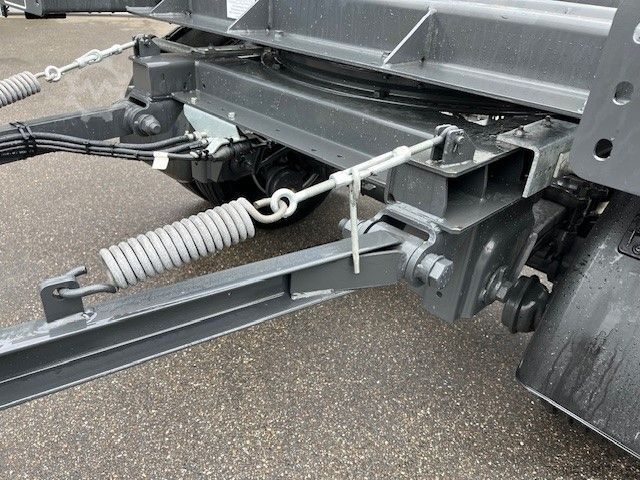

Drawbar 2600/980/100/30, inclined towing eye with height adjustment (tension spring with turnbuckle)
Drawbar with DIN towing eye, inner diameter = 40 mm, outer diameter = 110 mm, thickness = 30 mm

2 x 10 t axles for 19.5 disc brakes, brake disc diameter approx. 370 mm, wheel fastening by centering according to DIN 74 361 Part 3.

Air brake system according to EU directive with Duomatik coupling head
Conventional air suspension system, EBS type 4S/3M, electronic braking system with ROLL Stability, double-diaphragm spring-loaded cylinder on the rear axle, release valve for separate release of the spring-loaded brake.

24-volt full LED lighting system in accordance with Directive 76/756/EEC with multi-chamber light and license plate light integrated into the light panel, manufacturer's choice

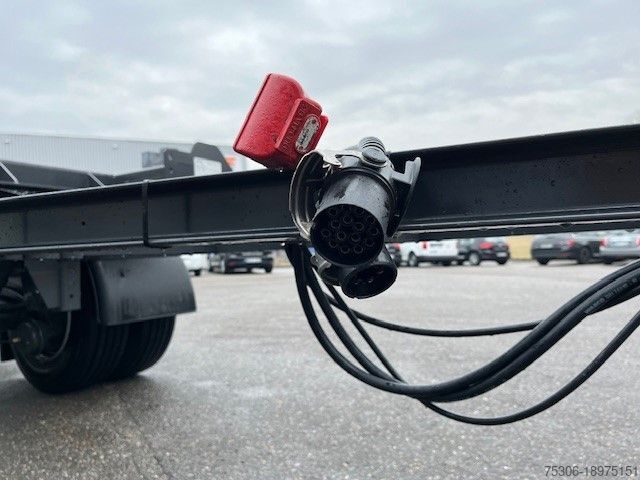

1 x 15-pin connector
6 LED side marker reflectors with flashing lights
2 white LED front marker lights
2 separate LED rear lane departure lights
1 LED reversing light

Regional transport tires
8-piece 265/70R19.5 (7.5x19.5)
Steel wheels, offset 138,
unpainted wheel nuts
including tire pressure monitoring
Doc Ed Ddowdcqtjcowb

Aluminum underbody protection

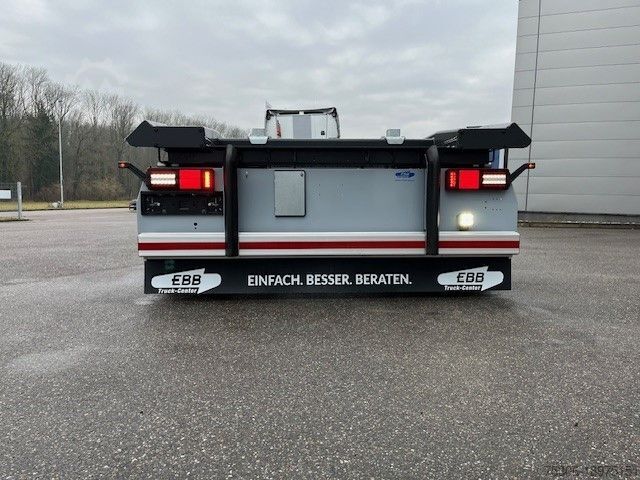

Two vertical delta bumper profiles serve to protect the rear during loading and unloading.

4 plastic half-shell fenders, front and rear, single-wheel fenders
4 anti-spray mud flaps, neutral
1 lockable plastic toolbox
1 wheel chock with bracket
1 license plate holder
1 A-plate for transporting waste materials
1 hanging net box (item 3)
3 small EBB stickers (item 4)

Chassis color: MB 7350 Nova Grey
Wheel hub color: black KTL
Wheel rim color: RAL 9006 Silver
Rear contour markings: red
Side contour markings: white
Closed SSE: RAL 7001 Silver Grey (item 2)
Rear end/light panels: RAL 7001 Silver Grey
Underrun protection: anodized aluminum (silver)
Locking hook: yellow

Documentation
Commissioning and braking report
Operating manual
Axle manufacturer's maintenance instructions
DEKRA report

All information is provided without guarantee. Subject to prior sale. Errors and omissions excepted.
