Другие Other TF 35.31 F

Описание

Suitable for extracting and transporting non-flammable liquids and sludge, for extracting and
sludge, for suctioning and transporting faeces from pits.
When filling the container, always take into account the density of the material being suctioned.
the density of the material being vacuumed and that the permissible axle loads for the vehicle
(= permissible total weight) must always be ensured. We accept no liability for
overloading of the vehicle.

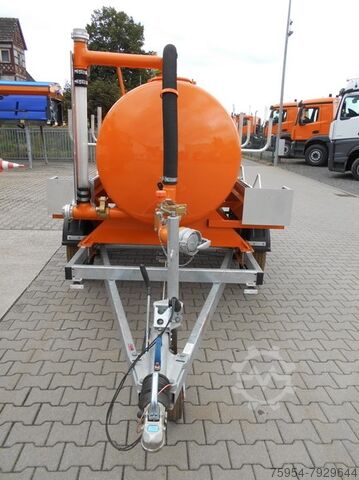

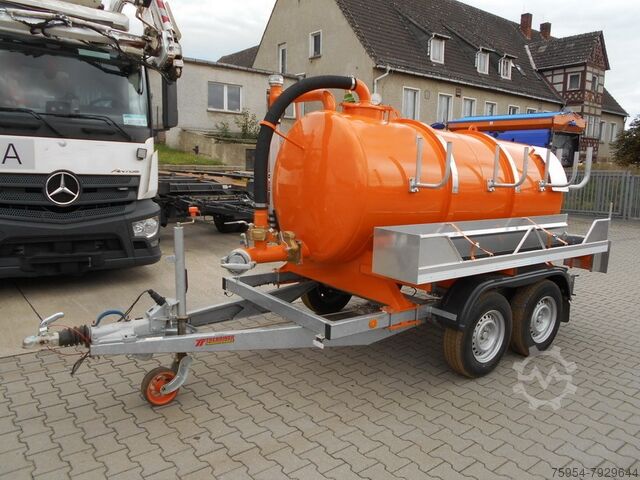

Tandem trailer Description
- Wheels next to the loading area
- Total mass 3500 kg (without accessories)
- Frame body dimensions (LxW, approx. 3025x1540 mm)
- Total trailer width approx. 2000 mm
- Tandem axle, overrun brake with automatic reverse and parking brake
Bowden cables in maintenance-free design
- Mudguards mounted in plastic (black) (inside not covered)
- Sturdy frame construction as box section frame with flat support surface
Dwec Edsiv U Hps Ddcob

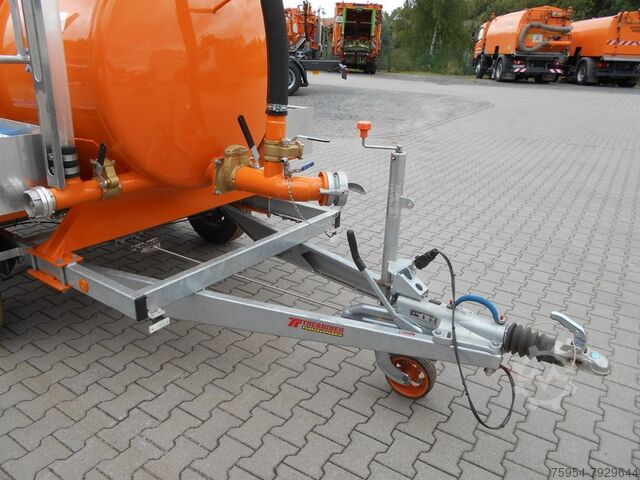

V-drawbar (completely hot-dip galvanized)
- Ball coupling (coupling height approx. 440 mm - fixed - not height-adjustable)
- 1 heavy-duty support wheel (approx. 500 kg load capacity, foldable)
- 12-volt lighting, reversing light in right-hand tail light
- 13-pin plug (plastic)
- Wheels with 4 tires 185 R14C 8PR, 5-hole rim
- 2 wheel chocks with holder

BEHÄLTER:
Cylindrical single-cell, shell wall thickness 4 mm, made of S 235 JR
Outer floor and closing floor with manhole in dished shape,
Stiffening rings or vacuum rings on the container,
electrically welded (MAG).

Technical data

Useful volume: approx. 2.3 m3
Sludge chamber capacity: approx. 2.5 m air volume
Permissible tank pressure: -0.8 / +0.5 bar
Permissible operating pressure: - 0.8 / +0.5 bar
Internal test overpressure: 0.65 bar
Vacuum. designed for 100

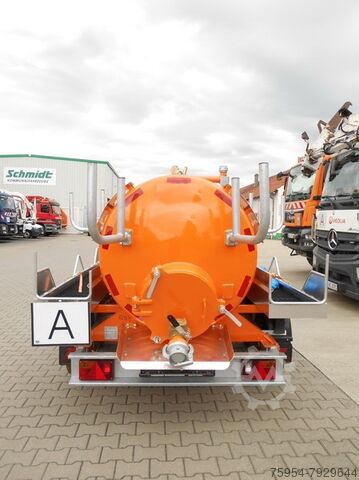

Manhole DN 450 (hinged closure)
Hinged as a cleaning opening, at the back at the lowest point in the dished end, welded in with
welded in with tommy screws.

Tank content indicator for sludge chamber:
The fill level is read through a covered, large DN 80 sight glass, mounted at the front right behind the cab.
behind the driver's cab.
With Storz B-coupling cleaning connection at the top and bottom,
A manual gate valve at the bottom of the pipe for shutting off,
Aluminum protective plate in front of the pipe with scale graduation.
Scale graduation marked every 500 liters as a line graduation on the mounted protective plate.

Emptying:

The sludge chamber is emptied by free discharge or pushing out the sludge
by pressurizing the VAK pump from the towing vehicle.

SUCTION-PRESSURE INSTALLATION:

Pipes and fittings:

are dimensioned in DN 80 and laid stress-free using hose sockets

Over-suction protection is provided:

A suction dome at the top of the tank with PVC ball as overfill protection,
The following are also provided
Component-tested safety valve

Lower suction and discharge connection:
Welded in at the lowest point of the manhole with an external shut-off device
DN 80 quick-closing gate valve operated by hand and Perrot V-coupling with
blind cover DN 80,
Ventilation ball valve 1/2" approx. 60° upwards between gate valve DN 80 and perrot coupling.

Suction connection:
Perrot V-part DN 80, attached to front bottom flap

Trailer suction connection:
Perrot V-part DN 80, attached at the front at the lowest point on the front floor flap

7. SUPERSTRUCTURE EQUIPMENT

Outlet skirt: below the dished end at the end of the tank, screwable Material: aluminum

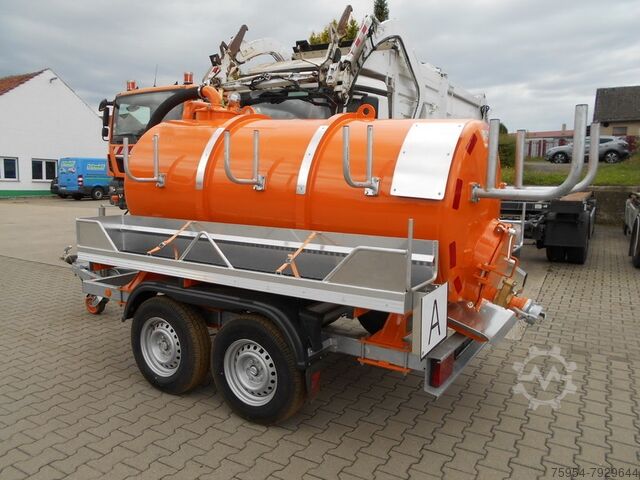

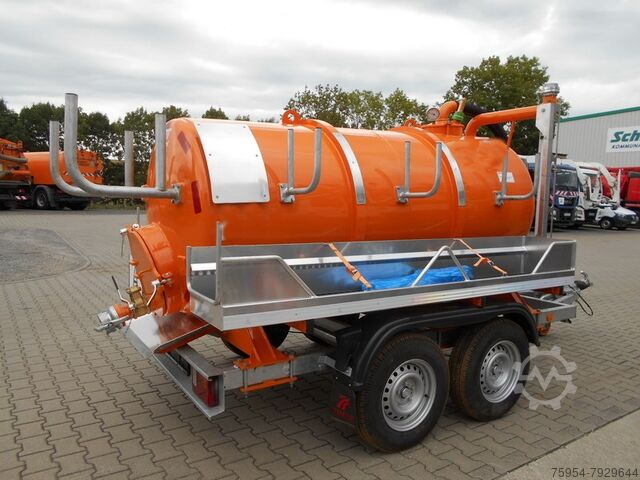

Hose boxes: open, on the right and left of the body with stanchions, as wide and as long as possibl
