Описание

Further information
Chassis Turntable Disposal
Fine-grained steel welded construction
Container locking system:
- 2 pairs of locking hooks embedded in the floor
- Pneumatic actuation
The container locking mechanism is a 2-point design, acting from the inside, and locking of roll-off containers with an inner web is not possible (for transporting roll-off containers with a sub-frame in accordance with DIN 30722)
Note! At the start of the roller recess at the front, the container must be pushed on completely flat!
Longitudinal guide rails can be moved sideways and removed, rails approx. 115 mm high
Turntable with strong ball bearing slewing ring
8 pairs of lashing mushrooms at the top and sides of the outer frame, 5 tons each
7 pairs of stake pockets embedded in the outer frame, inside 70 x 40 mm, (can be converted to 5 to. ring lashing eyes, not included)
2 wheel chocks with holder
Aluminum side bumpers
Steel underride guard
Quarter-shell mudguards according to EG
with anti-spray flaps according to EG
Towing equipment Trailer turntable
Drawbar with tested 40 mm drawbar eye
Axles + suspension
SAF drum brake axles
Axle/chassis laser-measured Reduction of tire wear and fuel consumption
Parabolic suspension with maintenance-free steel-rubber bearings
Wheels and tires
235 / 75 R 17,5
at the manufacturer's choice
Twin steel rims, factory silver
Brake system
2-line compressed air brake system
Spring-applied parking brake
2 non-interchangeable coupling heads at the front, with connecting cables to the motor vehicle,
ABS and ALB, with ABS plug at the front, with connecting cable
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
Electrical system
24 volt, multi-chamber lights, amber LED lighting at the side
2 white position lights at the front
2 white/red lane departure lights at the rear
2 x 7-pin interchangeable plugs at the front, with connecting cable,
floor
Steel floor
Doc Ed Ddsi Ri Nujcewb
Roller recess for container recessed in the floor at the frontfor roll-off containers from 5,000 - 7,000 mm in length
Note: Slight floor undulation possible due to welding distortion!
Drive-on ramps
Lockable storage space for loading ramps underneath the loading area
Operating instructions
A special permit is required for axle loads of 10,000 kg. Approval must be applied for individually in each federal state; the legislator does not have to grant approval for 20 t GG. Customer risk.
The specified total weight is technically possible; depending on the load, the total weight may not be achieved while complying with the permissible axle/support and fifth-wheel loads. (Poor driving and trailing behavior possible due to incorrect load distribution)
Country of registration / plates
Country of registration: Germany
with Dekra approval and expert opinion (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Warning sign according to ECE - 70
Paint finish
Frame DB 7350 nova gray
15-year warranty against rusting through
Note: Bottom corrugation possible due to hot-dip galvanizing!
Drawbar KTL black

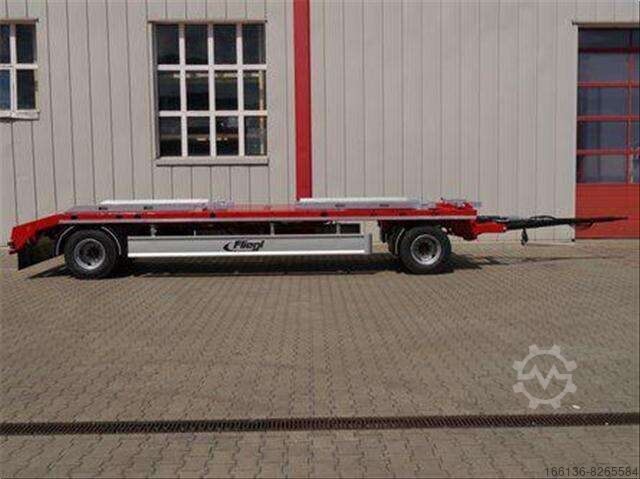

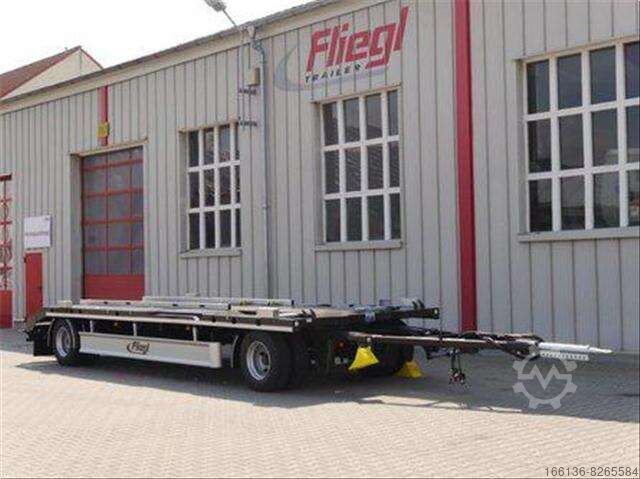

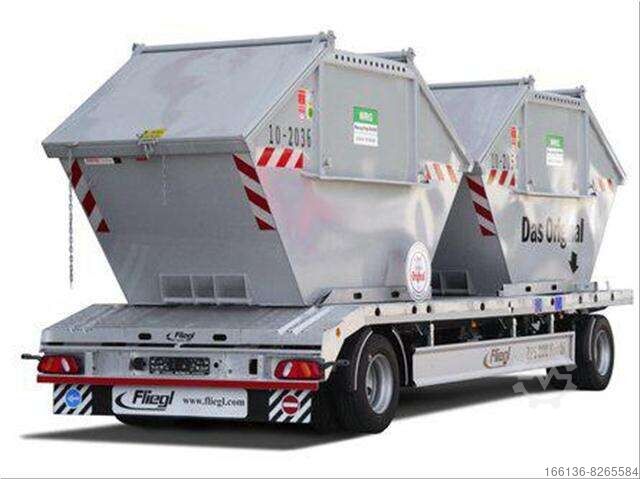

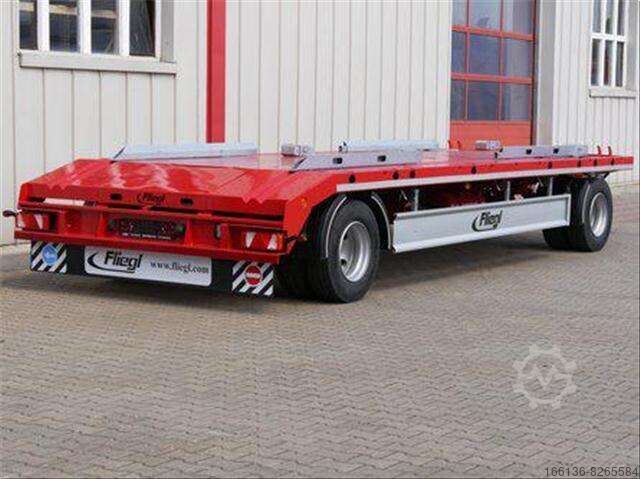

Attention: Archive pictures!
