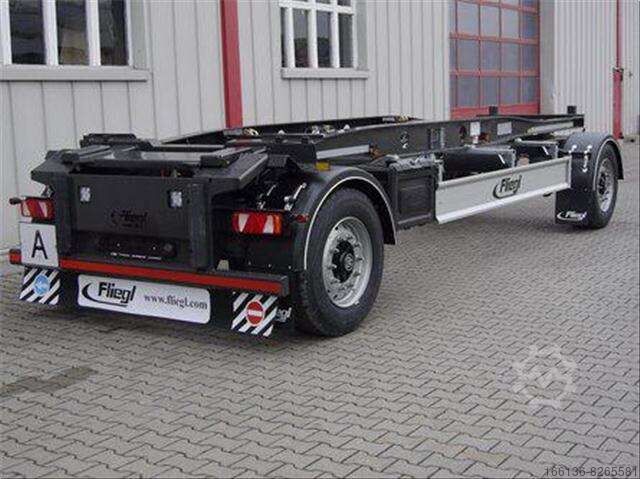

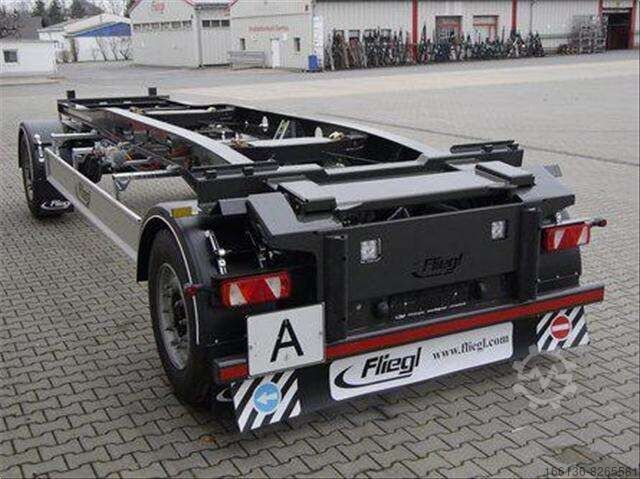

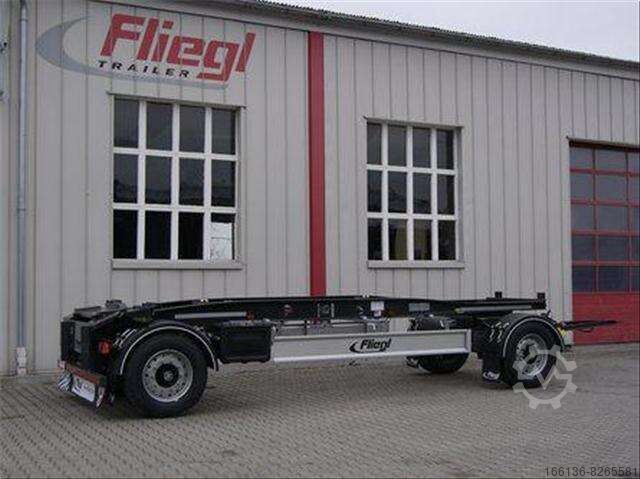

Другие Fliegl ZPS 180 AS Maxi
Состояние
новое
Цена без учета НДС
5681920.00
Отправить сообщение
Описание
Further informationChassis Turntable Disposal
Fine-grained steel welded construction
Carriage:
Container is placed on the carriage from the rear and pushed forwards, container stop at the front adjustable for 6.0 / 6.5 and 7.0 m roll-off containers with outer roller
Container locking mechanism:
- 2 pairs of locking hooks embedded in the floor
- Pneumatic actuationThe container locking mechanism is a 2-point design that operates from the inside and locking of roll-off containers with an inner web is not possible
Turntable with powerful ball bearing slewing ring
Wheel chocks with holder
Aluminum side bumpers
Steel underride guard
Half-shell mudguards
Rear impact protection, vertical left and right, with delta rubber on the underride guard holder,
Trailer drawbar Turntable
Drawbar with tested 40 mm drawbar eye
Axles + suspension
SAF disc brake axles
Axle/chassis laser-measured Reduction in tire wear and fuel consumption
Air suspension with lift & lower valve
Wheels and tires
385 / 55 R 22,5
manufacturer's choice
Factory silver steel rims
Brake system
2-line compressed air brake system
Spring-applied parking brake
Immobilizer:
the spring-loaded parking brake is activated when the container lock is open
Vehicle stability system
2 non-interchangeable coupling heads at the front, with connecting lines to the motor vehicle,
EBS, electronic braking system with EBS plug at the front, with connecting cable
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
Electrical system
24 volt, multi-chamber lights, amber LED lighting at the side
Dwsc Eei Ri Nqed Ddcob
2 white position lights at the front
2 white/red lane departure lights at the rear
1 additional LED work light(s) at the rear, switched via reversing light
2 x 7-pin interchangeable plugs at the front, with connecting cable,
Approval / plates
Country of registration: Germany
with Dekra approval and certificate (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paint finish
Frame DB 7350 nova gray
Drawbar KTL black
Attention: Archive pictures!
Характеристики
Общий вес
18 кг
Собственный вес
3 кг
Максимальная грузоподъёмность
14 кг
Конфигурация осей
2 оси
Размер шины
385 / 55 r 22,5
