Другие
Другие Fliegl ZPS 180 Abroller
Состояние
новое
Отправить сообщение
Описание
Further informationChassis Turntable Disposal
Fine-grained steel welded construction
2 longitudinal beams with cross beams, upper side of the longitudinal beams designed as container roller tracks in wear-resistant design, loadable from the rear, with ramp. For roll-off containers with 6.5/ 7.0 m.
Container locking: - 2 pairs of locking hooks embedded in the floor - pneumatic actuation The container locking is a 2-point design, acting from the inside, and locking of the roll-off containers with inner web is not possible (for transporting roll-off containers with lower frame in accordance with DIN 30722)
Turntable with strong ball bearing slewing ring
Wheel chocks with holder
Aluminum side bumpers
Steel underride guard
Half-shell mudguards
Towing equipment Trailer turntable
Drawbar with tested 40 mm drawbar eye
Axles+suspension
SAF disc brake axles with 430 mm disc diameter
Axle/chassis laser-measured Reduction of tire wear and fuel consumption
Air suspension
Wheels and tires
385 / 55 R 22,5
at the manufacturer's choice
Factory silver steel rims
Brake system
2-line compressed air brake system
Spring-loaded parking brake
Immobilizer: the spring-loaded parking brake is activated when the container lock is open
Vehicle stability system
2 non-interchangeable coupling heads at the front, with connecting lines to the motor vehicle,
EBS, electronic braking system with EBS plug at the front, with connecting cable
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
with lifting & lowering valve
Electrical system
Dwec Ed Ddei Ri Nmjcob
24 volt, multi-chamber lights, amber LED lighting at the side
2 white position lights at the front
2 white/red lane departure lights at the rear
2 x 7-pin interchangeable plugs at the front, with connecting cable,
Country of registration / plates
Country of registration: Germany
with Dekra approval and certificate (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paint finish
Frame DB 7350 nova gray 10-year warranty against rusting through
Drawbar KTL black

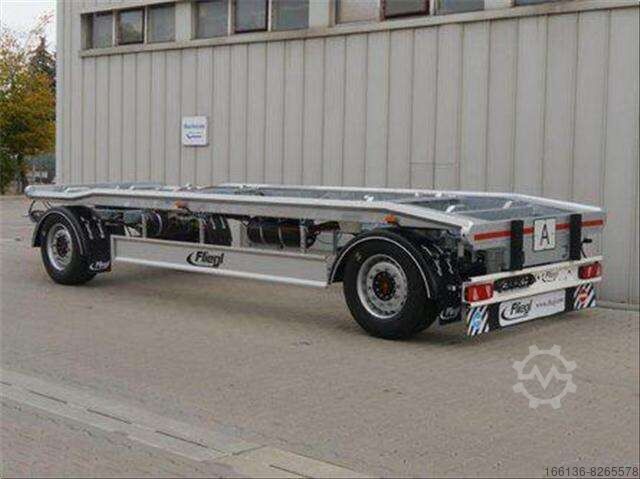

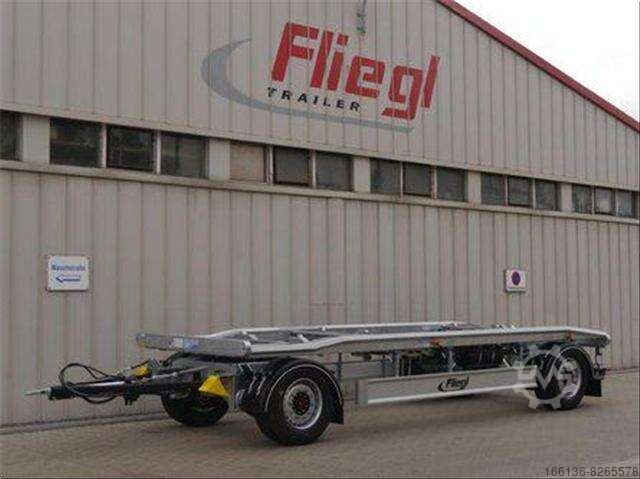

Attention: Archive pictures!
Характеристики
Общий вес
18 кг
Собственный вес
3 кг
Максимальная грузоподъёмность
14 кг
Конфигурация осей
2 оси
Размер шины
385 / 55 r 22,5
