Другие
Другие Fliegl EPS 25
Состояние
новое
Отправить сообщение
Описание
Further informationChassis central axle trailer
Fine-grained steel welded constructionincl. 4 mounting points for IBC containers if technically possible
Drawing approval required from the customer if ordered!
2 side members as double T-beams for subsequent self-supporting superstructure
with front cross member
2 pairs of lashing eyes for lashing the IBC container
Telescopic support foot at the front
Wheel chocks with holder
Mudguards
without side bumpers
Steel underride guard
Towing device central axle trailer
Towbar with tested 40 mm towing eye, forwarding version
Height-adjustable drawbar via spindle, max. adjustment range 250 mm
Axles + suspension
GFA or BPW axle of the manufacturer's choice, with angular roller bearings and S-cam brake
Axle/chassis laser-measured Reduction in tire wear and fuel consumption
Parabolic suspension with maintenance-free steel-rubber bearings
Wheels and tires
235 / 75 R 17,5
at the manufacturer's choice
Factory silver steel rims
Brake system
2-line compressed air brake system
Spring-applied parking brake
2 non-interchangeable clutch heads at the front, with connecting lines to the motor vehicle,
without ABS, but with mechanical ALB, then max. 60 km/h approval
Electrical system
24 volt, multi-chamber lights, without amber LED lighting at the side
2 white position lights at the front
2 white/red lane departure lights at the rear
Dsc Edoi Ri Anj Ddcswb
2 x 7-pin interchangeable plugs at the front, with connecting cable,
Country of registration / plates
Country of registration: Germany
with Dekra approval and certificate (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Paint finish
Frame DB 7350 nova gray10-year warranty against rusting through

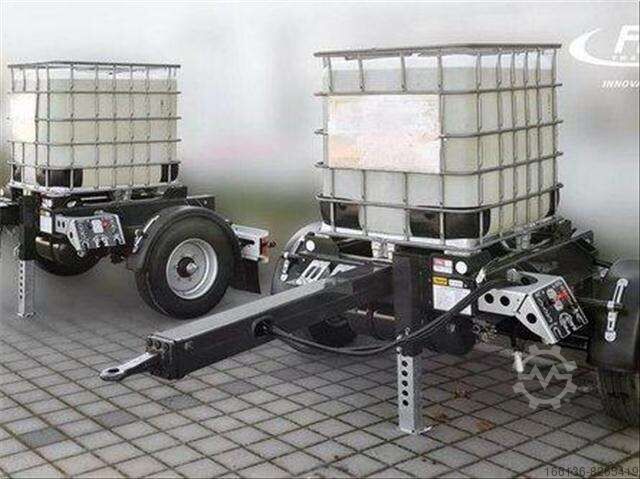

Attention! These are archive pictures.
Характеристики
Общий вес
2 500 кг
Собственный вес
760 кг
Максимальная грузоподъёмность
1 740 кг
Конфигурация осей
1 ось
Размер шины
235 / 75 r 17,5
