Другие
Другие Fliegl Dolly
Год выпуска
2018
Состояние
б/у
Отправить сообщение
Описание

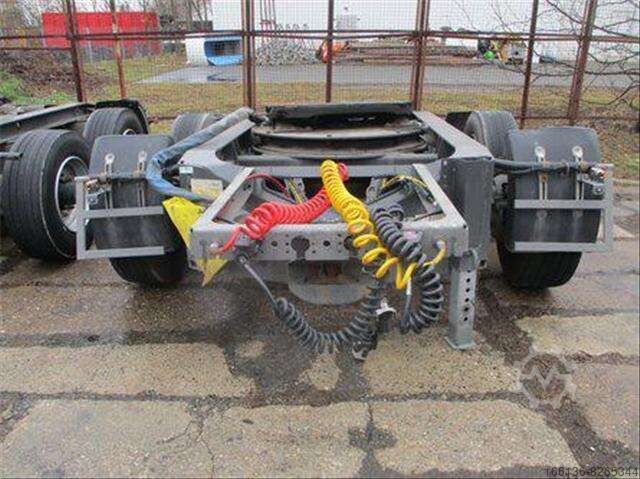

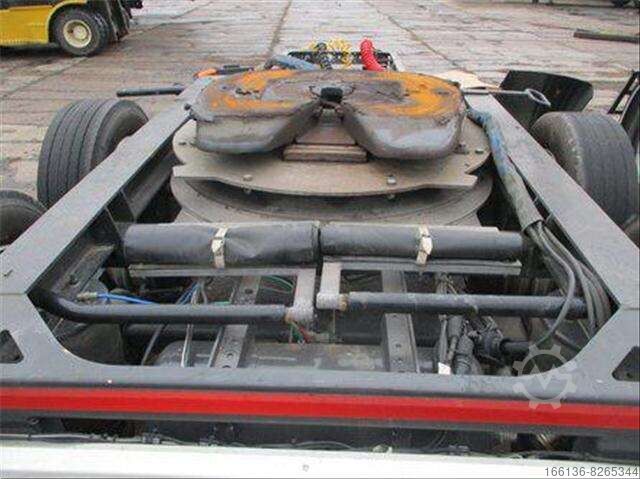

Further informationWelded fine-grained steel construction, fifth wheel coupling, make of our choice for 2 kingpins, with ball bearing slewing ring, max. 20° stop, lockable, support on drawbar, wheel chocks with holder, steel underride guard, quarter-shell mudguards in front of and behind axle unit, with tarpaulin cover when empty
CLG under-coupler drawbar with tested 50 mm drawbar eyes to the dolly and to the motor vehicle
BPW disc brake axles with 370 mm disc diameter, air suspension with lift & lower valve
Djc Edei Riyas Ddcewb
2-line compressed air brake system, spring-loaded parking brake, Duomatic coupling head at the front, with connecting lines to the tractor unit2 non-interchangeable coupling heads to the trailer, incl. connecting helix
EBS made by Wabco, electronic brake system, with Can-Router, with EBS plug at the front, with connecting cableEBS connecting cable to the trailer, Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS! Axle load detection for trucks via EBS, without truck instal.
24 volt, 4 x 3 chamber lights + 1 round rear fog light, amber LED lighting at the side, 2 white position lights at the front, 2 white/red lane departure lights at the rear, 1 x 15-pin plug at the front, with connecting cable to the truck1 x 15-pin socket, with connecting spiral to the semi-trailer, cable for reversing camera system with socket, additional LED work light(s) at the rear, switched via reversing light
Country of registration: Germany, with Dekra approval, prepared for single-line license plate holder, contour markings with reflective strips to ECE R 048, white at the sides and red at the rear
Saddle height approx.: 950 mm
Характеристики
Общий вес
13 400 кг
Собственный вес
2 000 кг
Максимальная грузоподъёмность
11 400 кг
Первая регистрация
11/2018
Конфигурация осей
2 оси
Размер шины
285/70 r19,5
