Further information

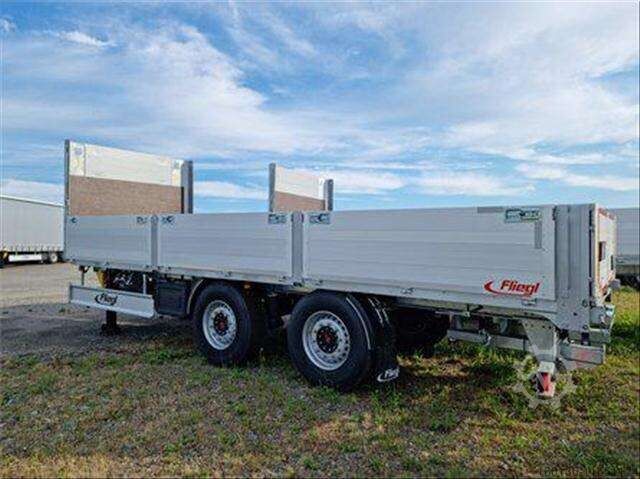

Tandem platform trailer
Type TPS 180 Standard building material with forklift bracket

Weights and dimensions:
Total weight: 18000 kg
Unladen weight (basic version) approx.: 4600 kg +/- construction tolerance
Payload approx.: 13400 kg
Drawbar load: 1000 kg
Overall length approx.: 9925 mm
Overall width max.: 2550 mm
Overall height approx.: 3150 mm
Interior length approx.: 7750 mm
Interior width approx.: 2480 mm
Platform height approx.: 1200 mm
Towing height approx.: 380 mm
Towbar length approx.: 2150 mm

Chassis central axle trailer
Fine-grained steel welded construction
Outer frame slightly slanted new design with Load-Lock profile for tensioning strap attachment
1 pair of gear support legs at the front, with straight lower section and single-sided operation in FR right
2 wheel chocks with holder
Aluminum side bumpers
Steel underride guard
Quarter-shell mudguards
Dsc Esndwdhed Ddcswb
2 plastic toolboxes, with drawer and shelf, w=650 / h=520 / d=670 mm, lockable with a padlock (lock not included)
Bracket for truck-mounted forklift at the rear, including 2 fork pockets, 2 extendable support tubes, bracket for chain safety device with pin. Underride guard with light unit can be folded away. Including 2 loose rubbers to protect the rear wall, we recommend counterweight!
Please note! Partially low ground clearance with forklift, poor tracking behavior possible, without warranty! (Forklift tare weight up to max. 1900 kg for trailers). (With proximity switch for forklift control in conjunction with lift axle)
The axles are shifted backwards by the forklift bracket, observe load distribution when driving without forklift. Customer risk!
Note! Forklift bracket! Carrying a forklift truck can lead to a considerable reduction in the drawbar load. Front counterweight required! On wet and slippery roads, an additional ballast weight provided by the customer or a load of at least 2 tons at the front of the bulkhead is required; the speed must then be reduced and adapted to the roads and driving behavior.
The truck must always be secured with chains while driving. The distance between the lift mast and the body must be max. 45 mm or the vertical forklift tines must be in contact with the forklift pockets at the end.
We assume that the towing vehicle has no steering or lift axle, or that the steering axle is always locked or the lift axle is always on the ground.
Towing equipment for central axle trailers
Towing bar with tested 50 mm towing eye, forwarding version
(not suitable for trucks with tail lift)
Towbar under-coupler
Folding bracket with spring support on the drawbar, for guiding the connecting cable to the truck
Axles + suspension
SAF disc brake axles with 430 mm disc diameter
Axle/chassis laser-measured Reduction of tire wear and fuel consumption
Air suspension with lift & lower valve
1st axle automatic lift axle with proximity switch, for lift axle (only for driving with forklift)
Wheels and tires
385 / 65 R 22,5
according to manufacturer's choice
Steel rims factory silver
Brake system
2-line compressed air brake system
Spring-applied parking brake
Vehicle stability system
Duomatic connection at the front, with connecting cable to the motor vehicle, connection in FR-right
EBS, electronic brake system with EBS plug at the front, with connecting cable
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
Electrical system
24 volt, LED multi-chamber lights, amber LED lighting on the side, LED lic
