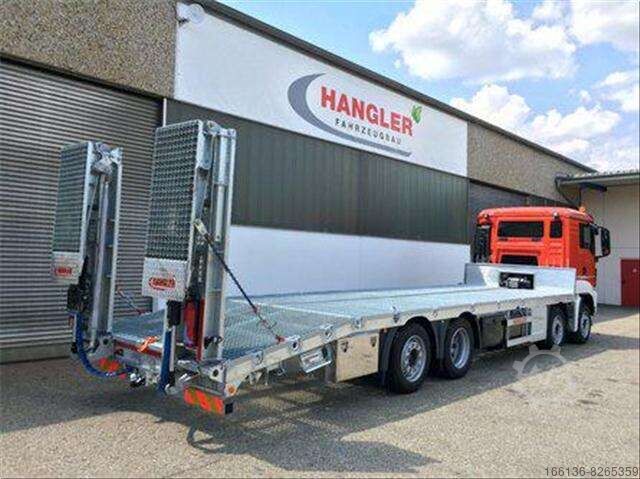

Сменное шасси Hangler LKW Tieflade Liftmaster Aufbau für 3 Achs LKW Fahrgestell zum Transport von Arbeitsbühnen

Описание

Further information
Frame
Welded steel construction made of fine-grained steel, hot-dip galvanized, flat plateau without raised edges,
Loading area slanted downwards by approx. 8° after the rear axle. Side members made of steel profiles,
Hot-dip galvanized steel frame, with stainless steel plate at the kink as cable guide - flush with the floor. For trucks with
Wheelbase: 2nd axle 5,100 mm / 2nd to 3rd axle 1350 mm
Trailer coupling
Towing hitch ball head D24.8: (height from floor to top edge approx. 480 mm), towing capacity 2,800 kg,
incl. assembly and electrics with 7-pin socket
Accessories/conversions
2 holders for wheel chocks, aluminum side bumpers, foldable - are taken from the truck!
Steel underride guard, quarter-shell mudguards with mud flaps - will be
taken from the truck!
Storage box
Plastic tool box, with drawer and shelf, w=650 Incl.
/ h=520 / d=670 mm, lockable with a padlock (lock not included).
not included)
1 holder for 3 pcs. petrol cans
1 stainless steel storage box, w=600/h=400/t=500 mm, with polished door, incl. lockable, includes control valve.
lockable, includes control valve and electro-hydraulic pump unit.
pump unit. Control box with circumferential door seal and
sealing sleeves on the back (splash-proof according to techn.
technical possibility)
Electrics
Adaptation of the existing rear lights, 2 additional LED work lights, recessed in the bulkhead
recessed switched via parking light with switch on front wall outside in FR-left, 1 LED work light,
at the rear, with integrated reversing camera Incl.
with color flat screen monitor, screen with suction cup mount and power supply via 24 volts,
Pec R Nc Iji Riytofnegn
Voltage divider 24/12V, 1 socket 7-pin 12V = plug-in adapter
Base
Mega Grip made of toothed galvanized grating, steel grating 50/4 Incl.
with mesh width 50 mm. Top side with anti-slip serration,
laid continuously over the entire main frame plateau
Lashing eyes
12 pairs of lashing rings suspended freely pivoting in the outer frame - 10 tons each.
1 x at the front and the last one at the rear. 1 piece Lashing eyelet at the very rear in the center for fastening the
winch cable
12 lashing eyes centrally embedded in the floor, 5 tons each, (not included in Incl.
rear sloping)
Front wall
Sheet steel bulkhead, height 1,500 mm. Fixed with corner pillars at front wall height. In each case 2
x 12 pcs. Suspension brackets for lashing chains mounted on the left and right of the front wall
Cable winch
Electric cable winch, 24 volt, pulling force approx. 6350 kg, mounted in the center of the bulkhead (recessed with
loading bridge), operation with radio remote control, cable length min. 35 m x 9.5 mm, with roller rope window,
with cable pressure plate, incl. overload protection, cable freewheel clutch, manual switch with approx. 5 m
control lever, acceptance of the cable winch, civil engineer test report, test book, operating instructions
Drive-on ramps
Length 3,500 mm - 2-part (2,000 mm + 1,500 mm), width 850 mm, load capacity 20,000 kg / pair (also for ramp loading), electric
for ramp loading), electro-hydraulically foldable and laterally movable - incl.
Electro-hydraulic pump unit. Drive-on angle approx. 8° with lowered rear axle
Ramp support made of hot-dip galvanized steel grating (like the floor of the loading bridge), with
with anti-skid toothing. Ramps can be pushed together to approx. 170 mm,
Hydraulic ramp extension. Ramp prepared for operation on loading ramp with full load capacity.
Ramp locking with 2 tension belts.
Ramp tip offs
