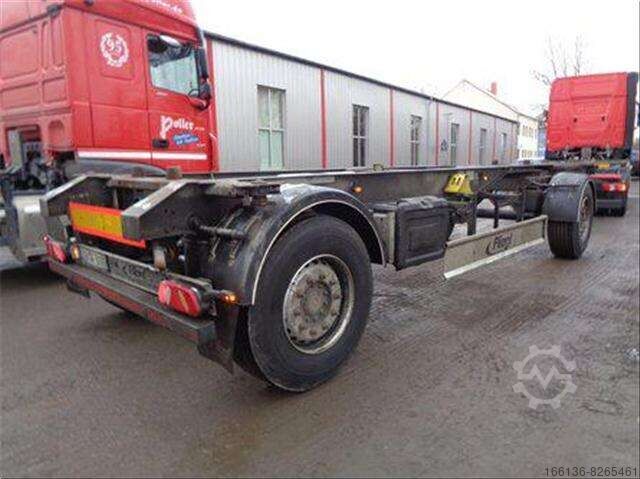

Сменное шасси Fliegl ZWP 180 Standard

Описание

Further information
Welded fine-grained steel construction, front stop, longitudinally adjustable and foldable, removable pair of guide rollers, front and rear, Swap Guard - swap body guide, in front of and behind each container lock, 4 container locks with sturdy outriggers on 20-base for swap bodies 7.15 and 7.45, turntable with strong ball bearing slewing ring, wheel chocks with holder, Aluminum side collision protection, side collision protection set inwards for optimum clearance to the swap body supports, steel underride guard, underride guard shortened for optimum clearance to the swap body supports, lighting system mounted in a protected position, quarter-shell mudguards at the front and half-shell mudguards at the rear, without impact protection, spare wheel holder in basket design, plastic toolbox
Drawbar (L = 2,200 mm) with tested 40 mm drawbar eye, drawbar length, drawbar height adjustment via spring
SAF disc brake axles with 430 mm disc diameter, axle/chassis laser-measured Reduction in tire wear and fuel consumption, air suspension
2-line compressed air brake systemColored line routing for easy servicing, air supply 208 liters, spring-loaded parking brake, 2 swap-proof coupling heads at the front, with connecting lines to the motor vehicle, EBS, electronic brake system with EBS plug at the front, with connecting cable, )Attention: The trailer vehicle may only be towed by towing vehicles that guarantee the effectiveness of the ABS!) with lifting & lowering valve, holding function in lowering / lifting position, brake release function via button on the vehicle next to H & S valve, for releasing the brake when coupled, EBS power supply must be guaranteed!
Pgecsi Ri Dzj R Nc Ifnjn
24 volt, multi-chamber lights, amber LED lighting at the side, 2 white position lights at the front, 2 white/red lane departure lights at the rear, 1 x 15-pin plug at the front, with connecting cable, additional LED work light(s) at the rear, switched via reversing light, LED work light at the front centered between the beams, shining to the rear, switched via reversing light
Country of registration: Germany, with Dekra approval and certificate (according to §13 EG - FGV), prepared for single-line license plate holder, warning sign according to ECE - 70, ADR warning sign at the rear, hinged, contour marking with reflective strips according to ECE R 048, white at the sides and red at the rear
