Сменное шасси

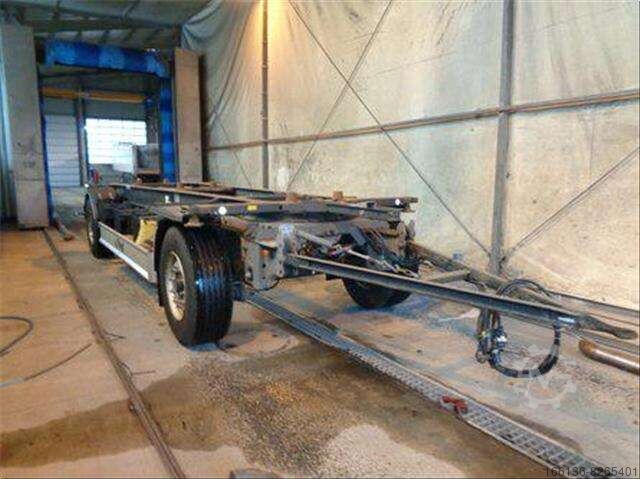

Сменное шасси Fliegl ZWP 180 Standard
Год выпуска
2019
Состояние
б/у
Отправить сообщение
Описание
Further information
Pgsc R Nsi Riz Hjc Ifnen
Welded fine-grained steel construction, front stop, longitudinally adjustable and foldable, pair of removable guide rollers, front and rear, pair of removable guide rollers, additional 4 container locks with sturdy outriggers on 20-base for swap bodies 7.15 and 7.45, turntable with strong ball bearing slewing ring, wheel chocks with holder
Aluminum side bumpers, steel underride guard, quarter-shell mudguards at the front and half-shell mudguards at the rear
1 spare wheel holder for 1 e-wheel, with wheel fastening set in basket design
Drawbar with tested 40 mm drawbar eye, drawbar height adjustment via spring
BPW disc brake axles, axle/chassis laser-measured Reduction in tire wear and fuel consumption, air suspension
2-line compressed air brake systemColor-coded line routing for easy servicing. Air supply 208 liters
Spring-loaded parking brake, 2 swap-proof coupling heads at the front, with connecting lines to the motor vehicle, EBS made by Wabco, electronic brake system with EBS plug at the front, with connecting cable, (Attention: The trailer vehicle may only be towed by towing vehicles that guarantee the effectiveness of the ABS!) with lifting & lowering valve, holding function in the lowering / lifting position in each case
24 volt, 4 x 3 chamber lights + 1 round reversing light + 1 round rear fog light, amber LED lighting at the side, 2 white position lights at the front, 2 white/red lane departure lights at the rear, 1 x 15-pin plug at the front, with connecting cable, 1 additional LED work light(s) at the rear, switched via reversing light, 1 LED work light at the front in the middle between the beams, radiating to the rear, switched via reversing light
Country of registration: Germany, with Dekra approval and certificate (according to §13 EG - FGV), prepared for single-line license plate holder, contour markings with reflective strips according to ECE R 048, white at the sides and red at the rear
Характеристики
Общий вес
18 000 кг
Собственный вес
2 620 кг
Максимальная грузоподъёмность
15 380 кг
Первая регистрация
04/2019
Конфигурация осей
2 оси
Размер шины
385/65 r22,5
