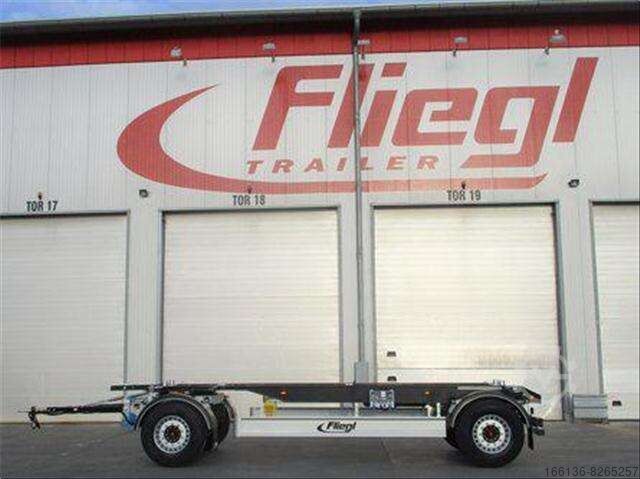

Сменное шасси Fliegl ZWP 180 Standard
Состояние
новое
Отправить сообщение
Описание
Further information
Chassis Changing turntable
Fine-grained steel welded construction
Fliegl V-Stream frame
Front stop, longitudinally adjustable and foldable
2 pairs of removable guide rollers, front and rear
4 container locks with sturdy outriggers on 20-basefor swap bodies 7.15 and 7.45
Turntable with strong ball bearing slewing ring
2 wheel chocks with holder
Aluminum side bumper
Side collision protection set inwards, for optimum clearance to the swap body supports
Steel underride guard
Underride guard shortened for optimum clearance to the swap body supports, lighting system mounted protected
Half-shell mudguards
Towing equipment Trailer turntable
Drawbar with tested 40 mm drawbar eye
Drawbar height adjustment via spring
Axles + suspension
SAF disc brake axles with 430 mm disc diameter
Axle/chassis laser-measured Reduction of tire wear and fuel consumption
Air suspension
Brake system
2-line compressed air brake systemColor-coded line routing for easy servicing.
Air supply 208 liters
Spring-loaded parking brake
2 swap-proof coupling heads at the front, with connecting lines to the motor vehicle,
EBS, electronic brake system with EBS plug at the front, with connecting cable,
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
with lifting & lowering valve, holding function in both lowering and lifting position
Wheels and tires
385/65 R22.5 make of the manufacturer's choice
Steel rims, factory silver
Electrical system
Pgjc R Nsi Rivljc Ifnjn
24 volt, multi-chamber lights, amber LED lighting at the side
2 white position lights at the front
2 white/red rear lane departure lights
2 x 7-pin interchangeable plugs at the front, with connecting cable,
2 additional LED work lights at the rear, switched via reversing light
1 LED work light at the front, centered between the carriers, radiating to the rear, switched via reversing light
Country of registration/ plates
Germany
with Dekra approval and certificate (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paint finish
Frame DB 7350 nova gray 10-year warranty against rusting through
Please note! These are archive images!
Характеристики
Общий вес
18 000 кг
Конфигурация осей
2 оси
Размер шины
385/65 r22.5
