Сменное шасси

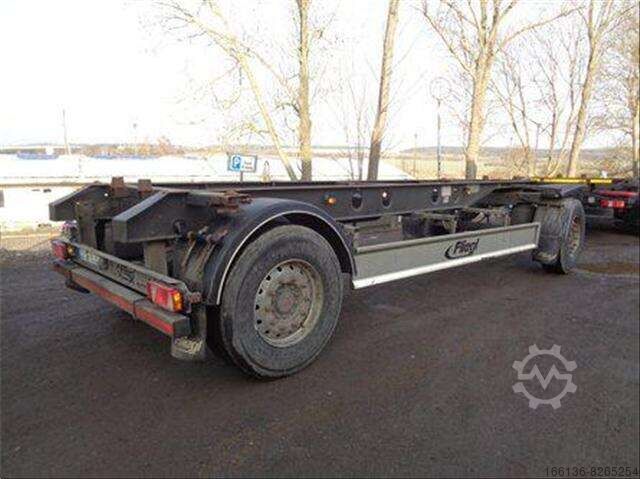

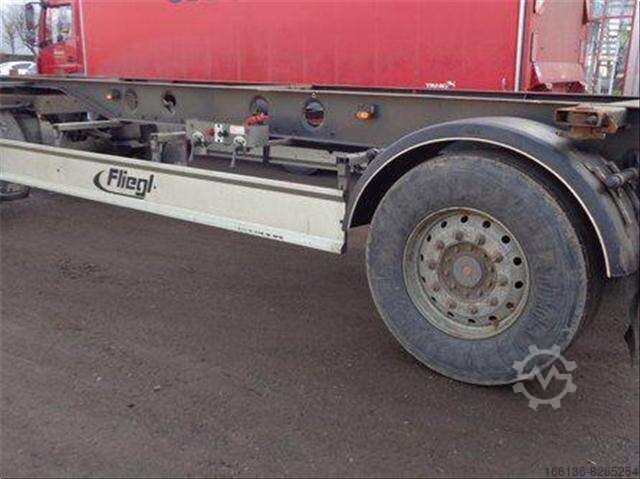

Сменное шасси Fliegl ZWP 180 Standard
Год выпуска
2015
Состояние
б/у
Отправить сообщение
Описание
Further information
Welded fine-grained steel construction, 4 container locks with sturdy outriggers on 20-base for swap bodies 7.15 and 7.45, front stop, longitudinally adjustable and foldable, 2 pairs of removable guide rollers, turntable with strong ball bearing slewing ring, wheel chocks with holder, aluminium side collision protection, galvanized steel underride guard, quarter-shell mudguards at the front and half-shell mudguards at the rear
Drawbar with tested 40 mm drawbar eye, drawbar height adjustment via spring
SAF disc brake axles, air suspension with lift & lower valve, with holding function for H&S,
Pgec R Nsi Rivhjc Ifnsn
2-line compressed air brake system, air supply 208 l, spring-loaded parking brake, 2 swap-proof coupling heads at the front, with connecting lines to the tractor unit, EBS, electronic braking system with EBS plug at the front, with connecting cable (Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!)
24 volt, multi-chamber lights, amber LED lighting at the side, 2 white position lights at the front, 2 white/red lane departure lights at the rear, 2 x 7-pin interchangeable plugs at the front, with connecting cable, 1 additional LED work light(s) at the rear, switched via reversing light
Country of registration: Germany, with Dekra approval and certificate, prepared for single-line license plate holder, contour markings with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Frame height lowered approx.: 1180 mm
Frame height raised approx.: 1380 mm
Frame height in driving position approx.: 1260 mm
Parking height approx.: 1220 to 1320 mm
Характеристики
Общий вес
18 000 кг
Собственный вес
2 650 кг
Максимальная грузоподъёмность
15 350 кг
Первая регистрация
03/2016
Конфигурация осей
2 оси
Размер шины
385/65 r22,5
