Сменное шасси

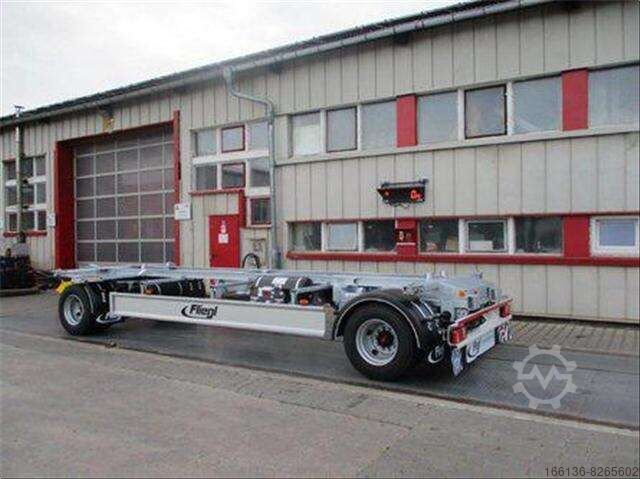

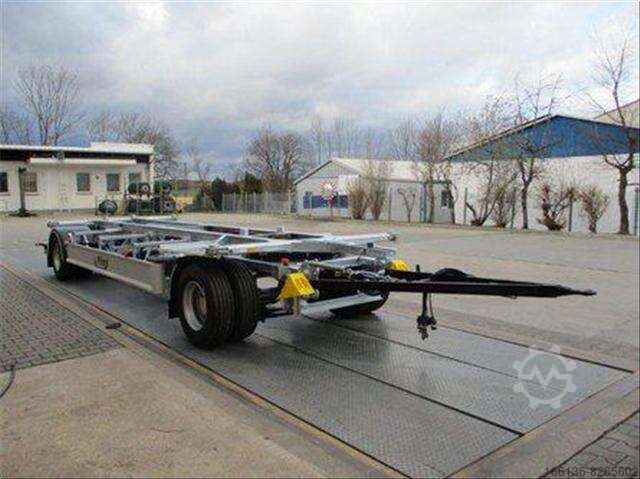

Сменное шасси Fliegl ZWP 180 Jumbo Z
Состояние
новое
Отправить сообщение
Описание
Further information
Chassis Changing turntable
Fine-grained steel welded construction
Front stop, longitudinally adjustable and foldable
Pair of removable guide rollers, front and rear
4 container locks with sturdy outriggers on 20-basefor swap bodies 7.15 and 7.45
Turntable with sturdy ball bearing slewing ring
2 wheel chocks with holder
Aluminum side bumper
Steel underride guard
Quarter-shell mudguards at the front and half-shell mudguards at the rear
Towing equipment Trailer turntable
Drawbar with tested 40 mm drawbar eye
Axles + suspension
SAF drum brake axles
Axle/chassis laser-measured Reduction in tire wear and fuel consumption
Air suspension
Brake system
2-line compressed air brake systemColor-coded line routing for easy servicing.
Spring-loaded parking brake
2 non-interchangeable coupling heads at the front, with connecting lines to the motor vehicle,
EBS, electronic braking system with EBS plug at the front, with connecting cable,
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
with lifting & lowering valve, holding function in both lowering and lifting position
Wheels and tires
Pjc R Nc Isi Ri Rcofnogn
235/75 R17.5 tires of the manufacturer's choice
Steel rims in twin arrangement, factory silver
Electrical system
24 volt, multi-chamber lights in LED with resistor, amber LED lighting at the side, license plate lighting in LED, (Note! with certain towing vehicles, misdiagnosis may occur although the function is given)
2 white front position lights in LED
2 white/red rear lane departure lights in LED
1 x 15-pin plug at the front, with connecting cable,
Additional LED work light(s) at the rear, switched via reversing light
Approval / plates
Germany
with Dekra approval and certificate (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paint finish
Frame DB 7350 nova gray
Attention: Archive pictures!
Характеристики
Общий вес
18 000 кг
Собственный вес
3 055 кг
Максимальная грузоподъёмность
14 945 кг
Конфигурация осей
2 оси
Размер шины
235/75 r17,5
