Сменное шасси Fliegl TWP 180 Maxi L

Описание

Further information
Chassis Wechel central axle trailer
Fine-grained steel welded construction
Front stop, longitudinally adjustable and foldable
Pair of removable guide rollers, front and rear
4 container locks with sturdy outriggers on 20-basefor swap bodies 7.15 / 7.45 and 7.82
1 pair of front gear support legs, with straight lower section and single-sided operation in FR right
2 wheel chocks with holder
Aluminum side impact guard
Side collision protection set inwards, for optimum clearance to the swap body supports
Steel underride guard
Half-shell mudguards
Spray flaps
Towing device central axle trailer
Towbar with tested 50 mm towing eye, forwarding agent version (not suitable for trucks with tail lift, or exact testing still required in the event of an order)
Towbar clamped/bolted, easily replaceable and partially adjustable in length!
Towbar under-coupler, free towbar length approx. 2200 mm
Towing height: 380 (Note! is not printed in the offer, compare with the technical data on the first page)
Folding bracket with spring support on the drawbar, for guiding the connecting cable to the truck
Axles + suspension
SAF disk brake axles
Axle/chassis laser-measured Reduction of tire wear and fuel consumption
Air suspension
Brake system
2-line compressed air brake systemColor-coded line routing for easy servicing.
Air supply 208 liters
Spring-loaded parking brake
2 swap-proof coupling heads at the front, with connecting lines to the engine trolley, connection in FR right-hand side
EBS, electronic brake system with EBS plug at the front, with connecting cable, connection in FR right-hand side
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
with lifting & lowering valve, holding function in lowering / lifting position respectively
Vehicle - driving stability system
Wheels and tires
385/55 R22.5 Manufacturer's choice
Steel rims, factory silver
Electrical system
24 volt, multi-chamber lights, amber LED lighting at the sides
2 white position lights at the front
2 white/red rear lane departure lights
2 x 7-pin interchangeable plugs at the front, with connecting cable, connection in FR right-hand side
Additional LED work light(s), integrated at the rear, switched via reversing light
LED work light at the front, centered between the carriers, radiating to the rear, switched via reversing light
Country of registration / plates
Pgec R Nc Isi Riw Ujfnen
Germany
with Dekra approval and certificate (according to §13 EG - FGV)
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paint finish
Frame DB 7350 nova gray10-year warranty against rusting through

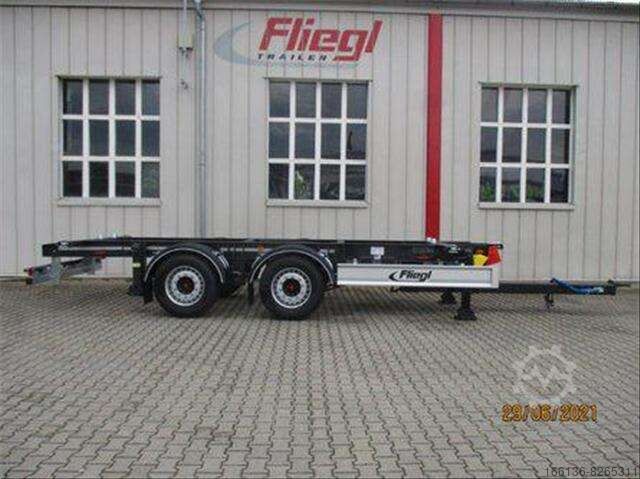

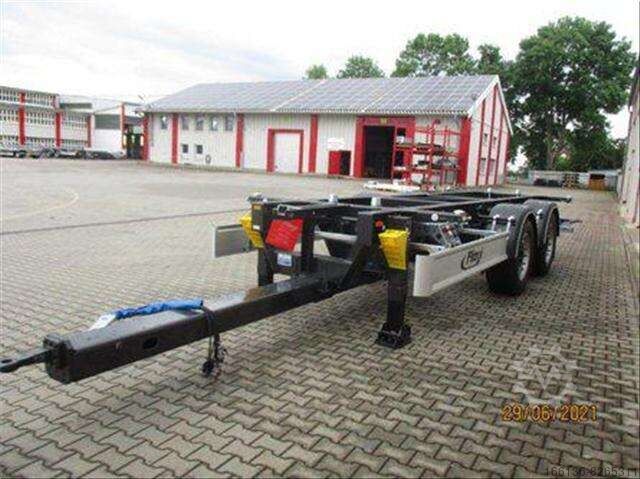

Attention: Archive pictures!
