Самосвальный прицеп
Самосвальный прицеп Wiese Abrollanhänger Schlittenanhänger
Год выпуска
2025
Состояние
новое
Цена без учета НДС
5148320.00
Отправить сообщение
Описание

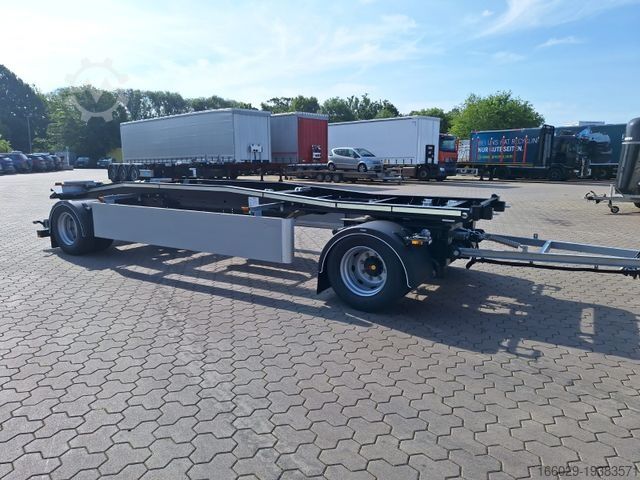

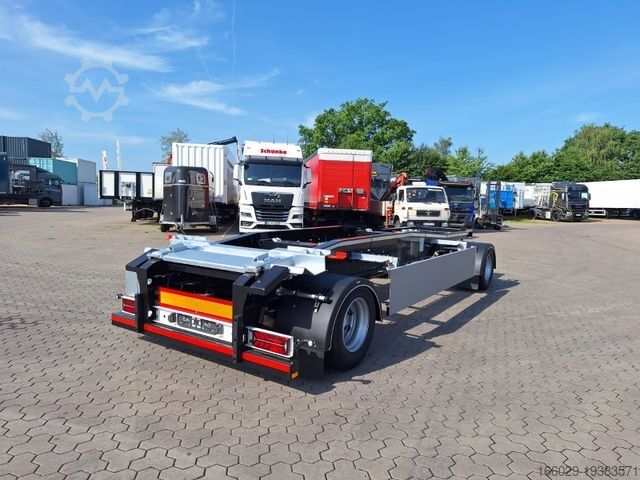

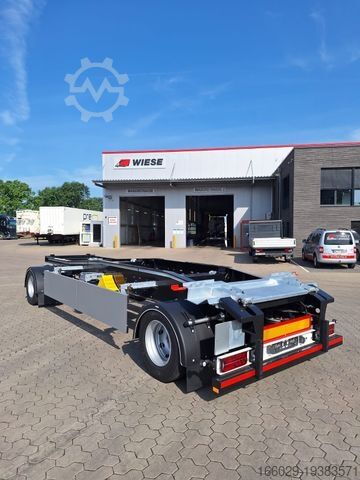

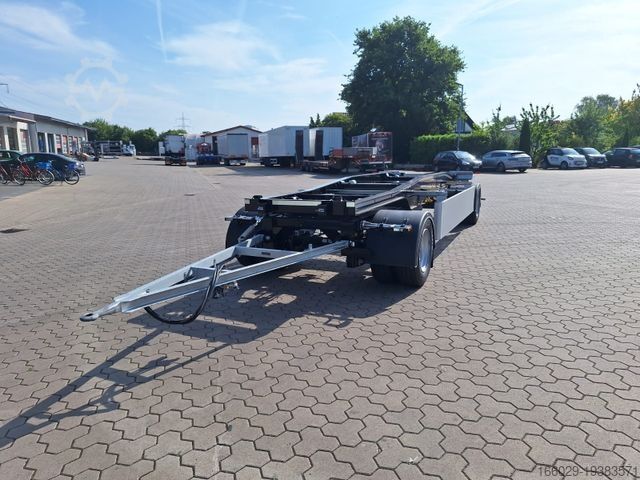

18 to Roll-Off Trailer, Sled with 19.5" Twin Tires
* Sled trailer for transporting roll-off and sliding containers 5000-7000 mm according to DIN 30722
* Axle loads: 20,000 kg (2 x 10,000 kg)
* Ride height unladen front approx. 1150 mm, center approx. 1275 mm (main beam upper edge not straight)
* Container support height approx. 1185 mm
* Coupling height (center) approx. 700 mm unladen
* Straps made from ST52-3, web plate from QSTE380, other parts ST37 or QSTE380
Pgec R Nc Ifswtvkxenen
* Main beam straps top 120x15 mm, bottom 120x10 mm

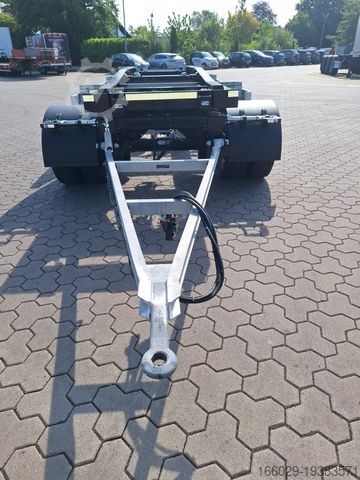

* Towing eye ø 40 mm
* Bogie for air suspension, including 90 mm high ball race

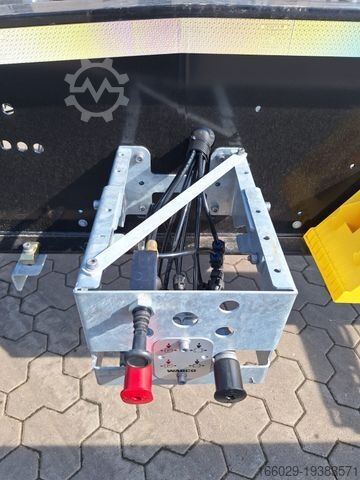

* Electrical/brake connection lines routed on the left side of the drawbar
* Distance center of towing eye to front edge of headboard approx. 2600 mm
* Axles
* SAF
* Axle 10 t, disc brake, 19.5" twin tires
* Operation of the locks on the left side between the axles, without lift/lower device
Brake/ABS
* EBS brake system with Roll Stability Program
Tires
* Branded tires 265/70 R 19.5 twin, wheel centering by hub
Lighting
* Lane lights (LED)
* 15-pin plug/socket at the front
* 24-volt lighting system with large multifunction tail lights

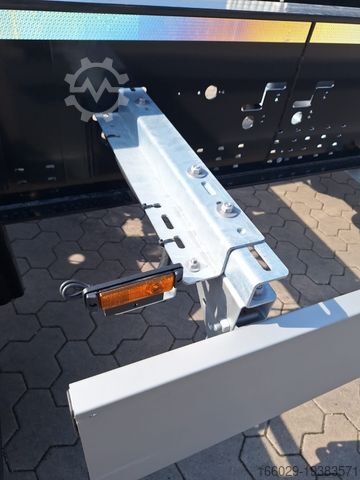

* Side marker lights (LED) with reflectors
* Position lights front, bottom, white, 1 each right and left (LED)

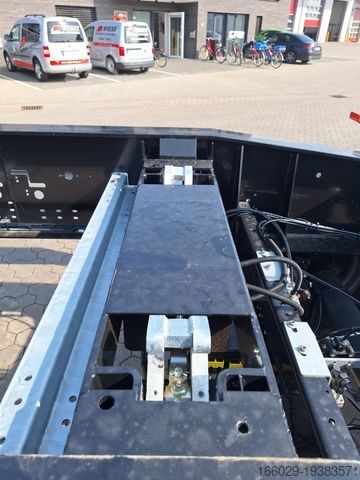

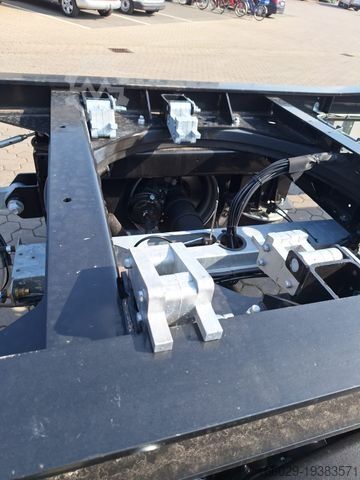

* Two pairs of special hook locks for roll-off containers (pneumatically controlled), sled mounted on rollers, rear self-centering
* Chock with holder
* Safety system for hook locks: can only be opened with the parking brake activated; if the brake is released, the hooks lock automatically
* Plastic toolbox approx. 600x400x400 mm

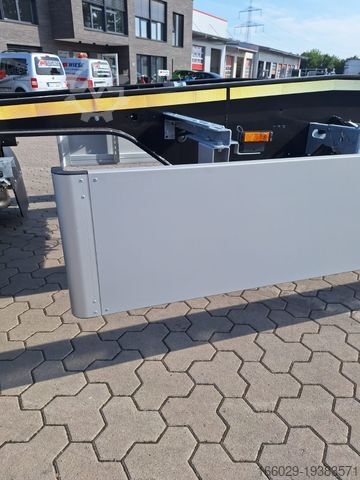

* Side underrun protection, closed design
* Frame coating/painting
* Turntable painted in RAL 9005
* Parts painting – drawbar galvanized, unpainted
Характеристики
Общий вес
18 000 кг
Общая ширина
2 500 мм
Общая высота
1 250 мм
Оборудование
ABS
Максимальная грузоподъёмность
14 570 кг
Конфигурация осей
2 оси
