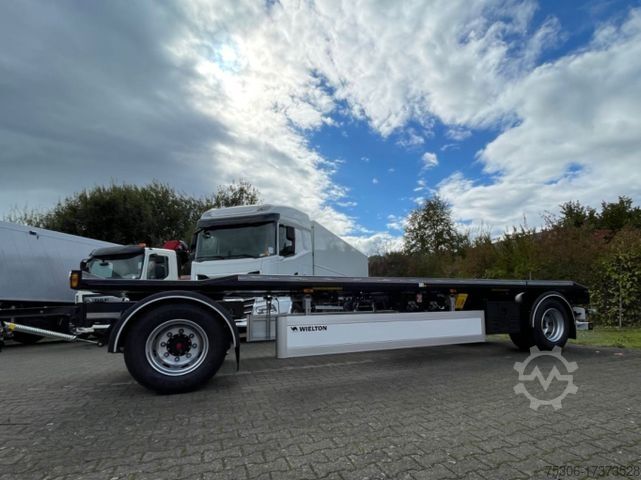

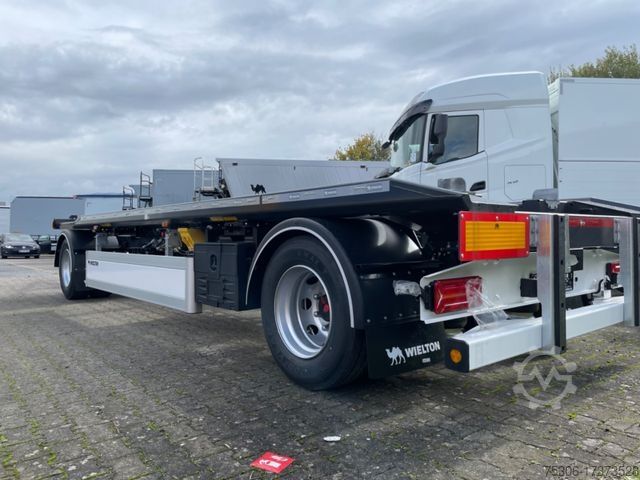

Самосвальный прицеп WIELTON 2-Achs Außenroller-Abrollanhänger

Описание

Total length (without drawbar) 7190 mm
Total length 9890/9590 mm
Available drawbar lengths 2300/2400/2500/2600/2700/2900 mm
Wheelbase 5150 mm
Rear slope 1015 mm
Load bed length 6900 mm
Maximum set of the rear roller eye (with adjustment: -300 mm) 840 mm
Min. set of the front roller eye (with adjustment: 300 mm) 175 mm
Height of the drawbar eye approx. 690/790 mm, 705/805 mm
Total height of the load bed 1100 mm, 1075 mm
Total width 2550 mm
Total width of the container stringer 1) 1060 mm / 1090 mm
Max. width of the load bed 2170 mm
Track width 1888 mm
Tires 265/70 R19.5?
Suspension: Pneumatic
Maximum permissible total load: 18,000 kg
Minimum deadweight 2) 3,700 kg
1) Container longitudinal beam guides according to DIN 30722-1 (1,065 mm). The weight refers to the lightest version, with a tolerance of ±3%.
Chassis: Steel construction, made of high-strength S700 steel
2 SAF disc brakes 19.5?, with an axle load of 9,000 kg per axle
Air suspension
Steel air reservoir
Extra tension spring for the drawbar

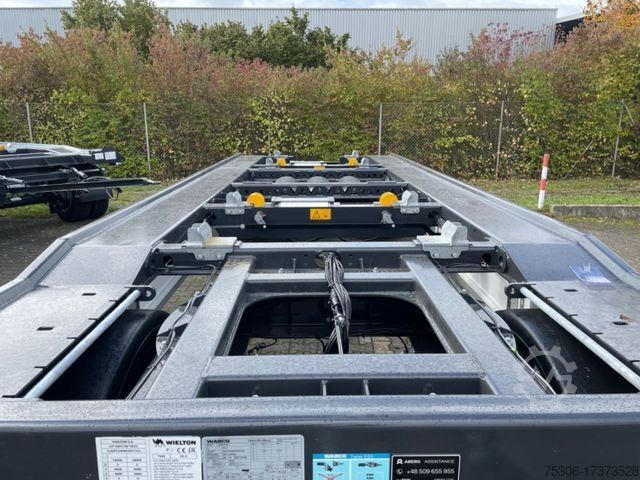

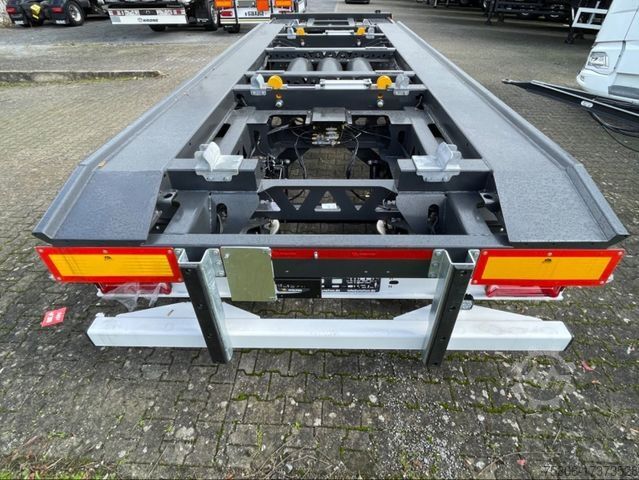

Loading bed for container transport with an internal length of 5,500 mm to 7,200 mm, compatible with DIN 30722
Pneumatic container locking system
Mechanical container locks
Foldable side impact protection according to Regulation 73 EKG ONZ made of filled aluminum profile
Steel underrun protection according to Regulation 58 EKG ONZ
Lamp holder made of Steel
Rear impact protection blocks, steel

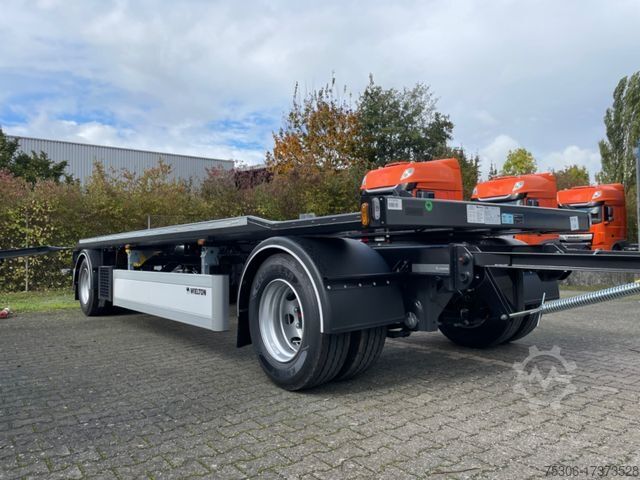

Towing bar 2300 mm, towing bar with rubber buffer
Towing bar eye diameter Ø 40
Chassis accessories
2 plastic lower chocks with brackets
Large impact buffers, rear of the rear frame
Side impact protection according to ECE
Rear steel underrun protection according to ECE
4 PVC half-shell fenders with anti-spray splash protection system

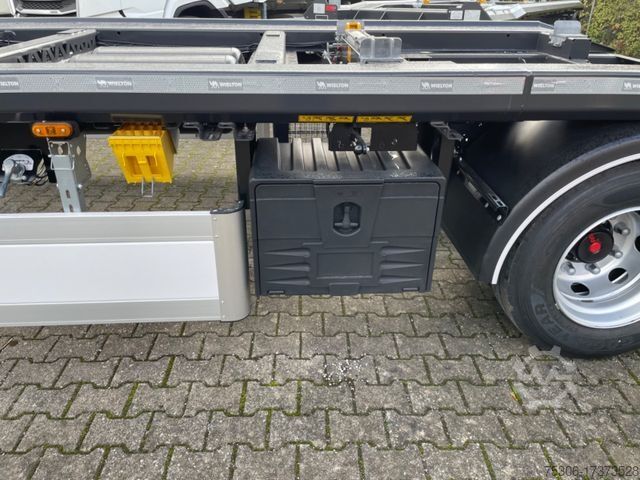

1 toolbox
1 net basket
Foldable A-shield
Braking system
Braking system according to ECE
Anti-lock braking system, WABCO EBS 4S/2M with Roll Stability System, RSS.
Meets ADR requirements
Electrical installation
24-volt system according to ECE full LED Aspock ECO LED II
1x LED reversing light
LED: brake light, position light

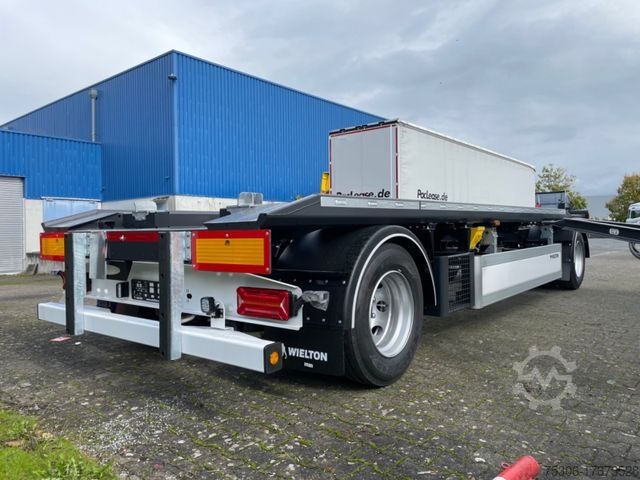

Multi-chamber rear lights: tail light, fog light, indicator
License plate light (LED)
Side marker light (LED)
2x 15-pin Power socket and EBS connector
Tires

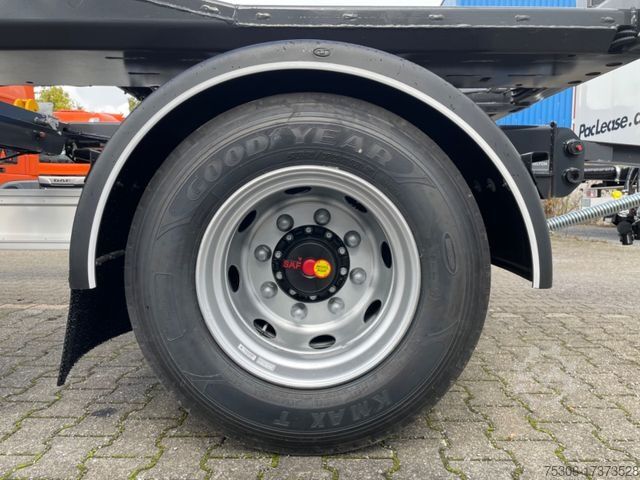

Twin tires (8-ply) 265/70 R 19.5
Premium tire brand: Good Year or Bridgestone
Steel rims
Paintwork
All steel elements shot-blasted twice before painting
Cathodic dip-coating as a primer for optimal corrosion protection
Dust-free painting of the top coat by robot
MB 7350 frame
MB 7350 drawbar
Black axles
Silver rims
Black wheel hubs
White side bumper
Pjc R Nc Ieuwhm Eofnsgn
White rear light bracket
White underride protection
Yellow locking hook paint
Signage
Wielton lettering on the rear light bracket and side bumper
Type plate in accordance with EU regulation with technical specifications
Partial contour markings on the sides, white, yellow rear
2 reflective signs on the rear
Documents
Operating manual in German/English
Registration
The technical condition of the vehicle complies with the registration regulations for Germany
Vehicle complies with EC type approval with Certificate of Conformity (COC)
