Самосвальный прицеп
Самосвальный прицеп S36s 36cbm Abroll *Neu*sofort
Год выпуска
2025
Состояние
новое
Отправить сообщение
Описание
1x RAL 7011 Iron Grey immediately available
1x RAL 5010 Gentian Blue immediately available
Mounting fittings for hook systems according to DIN 30722-1 with rear external rollers and subframe made of INP 180,
External rollers greasable and replaceable
Mounting bracket Ø 50 mm
Hook height 1,570 mm
Base pan made of 4 mm St 37.2 (S235JR)
Side walls made of 3 mm St 37.2 (S235JR)
Top end profile made of square tube 120 x 80 x 4 mm
Bottom end profile made of square tube 120 x 60 x 3 mm
Rib-free design
Floor ribs spacing 750 mm
Rib profile U 80 x 50 x 3 mm
Container body completely welded
Double-wing door at the rear with Dutch door lock and side safety central lock (ZV) according to UVV
Continuous tarpaulin and net hooks

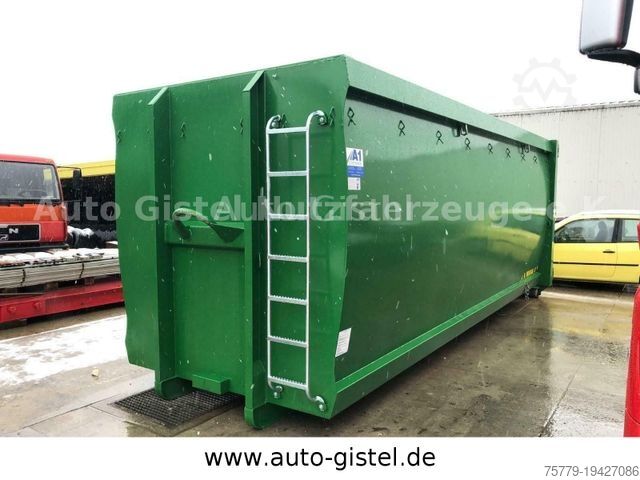

Ladder rungs according to UVV at the front on the left in the direction of travel
Container primed internally once, externally double primed and externally double coated in one color
UVV sticker with safety instructions
Container tested and approved according to BGR 186
Capacity: approx. 36 cbm
Pgjcswu N Ere R Nc Ifnen
All information without guarantee - subject to change, errors and prior sale possible
Характеристики
Общий вес
15 000 кг
Максимальная грузоподъёмность
12 260 кг
Ширина пространства для загрузки
2 300 мм
Длина грузового отсека
6 500 мм
Высота грузового отсека
2 400 мм
Объем грузового пространства
36 м³
