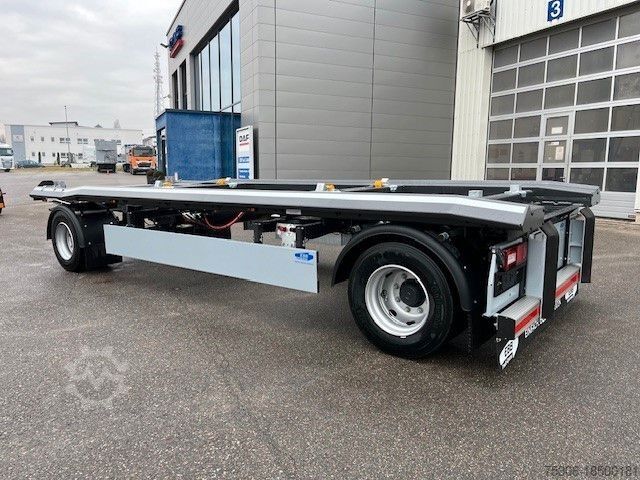

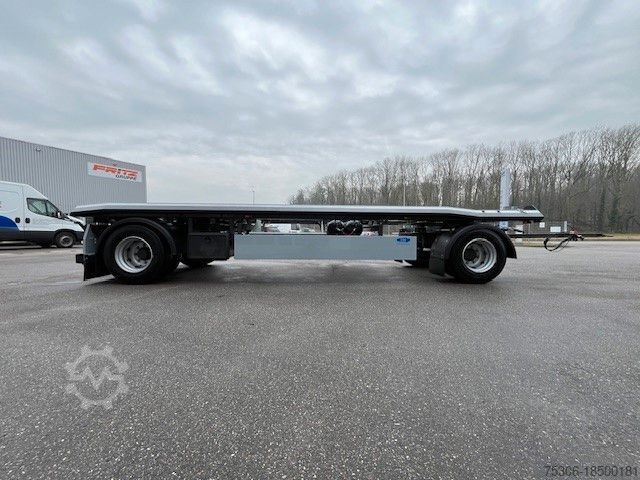

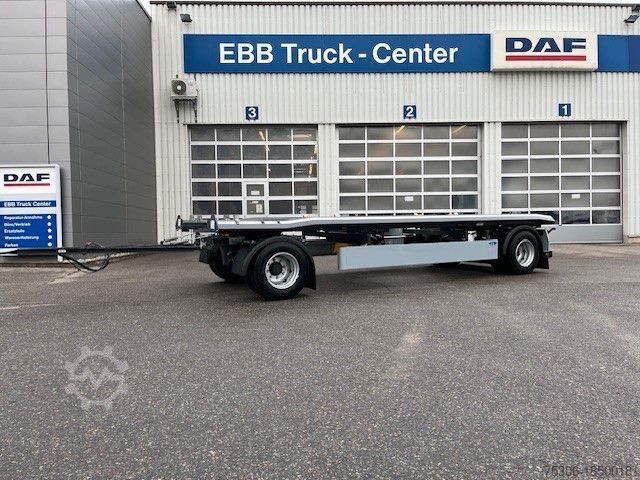

Самосвальный прицеп Außenroller 20 AR

Описание

Dimensions and Weights
External reference length approx. 6,896 mm
Overall width approx. 2,500 mm
Loaded ride height approx. 1,175 mm
Rollway length approx. 6,880 mm
Wheelbase 5,100 mm
Complete empty weight approx. 3,860 kg
Technically possible total weight approx. 20,000 kg
Permissible total weight approx. 18,000 kg
Payload approx. 14,140 kg
For containers with a length of 5,000 to 7,000 mm according to DIN 30722.
?Technical changes reserved.
Chassis
Chassis with cross members, welded box-type idler beams made of QSTE steel

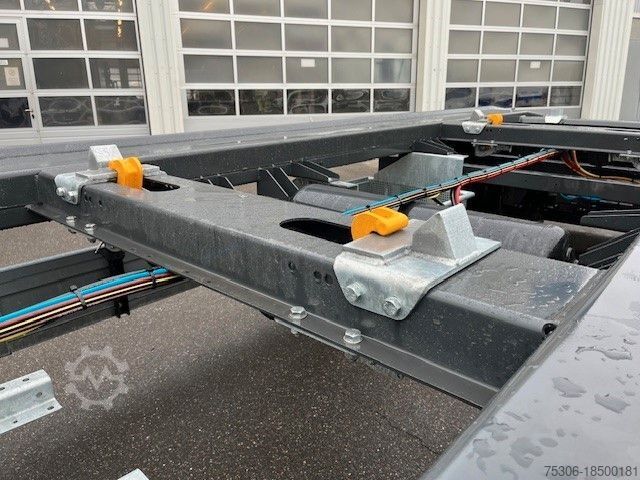

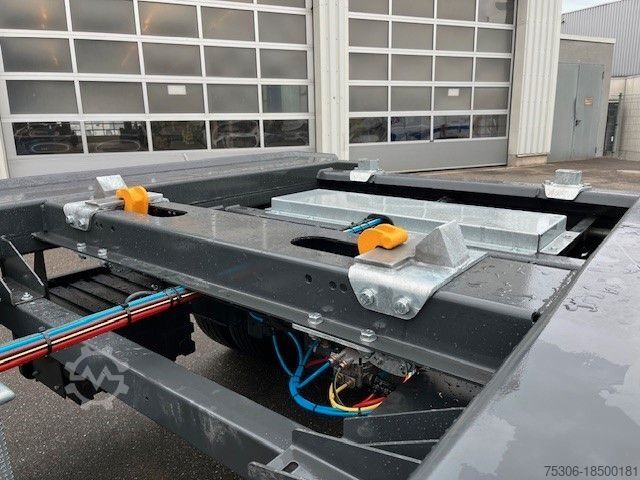

4 pneumatically operated container locks
Side guards closed according to Directive 89/297/EEC. (Item 2)
Spare wheel holder in basket design for 2 spare wheels including mounting kit for 1.
Bogie
Bogie 980 FM including ball-bearing turntable 90/1100/22 (low-maintenance).
Drawbar

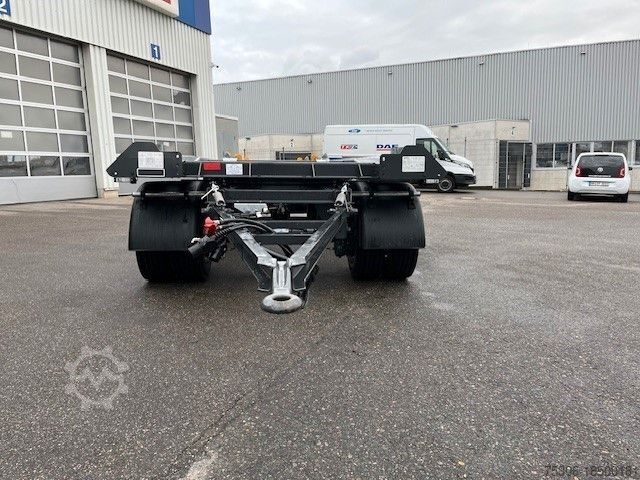

Drawbar 2600/980/100/30, inclined drawbar eye with height adjustment (tension spring with turnbuckle).
Pec R Novywwzsc Ifnjgn

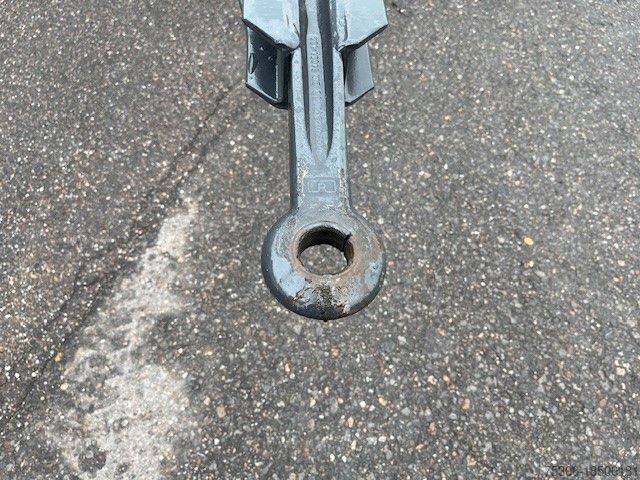

Drawbar with DIN drawbar eye, inner diameter 40 mm, outer diameter 110 mm, thickness 30 mm.
Axles
2 x 10 t axles for 19.5 disc brakes, manufacturer's choice. Brake disc diameter approx. 370 mm, wheel mounting by centering according to DIN 74 361 Part 3.
Braking system
Compressed air brake system according to EU directive with Duomatik coupling head
Conventional air suspension system, EBS type 4S/3M, electronic braking system with ROLL Stability, double-diaphragm spring-loaded cylinder on the rear axle, release valve for separate release of the spring-loaded brake.
Lighting system

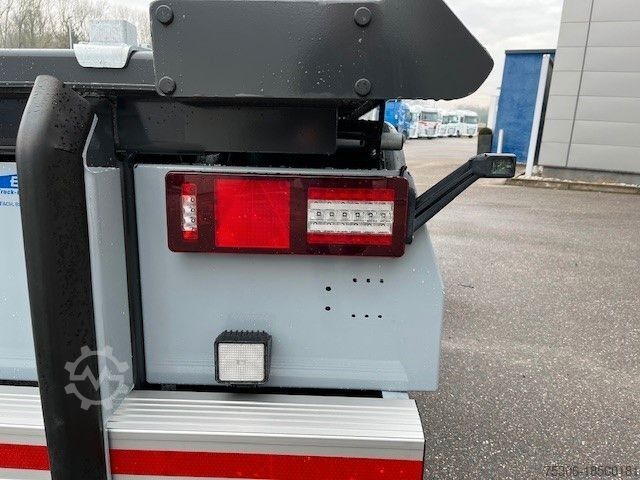

24-volt full LED lighting system in accordance with Directive 76/756/EEC with multi-chamber light and license plate light integrated into the light panel, manufacturer's choice

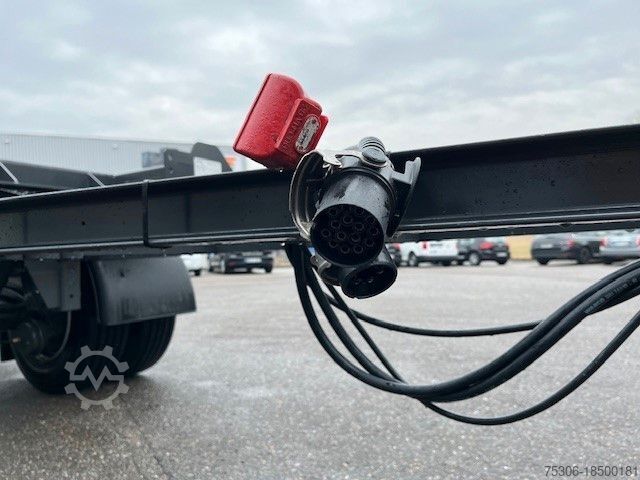

1 x 15-pin connector
6 x LED side marker reflectors, flashing
2 x white LED front marker lights
2 x LED lane departure lights, separately mounted at the rear
1 x LED reversing light
Wheels/Tires
Regional transport tires
8 x 265/70R19.5 (7.5x19.5)
Steel wheels, offset 138,
Unpainted wheel nuts.
Including tire pressure monitoring

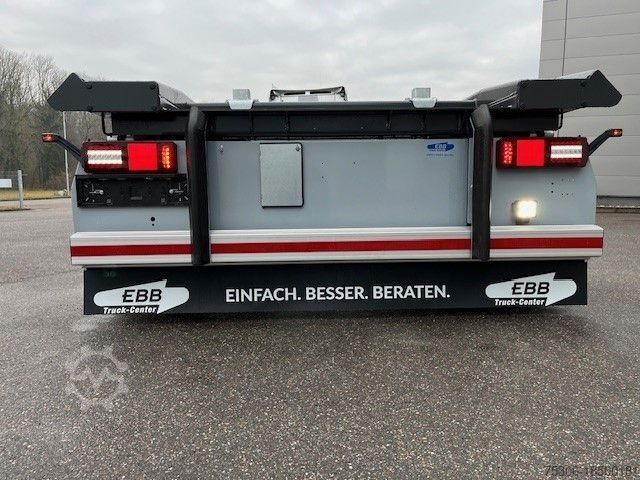

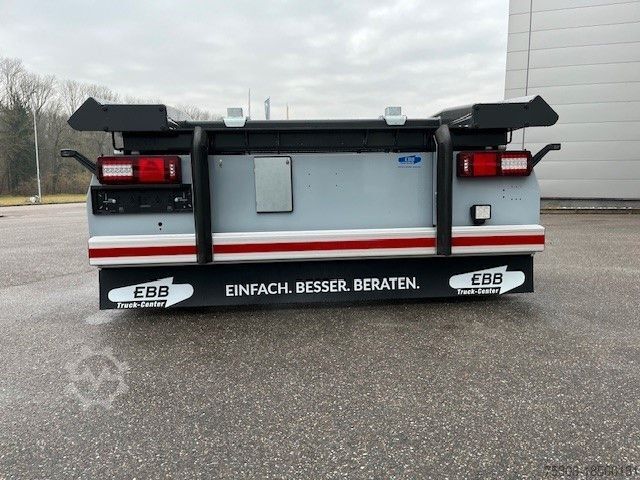

Underrun protection
Aluminum underrun protection.
Two vertical delta bumper profiles serve to protect the rear during loading and unloading.
Accessories
4 plastic half-shell fenders, front and rear, single-wheel fenders
4 anti-spray mud flaps, neutral
1 lockable plastic toolbox
1 wheel chock with bracket
1 license plate holder
1 A-plate for transporting waste materials
1 hanging net box
Paintwork
Chassis color: MB 7350 Nova Gray
Wheel hub color: black cathodic dip-coat
Wheel rim color: RAL 9006 Silver
Rear contour markings: red
Side contour markings: white
Closed SSE: RAL 7001 Silver Gray
Rear end/light panels: RAL 7001 Silver Gray
Underrun protection: anodized aluminum (silver)
Locking hook: yellow
Documentation
Commissioning and braking report
Operating instructions
Axle manufacturer's maintenance instructions
DEKRA report (item 5)
Side guard closed i
Sticker EBB
DEKRA Report
All information is provided without guarantee. Errors excepted. Subject to prior sale.
