Самосвальный прицеп
Самосвальный прицеп Abrollcontainer S20 *10cbm* 2x sofort verfügbar
Год выпуска
2025
Состояние
новое
Отправить сообщение
Описание

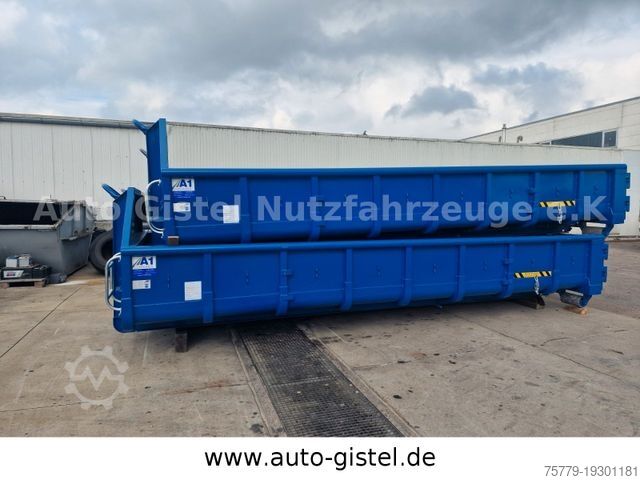

1x RAL 5010 Gentian Blue

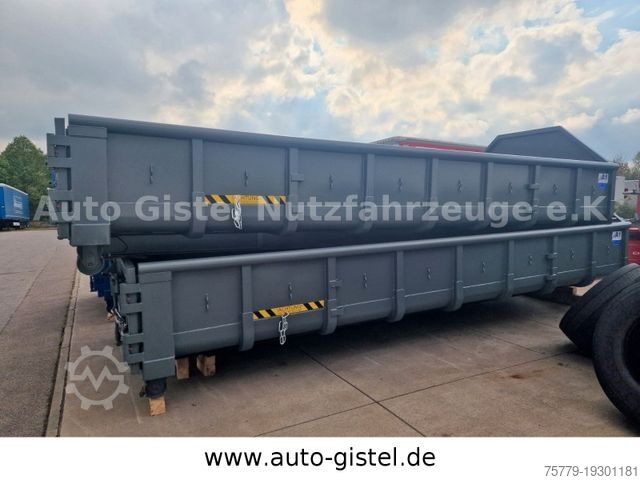

1x RAL 7011 Iron Grey
Immediately available from stock

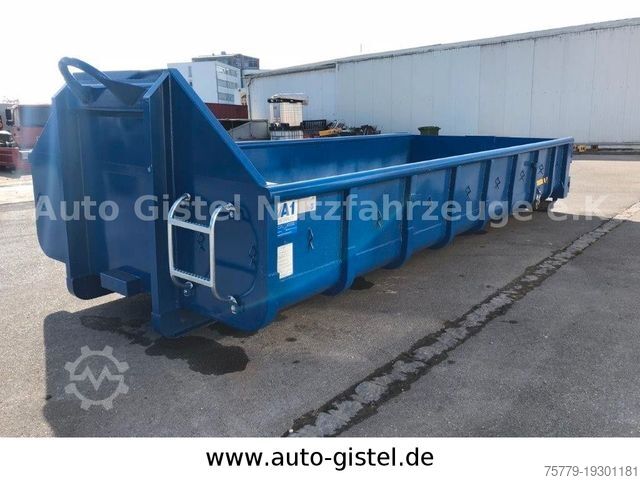

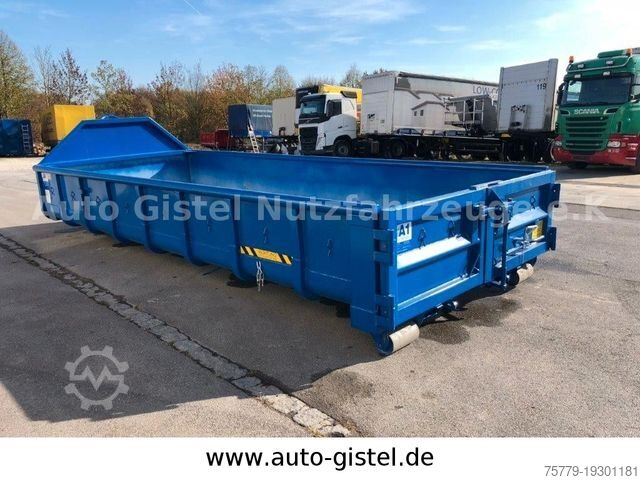

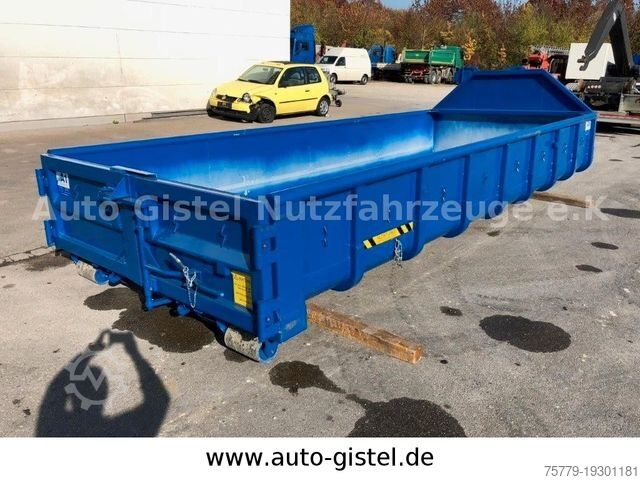

Roll-off container according to DIN 30722-1 (open design)
Standard container type S 20
Internal dimensions: approx. 6.0 x 2.3 x 0.75 meters (all dimensions are approximate)
Usable capacity: approx. 10 m³
Empty weight: 1,900kg

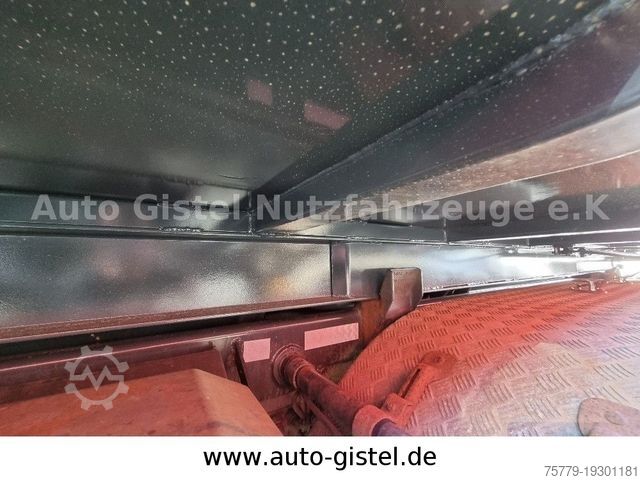

- Mounting fittings for hook systems according to DIN 30722-1 (15,000 kg) with rear external rollers and subframe made of INP 180
- External rollers greasable and replaceable
- Mounting bracket Ø 50 mm, hook height 1,570 mm
- Base pan made of 5 mm St 37.2 (S235JR)
- Side walls made of 3 mm St 37.2 (S235JR)
Pgec Rewqa H Ss Nc Ifnsn
- Rounded base pan, with 250 mm radius to the side wall
- End profile made of robust round tube Ø 90 mm
- Rib spacing 750 mm | Rib profile U 80 x 50 mm

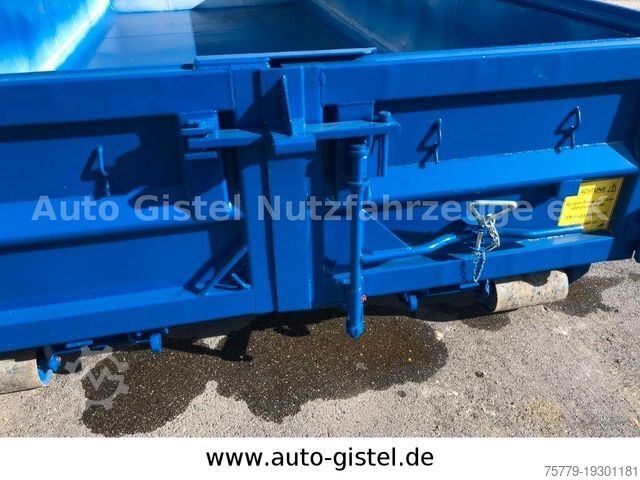

- Double-wing door at the rear with Dutch door lock and side safety central lock (ZV) according to UVV
- Door lock with container door opening aid
- Continuous tarpaulin and net hooks
- Galvanized climbing ladder according to UVV at the front end
- Container primed internally once, externally double primed and externally double coated in one color
- UVV sticker with safety instructions
- Container tested and approved according to BGR 186
All information without guarantee - subject to change, errors and prior sale reserved
Характеристики
Общий вес
15 000 кг
Максимальная грузоподъёмность
13 100 кг
Ширина пространства для загрузки
2 300 мм
Длина грузового отсека
6 000 мм
Высота грузового отсека
750 мм
