Низкорамный прицеп

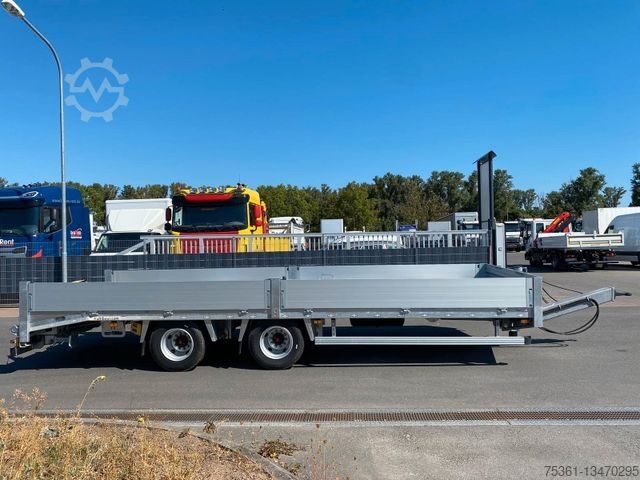

Низкорамный прицеп HUMBAUR HBTZ 197224 BS abgeschrä. 19t SAF er
Состояние
б/у
Отправить сообщение
Описание
HUMBAUR HBTZ 197224 BS-Premium bevelled tandem !!!RENTAL!!!
* 19,000 kg tech. GG, 18,000 kg GVW
* German vehicle
* As good as new
* Payload 14,440 kg
* Towing eye 50 mm
* Wheelbase 1,400 mm
* Aluminum side walls 400 mm
* Loading height approx. 870 mm
* Drawbar length approx. 1,800 mm
* Coupling height approx. 750 - 1,050 mm
* Ramp angle approx. 13°
* SAF axles
* Air suspension
* Air control for raising and lowering
* Drum brakes
* Beveled rear
* Telescopic folding supports at the rear
* Geared support winch 12 ton load and fast gear
Psc R Nep Ncw Doc Ifnegn
* Ramp length 3,100 mm
* Ramp width 760 mm
* Air connections with red and yellow coupling head
* Galvanized drawbar, infinitely height adjustable
* 15-pin power connection
* ABS connection
* Loading area L/W/H/ 7,200 mm, 2,450 mm, 400 mm
* Front wall galvanized steel pluggable 400 mm
* Softwood floor 40 mm
* 4 pairs of lashing rings 8,000 daN per tension ring
* 8 pairs of lashing rings 1,000 daN per lashing ring
* Ramp jack 1 spring mechanism per ramp
* Ramp lock with turnbuckle
Prior sale and errors are expressly reserved!
Sale exclusively in accordance with our terms and conditions
Important note? Important information: Despite careful checking of all details in our offer, errors may creep in. These are sometimes caused by transmission errors in the systems of the various platform providers. We would therefore like to point out that all information is provided without guarantee and does not constitute a legal claim.
Legal: This sales advertisement does not constitute an offer within the meaning of Section 145 of the German Civil Code. Rather, it is information for the initiation of a contract. The information provided here is without guarantee and therefore does not represent any guaranteed properties.
Характеристики
Общий вес
19 000 кг
Оборудование
ABS
Максимальная грузоподъёмность
14 440 кг
Первая регистрация
06/2024
Конфигурация осей
2 оси
Ширина пространства для загрузки
2 460 мм
Длина грузового отсека
7 200 мм
Высота грузового отсека
400 мм
