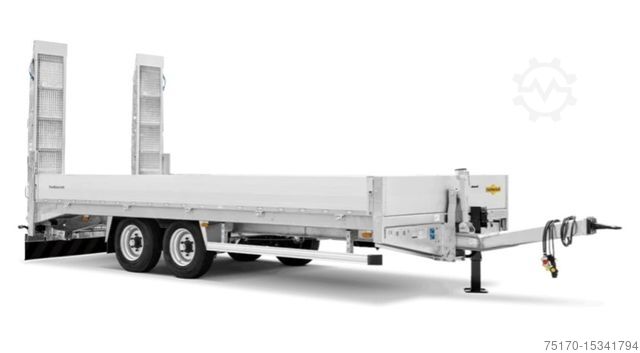

Низкорамный прицеп HUMBAUR HBT 106224 BS Basic abgeschrägt

Описание

Humbaur HBT 106224 BS Basic bevelled---- * Technical data:
* Internal dimensions: approx. 6,200 mm x 2,450 mm x 400 mm
* Overall dimensions: approx. 8,400 mm x 2,550 mm x 3,260 mm
* Permissible. Total weight: 11,900 kg
* Payload: approx. 9,100 kg
* Wheelbase: 990 mm
* Tires: 235/75 R17.5 inches
* Loading height: approx. 920 mm
* Drawbar length: approx. 1,800 mm
* Coupling height: approx. 750-1,000 mm
* Ramp angle: approx. 16°
* Plank length: approx. 2,600 mm
* Plank width: approx. 540 mm
* 3 pairs of lashing rings, 3,000 kg per lashing point
* Lashing rings sunk into the bridge floor
* 7 pairs of lashing rings, 1,000 kg per lashing point
* Lashing rings in the outer frame----
* Standard equipment:
* Axles
* Axles from well-known manufacturers
* Suspension
* Low-maintenance parabolic suspension with load compensation
* Tires
* Tires according to Manufacturer's choice on steel rim
* Brake system
* ABS brake system in accordance with ECE directive with ALB function
* ABS plug connection ISO 7638
* Spindle parking brake
* 2 interchangeable coupling heads red/yellow ISO 1728
* Towing device
* Towing tube with DIN screw towing eyelet Ø 40mm, galvanized, infinitely adjustable via crank
* Electrics
* 24V lighting system with multi-chamber rear lights and LED side marker lights
* 15-pin connector plug for lighting
* Frame
* Solid, welded and hot-dip galvanized frame
* Rear area beveled, gradient 12°
* Floor
* Floor covering made of 40mm softwood planks
* Side walls
* Side walls made of anodized aluminum
* Can be folded down to the side and removed
* Galvanized corner stanchions, can be plugged in at the front and rear
* Ramps
* 2 foldable steel ramps, 1-piece, galvanized, can be moved sideways
* Ramp jack 1 gas pressure spring per ramp
* Ramp securing on rear stanchion
* Ramp covering made of galvanized grating
* Support
Psceryhics R Nc Ifnjgn
* Reinforced 12 t geared support winch with load and fast gear
* 2 telescopic folding supports on the left and right at the rear of the vehicle
* Equipment
* Steel fender with anti-spray mats
* Side impact protection up to the 1st axle, foldable
* 2 wheel chocks with holder
* Contour marking on the side and rear
* Space for a two-line license plate on the left ramp
We can make you a leasing or financing offer on request.
Mr. Seidel (Tel. will be happy to assist you.
You can find more information on our homepage.
!!! Errors, changes and prior sale reserved!!!
