Лесовозный прицеп

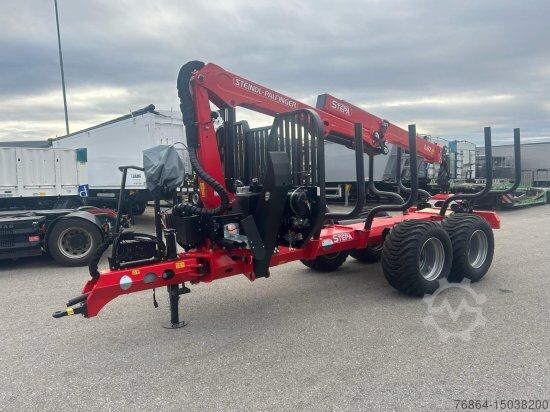

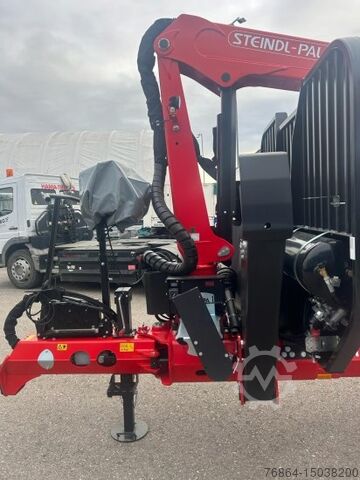

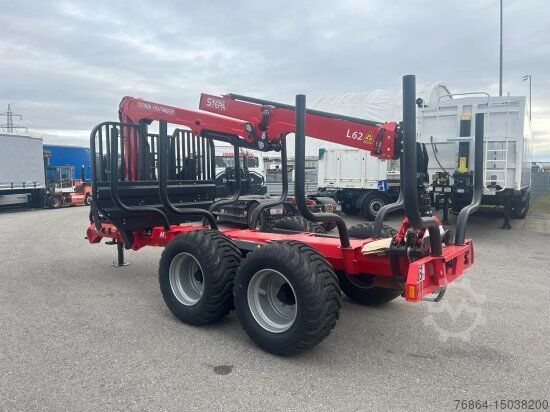

Лесовозный прицеп STEPA M-16 FORSTANHäNGER MIT STEINDL PALFINGER FORSTKRAN L, 2-ACHSIG 4- RUNGENPAARE
Состояние
новое
Цена без учета НДС
9181600.00
Отправить сообщение
Описание

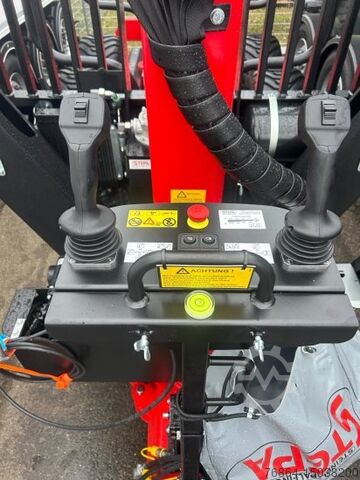

Steindl Palfinger forestry trailer 16 tonnes | Articulated drawbar with 2 cylinders, gearbox support foot, | 10 stanchion holders welded to the outside of the frame, 4 pairs of stanchions, | LED Stvo lighting system | Tires 550/45-22.5, FLAP-DOWN | Extendable frame, HEXAGONAL FRAME | 4 drum brakes o350mm for 8-hole rim - swing arms with wheelbase 1.20m | Pneumatic brake system with 2 Tristop cylinders and 2 diaphragm cylinders including wheel chocks, | License plate lighting and type approval 25 km/h | Bottom hitch | Support load: 2,000kg Errors, input and advance sales reserved. Steindl Palfinger forestry crane L | Standard equipment 9.5m RW including 4.5 tonnes flange rotator | 4-tab load sling (EPS-LINK), EPSILON crane column | Swivel mechanism with 4 swivel cylinders 2-circuit hydraulics CAN-BUS joystick control with 2 x 4-way control blocks electrically proportionally controlled including high stand, tarpaulin and high pressure filter, including BSZ plus an AUTEC radio remote control Hydraulic oil tank with 100 litres of hydraulic oil Hydraulic oil cooler with thermostat control Lifting cylinder protection Forestry package: Chainsaw, canister and sapling holder Headlight kit with 2x LED (1000 lumens) 2-rotary piston pump with console for universal joint drive and hydraulic oil 2x40 lt/600 rpm including screwed flange universal joint shaft Wood grapple with opening width 157 cm (0.30 m2), with flange rotator, reinforced version
Pec Rjrm S D Ej Nc Ifnegn
Характеристики
Общий вес
16 000 кг
Собственный вес
4 400 кг
Оборудование
ABS, дополнительные фары, противотуманные фары
Максимальная грузоподъёмность
11 600 кг
Конфигурация осей
2 оси
Размер шины

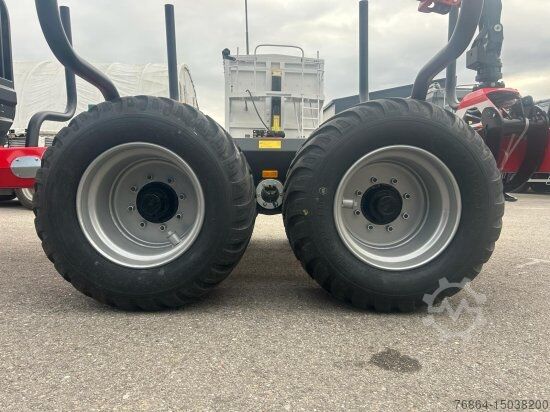

550/45R22,5
Колесная база
1 200 мм
Подвеска
воздух
