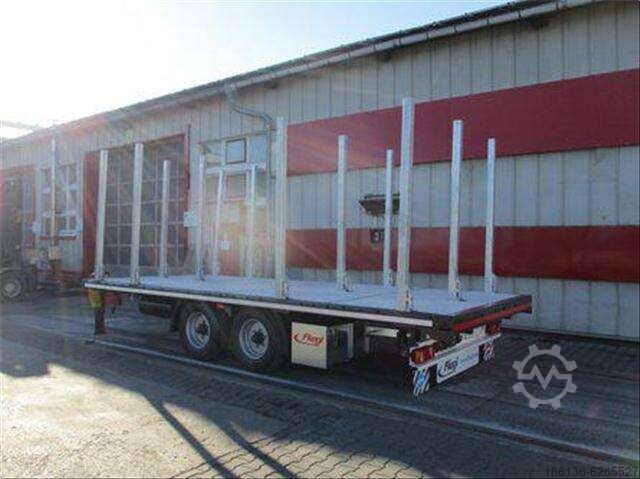

Лесовоз Fliegl TPS 118 Plateau 6,2m für Holz

Описание

Further information
Chassis central axle trailer
Fine-grained steel welded construction
Slightly sloping outer frame with Load-Lock profile for attaching tension beltsNote! To attach the belts in conjunction with drop sides, the drop sides must be opened!
Front gear support leg
Folding rear support
2 wheel chocks with holder
Galvanized steel underride guard
Quarter-shell mudguards
1 plastic tool box, with shelf, w=620/h=360/t=440 mm, lockable with a padlock. (lock not included in scope of delivery)
1 open storage compartment for stanchions, underneath loading area
4 pairs of stanchion pockets embedded in the outer frame, 83 x 83 mm internal dimensions
4 stake pockets centrally recessed in the floor, with reinforcements to the main frame, 83 x 83 mm internal dimensions
6 pairs of stanchions W=80/ D=80/ L=2000 mm, hot-dip galvanized
Note: Stanchion pockets / stanchions are not designed for securing long material, pipes etc. on their own without wrapping around them.
Tandem trailer drawbar
Drawbar with tested 40 mm drawbar eye
Drawbar mechanically adjustable in length by 4 x 500 mm from 1800 - 3800 mm, drawbar length set to 1800 mm, (Note! Observe load distribution and drawbar load)
Axles + suspension
GFA axles with angular roller bearings and S-cam brake
Axle/chassis laser-measured Reduction in tire wear and fuel consumption
Parabolic suspension with maintenance-free steel-rubber bearings and mechanical axle load compensation (rocker compensation)
Wheels and tires
235 / 75 R 17,5
at the manufacturer's choice
Steel rims, factory silver
Brake system
2-line compressed air brake system
Spring-applied parking brake
Integral air reservoir
2 non-interchangeable coupling heads at the front, with connecting cables to the motor vehicle,
ABS and ALB, with ABS plug at the front, with connecting cable
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
Electrical system
Pgec R Nsi Ri H Dsc Ifnjn
24 volt, multi-chamber lights, amber LED lighting at the side
2 white position lights at the front
2 white/red lane departure lights at the rear
2 x 7-pin interchangeable plugs at the front, with connecting cable,
Floor
Screen printing plates approx. 30 mm thick, for high point load capacity
Note: Floor warping due to weather influences possible!
Platform length approx. 6,200 mm
Operating instructions
The specified total weight is technically possible; depending on the load, the total weight may not be reached if the permissible axle/support and fifth-wheel loads are observed.
Approval / plates
Country of registration: Germany
With Dekra approval and expert opinion
24/7 service hotline
Prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048, white at the sides and red at the rear
Paint finish
Frame DB 7350 nova gray
Attention: Archive pictures!
