Полуавтомат с низкой загрузкой

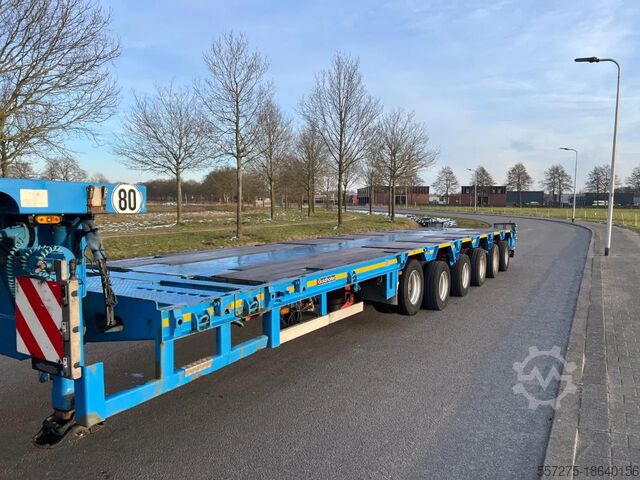

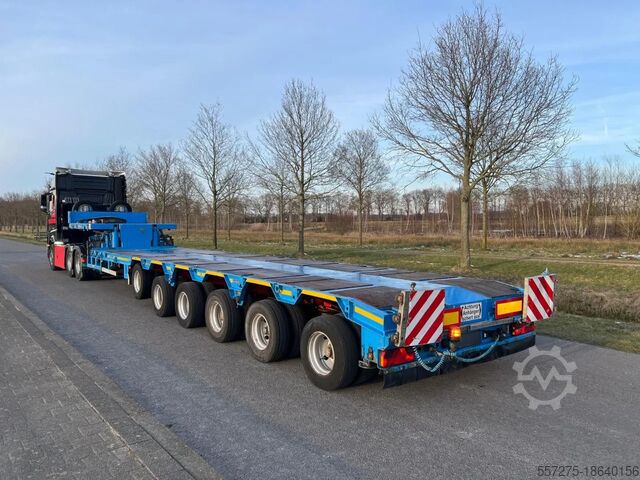

Полуавтомат с низкой загрузкой Goldhofer STZ-L6-61/ 80AA
Год выпуска
2011
Состояние
отличное состояние (б/у)
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
Color: Blue
Load capacity: 70400 kg.
Expandable
Additional information
Main features
Manufacturer: Goldhofer
Type: STZ-L6-61/ 80AA
Chassis number: WG0STZL6B90030358
Year: 2011
Weights/Loading Capacity
King pin load: 26,000 kg
Axle load: 11,200 kg
Total axle load: 67,200 kg
GVW: 93,200 kg
Empty weight: 22,800 kg
Loading capacity: 70,400 kg
Axles
Brand axles: BPW eco
Air suspension
All axles hydraulic steering
1st axle liftable
High/Low valve
WABCO braking system with ABS
Tires: 235 / 75 R17.5 | load index 143/141J
Dimensions
Length: 16,136 mm
Extensions: 8,050 mm + 7,900 mm
Total loading floor length: 27,850 mm
Max extended length: 32,086 mm
Loading floor width: 2,550 mm
Height: 935 mm – 975 mm (+140mm / – 60 mm)
King pin height: 1,365 mm – 1,405mm
Additional Information
Truck PTO
Cable remote
Lashing all around
Stake pockets

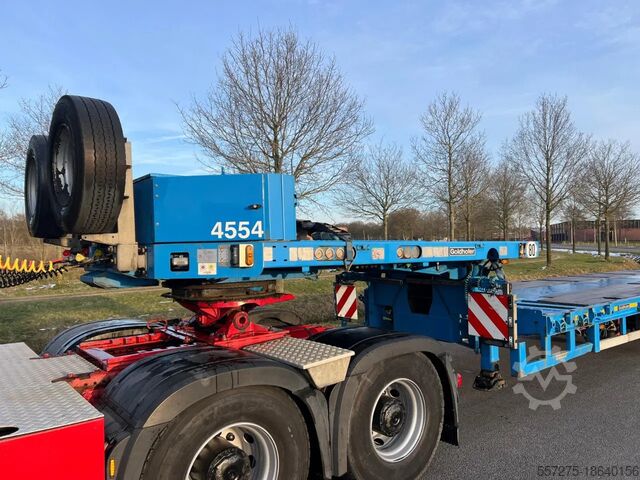

Hydraulic operated gooseneck

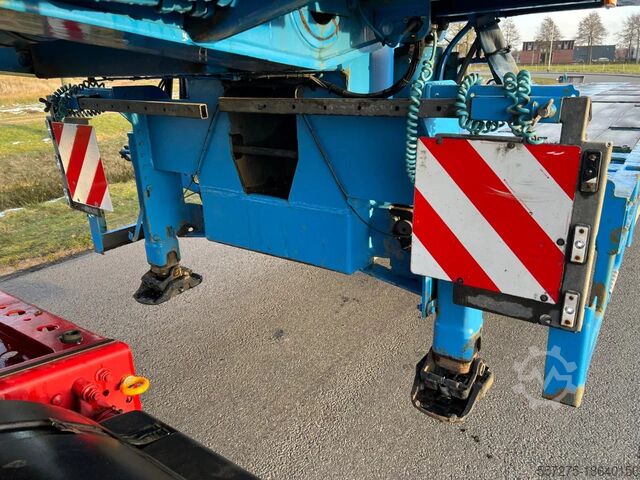

Mechanical landing gear
Electro hydraulic pump for functions of trailer
2x spare wheel + holder

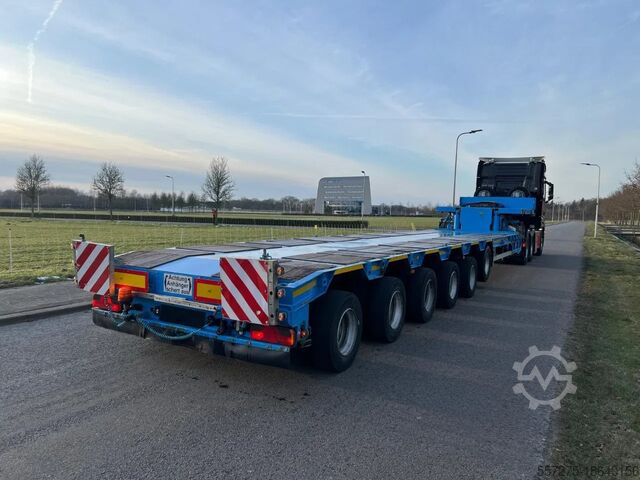

Rear bumper with lights
King pin 2.0”
Central greasing
Marker boards and warning lights
= Further information =
General Information
Year of manufacture: 2011

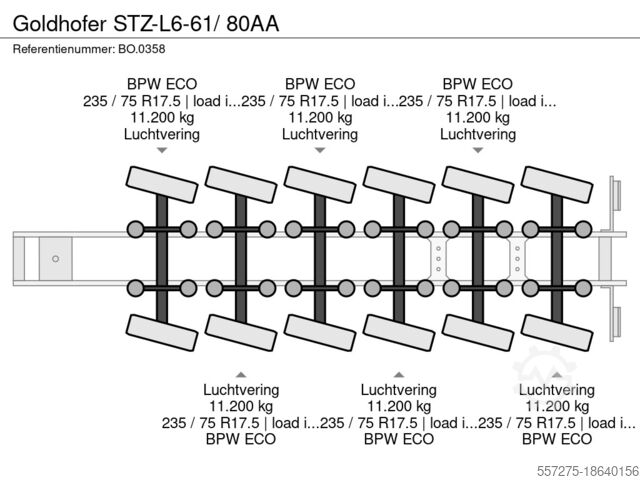

Axle configuration
Tire size: 235 / 75 R17.5 | load index 143/141J
Axle brand: BPW ECO
Suspension: air suspension
Rear axle 1: double tires; lift axle; max. axle load: 11200 kg; steered
Rear axle 2: double tires; max. axle load: 11200 kg; steered
Rear axle 3: double tires; max. axle load: 11200 kg; steered
Rear axle 4: double tires; max. axle load: 11200 kg; steered
Rear axle 5: double tires; max. axle load: 11200 kg; steered
Rear axle 6: double tires; max. axle load: 11200 kg; Steered
Dimensions
Dimensions (L x W): 1614 x 255 cm
Weights
Empty weight: 22,800 kg
Payload: 70,400 kg
GVW: 93,200 kg
Pjc R Nev E Nk Rec Ifnogn
Functional
Loading area height: 935 cm
Extendable body: Yes
Condition
Technical condition: very good
Visual condition: very good
More information
Contact Stefan Schaapveld for more information.
Характеристики
Цвет
синий
Конфигурация осей
3 оси
Размер шины
235 / 75 R17.5 | load index 143/141J
Подвеска
воздух
Ширина пространства для загрузки
2 550 мм
Длина грузового отсека
16 140 мм
Высота грузового отсека
9 350 мм
