Описание
Color: Grey
Pjceuu Hdvj R Nc Ifnogn
payload weight: 32540 kg.
Details:
Manufacturer: Goldhofer
Type: STZ-L4-33/80
Chassis number: WG0STZL4530027413
Year: 2003
Weights:
King pin load: 17,500 kg
Axle load: 10,000 kg
Total axle load: 40,000 kg
GVW: 57,500 kg
Empty weight: 24,960 kg
Loading capacity: 32,540 kg
Axles:
Brand axles: Giant
Air suspension
All axles hydraulic steering
High-low valve
ABS
Tyres: 235 / 75 R17.5 double fitted
Load index 143/141j
Measurements:
Length: 16,470 mm
Etensions: 8,740 mm +8,635 mm + 8,535 mm

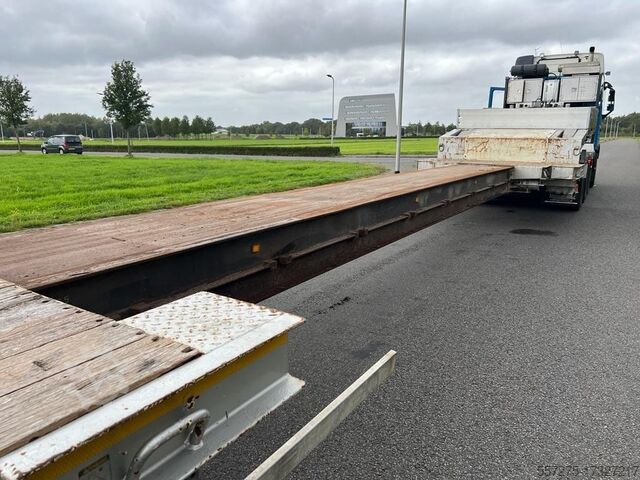

Max extended length: 42,380 mm
Loading floor width: 2,750 mm
Loading floor height: 1,025 mm (+100 / – 165 mm)
King-Pin height: +/- 1,250 mm
Additional information:
NATO plug
Lashing rings
Stake pockets

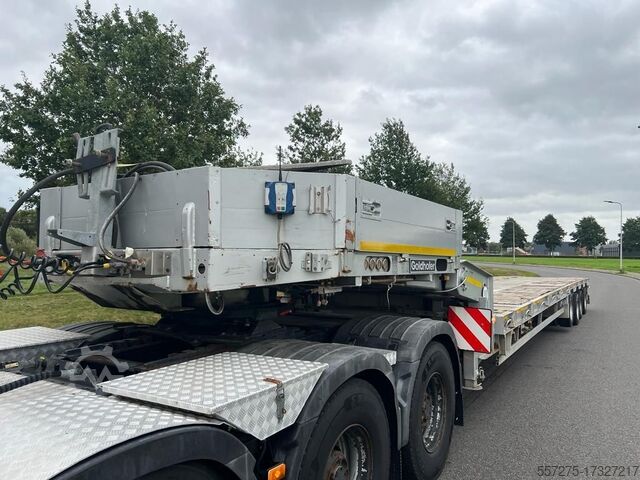

Hydraulic operated gooseneck

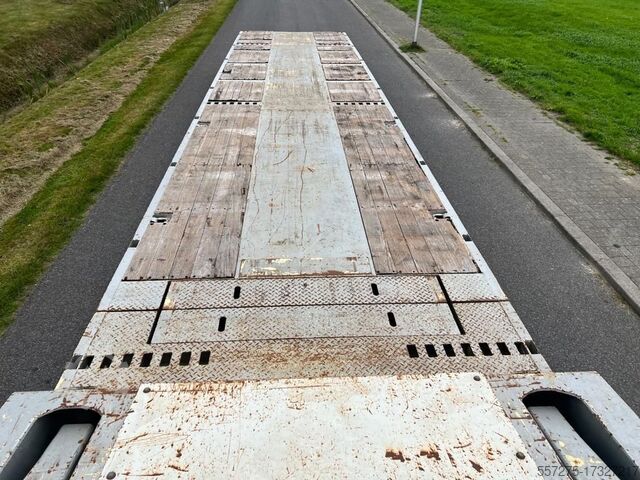

Wooden loading floor
Mechanical landing gear

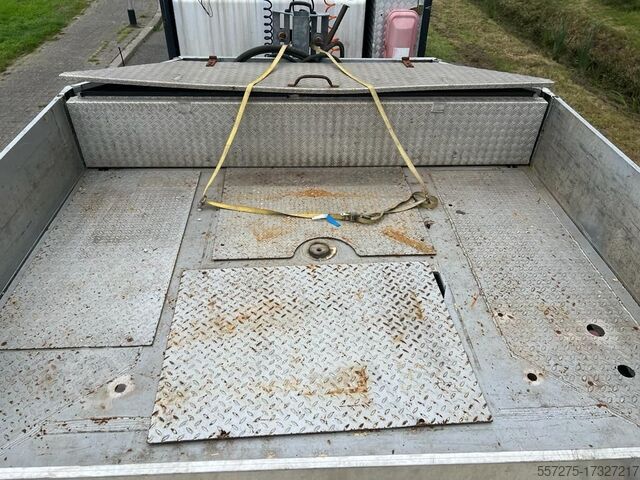

Toolbox
Electro hydraulic pump for functions of trailer
Spare wheel holder
King-pin 3.5”
Central greasing with 2 pumps
Radio remote control
= Further information =
General information
Year of manufacture: 2003
Axle configuration
Tire size: 235/75 R17.5
Axle brand: Gigant
Suspension: Air suspension
Rear axle 1: Twin tires; Lift axle; Max. axle load: 10,000 kg; Steered
Rear axle 2: Double tires; Max. axle load: 10,000 kg; Steered
Rear axle 3: Double tires; Max. axle load: 10,000 kg; Steered
Rear axle 4: Double tires; Max. axle load: 10,000 kg; Steered
Dimensions
Dimensions (L x W x H): 1647 x 275 x 125 cm
Weights
Empty weight: 2,960 kg
Payload: 32,540 kg
GVW: 57,500 kg
Functional
Loading area height: 102 cm
Extendable body: Yes
Condition
Technical condition: very good
Visual condition: very good
Further information
Contact Stefan Schaapveld for more information.
