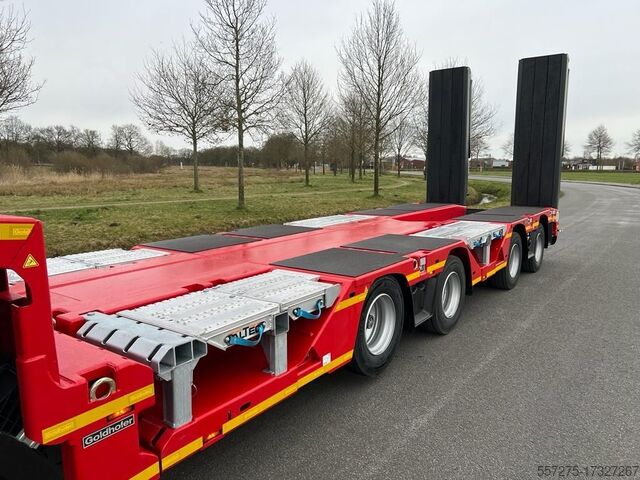

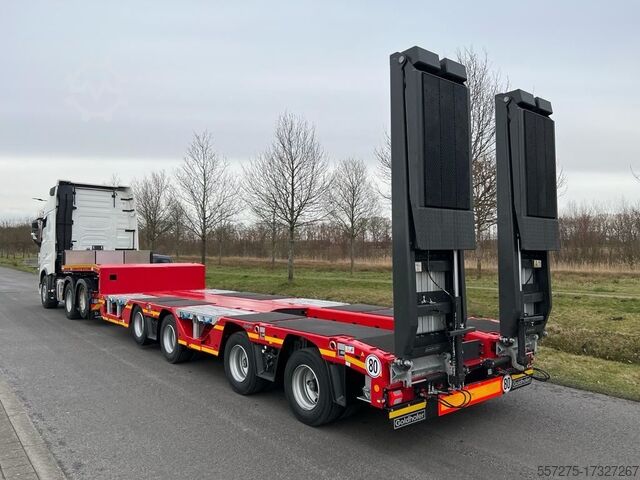

Полуавтомат с низкой загрузкой Goldhofer STN-L4 (245)A RM2 Stepstar

Описание

Color: Red
Load capacity: 55200 kg.
Loading floor height: 89 cm.
Expandable
Manufacturer: Goldhofer
Type: STN-L 4 (245) A RM2 - Stepstar
VIN: WG0STNL49N0042599
Year: 2022 - New/Unused
Weights:
King pin load: 18,500kg
Axle load: 12,000 kg
Total Axle Load: 48,000 kg
GVW: 66,500 kg
Empty weight: 11,300 kg
Loading capacity: 55,200 kg
Dimensions:
Length: 13,020 mm
Extension: 3,140 mm
Max extended length: 16,160 mm
Loading floor width: 2,550 mm / 3,000 mm
Loading floor height: 855mm / 895mm
+100mm / - 100mm
Height: 3,755mm
King pin height: 1,300 mm

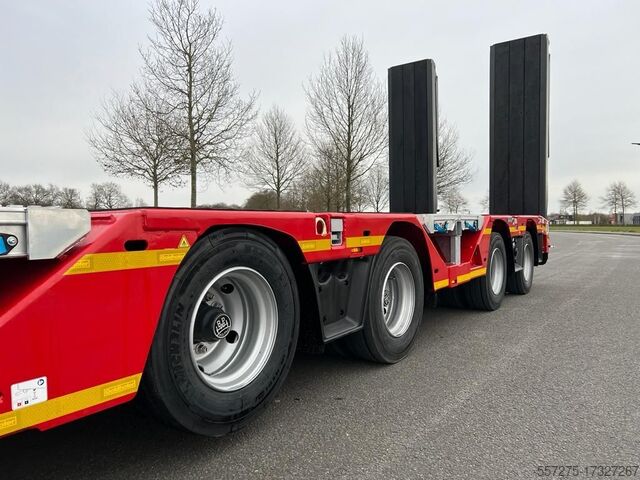

Axles:
Brand Axles: BPW Eco Plus
Air suspension
Axle 1 liftable
Axle 1 & 2 rigid
Pgec R Nouu Hgdjc Ifnjn
Axle 3 & 4 friction steering

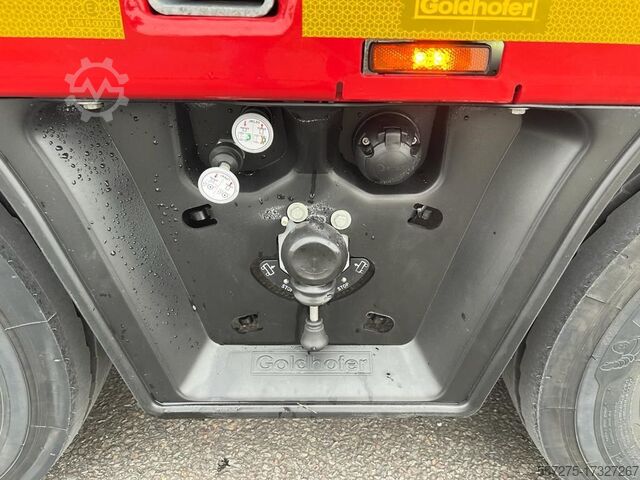

High-low valve
ABS
Tires: 245 / 70 R17.5 Double fitted
Load index 143/141J (146/146F)
Additional information

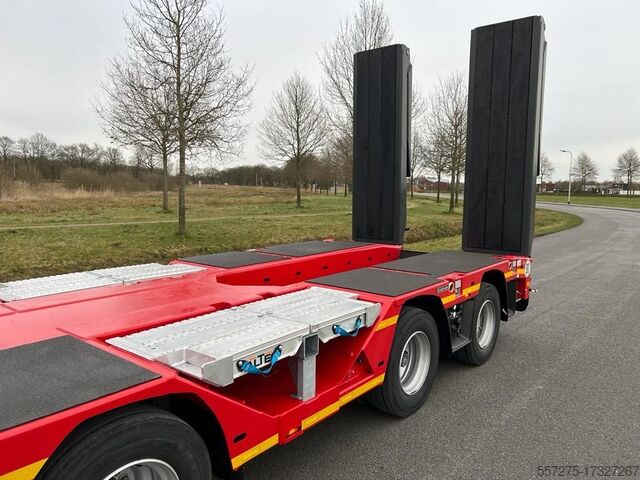

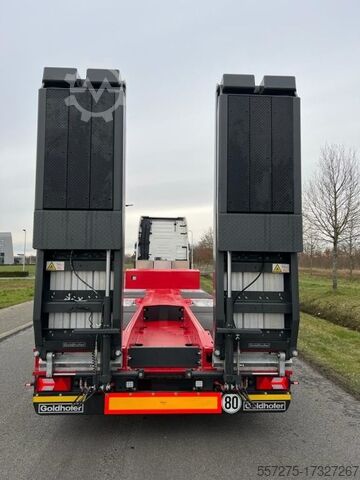

Remote control operated loading ramps
Hydraulic operated loading ramps

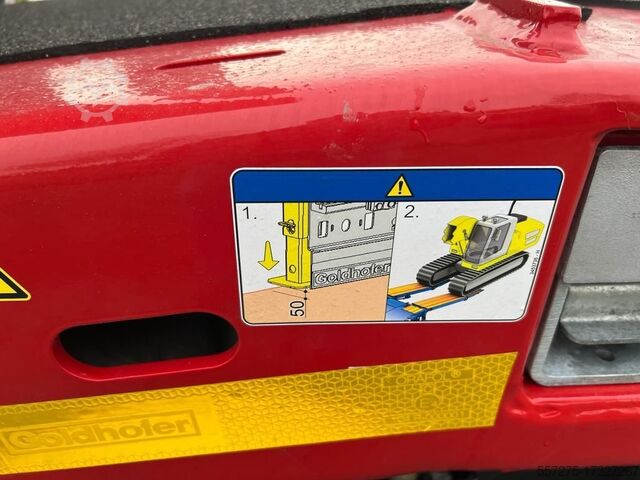

Mechanical rear support
Side extensions
Underride protection
Wheel recesses
Wheel recess covers
King pin 2.0''
Lashing all around
Stake pockets
Central greasing
Marker boards for oversize load
BPW landing gear

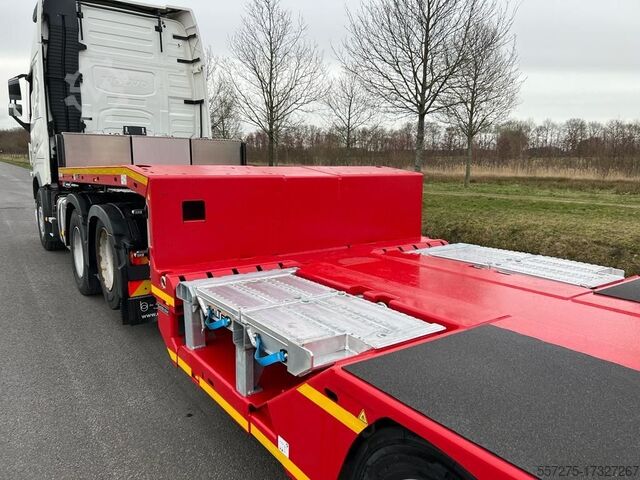

Toolboxes at Gooseneck
= More information =
Axle configuration
Tire size: 245 / 70 R17.5
Axle brand: BPW Eco Plus
Suspension: Air suspension
Front axle 1: Double tires; Lift axle; Max. axle load: 12000 kg; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Front axle 2: Double tires; Max. axle load: 12000 kg; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Rear axle 1: Double tires; Max. axle load: 12000 kg; Steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Rear axle 2: Double tires; Max. axle load: 12000 kg; Steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Dimensions
Dimensions (L x W x H): 1616 x 255 x 375 cm
Weights
Empty weight: 11,300 kg
Payload: 55,200 kg
GVW: 66,500 kg
Functional
Tail lift: Goldhofer
Extendable body: Yes
Condition
General condition: very good
Technical condition: very good
Visual condition: very good
Damage: none
Further information
Contact Stefan Schaapveld for more information.
