Полуавтомат с низкой загрузкой Faymonville F-S48-1AAA

Описание

Kleur: Rood
Load capacity: 100,250 kg.
Weights:
King pin load: 38,000 kg
Axle load: 12,000 kg
Total axle load: 96,000 kg
GVW: 134,000 kg
Empty weight: 33,750 kg
Loading capacity: 100,250 kg
Axles:
Brand Axles: BPW ECO PLUS
Hydraulic suspension
7 axles steering (Axle 2 rigid)
first two axle liftable
Drum brakes
Brake SN 3020 for ABS, with sensors
Tires: 245 / 70 R17.5 Double fitted
Load index 143/141J
Measurements:
Length: 17,700 mm
Extensions: 19,500 mm
Max extended length: 37,900 mm
Loading floor width: 3,990 / 3,450 mm
Loading floor height: 1,050 mm +/- 150 mm
Height: 3,815 mm
Additional information
NATO plug

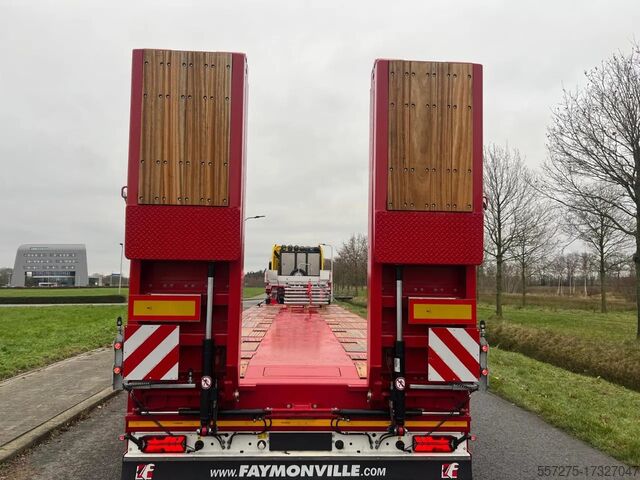

Hydraulic foldable ramps
Outriggers + planks for widening loading floor
Electro hydraulic pump for functions of trailer
Spare wheel + holder
Working lamps
Rear bumper with lights
King-pin 2.0”
Central greasing
Lashing rings
Wooden loading floor
Marker boards for oversize load
Remote control
General information
Year of manufacture: 2024
Axle configuration
Tire size: 245/70 R17.5 Double Fitted (143/141J)
Axle brand: BPW ECO PLUS
Brakes: drum brakes
Suspension: hydraulic suspension
Rear axle 1: double tires; lift axle; Max. axle load: 12000 kg; steered; tire profile left inside: 100%; tire profile left outside: 100%; tire profile right inside: 100%; tire profile right outside: 100%
Rear axle 2: double tires; lift axle; Max. axle load: 12000 kg; tire profile left inside: 100%; tire profile left outside: 100%; tire profile right inside: 100%; tire profile right outside: 100%
Rear axle 3: double tires; Max. axle load: 12000 kg; steered; tire profile left inside: 100%; tire profile left outside: 100%; tire profile right inside: 100%; tire profile right outside: 100%
Rear axle 4: double tires; Max. axle load: 12000 kg; steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Rear axle 5: Double tires; Max. axle load: 12000 kg; Steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Rear axle 6: Double tires; Max. axle load: 12000 kg; Steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Rear axle 7: Double tires; Max. axle load: 12000 kg; Steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Rear axle 8: Double tires; Max. axle load: 12000 kg; Steered; Tire profile left inside: 100%; Tire profile left outside: 100%; Tire profile right inside: 100%; Tire profile right outside: 100%
Dimensions
Dimensions (L x W x H): 1770 x 299 x 381 cm
Weights
Empty weight: 33,750 kg
Payload: 100,250 kg
GVW: 134,000 kg
Functional
Loading area height: 105 cm
Extendable body: Yes
Pgec R Nc Ifsuu E Tionon
Condition
General condition: very good
Technical condition: very good
Visual condition: very good
