Низкий погрузчик
Низкий погрузчик Goldhofer STZ VL44/80 Low Loader
Год выпуска
1992
Состояние
отличное состояние (б/у)
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
Color: blue
Load capacity: 43,600 kg
Expandable
Manufacturer: Goldhofer
Type: STZ-VL4-44-80 Extendable Low Loader
Chassis number: WG0STZV47N0020238
YOM: 1992
Weights:
King pin load: 24,000 kg
Axle load: 10,000 kg
Total Axle Load: 40,000 kg
GVW: 64,000 kg
Empty weight: 20,400 kg
Loading capacity: 43,600 kg
Axles:
Brand Axles: BPW
Air suspension
All axles hydraulic steering
High-low valve
ABS brake system
Tires: 9.50R17.5 Double fitted
Load index 143/141 J
Measurements:
Length: 17,840 mm
Extensions: 4,000 mm
Max extended length: 21,840 mm
Loading floor: 8,000 mm - 12,000 mm
Loading floor width: 2,750 mm
Height: 600 (+/-100) mm
King Pin Height: 1,300mm
Additional information:
Truck hydraulic connection for hydraulic functions
Lashing all around
2x spare wheel
Detachable Gooseneck
Hydraulic operated gooseneck
Working lamps
Rear bumper with lights
King pin 3.5”
Schübler lubrication system
Outriggers for loading floor widening
Fixed ramps on loading floor
High-low valve
= Further information =
General information
Year of manufacture: 1992

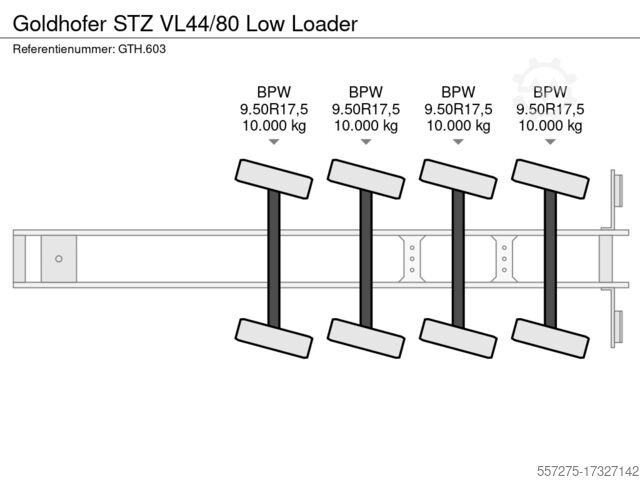

Axle configuration
Tyre size: 9.50R17.5
Axle brand: BPW
Rear axle 1: Double tires; Max. axle load: 10,000 kg; Steered
Rear axle 2: Double tires; Max. axle load: 10,000 kg; Steered
Rear axle 3: Double tires; Max. axle load: 10,000 kg; Steered
Rear axle 4: Double tires; Max. axle load: 10,000 kg; Steered
Weights
Empty weight: 20,400 kg
Payload: 43,600 kg
GVW: 64,000 kg
Functional
Extendable body: Yes
Condition
Technical condition: very good
Visual condition: very good
Pjc R Nc Ifjuu Hbhenogn
Damage: none
Further information
Contact Stefan Schaapveld for further information.
Характеристики
Цвет
синий
Конфигурация осей
3 оси
Размер шины
9.50R17,5
Колесная база
1 350 мм
Ширина пространства для загрузки
1 750 мм
Длина грузового отсека
17 840 мм
