Низкий погрузчик

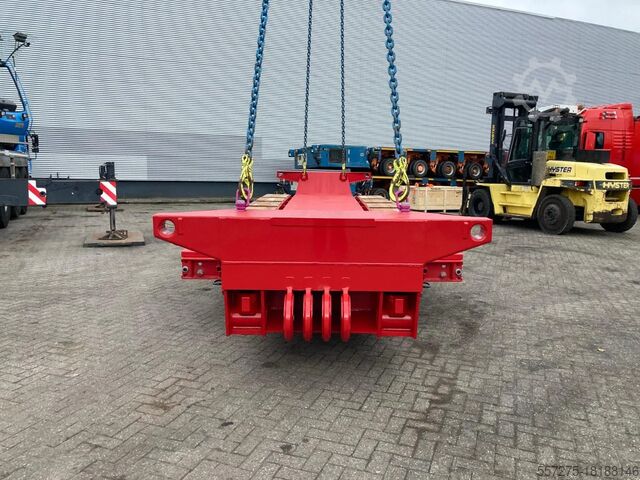

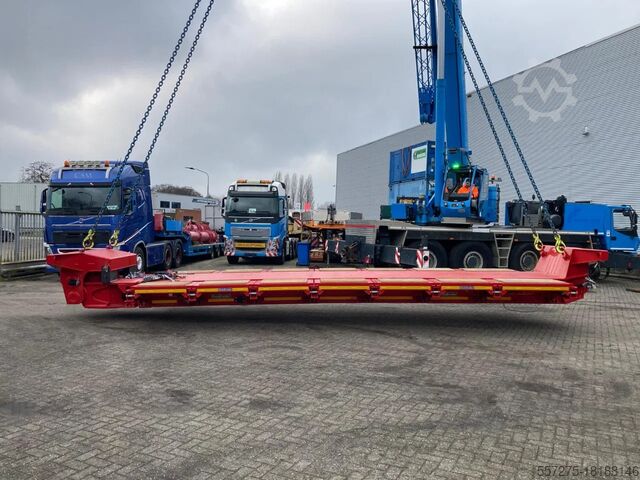

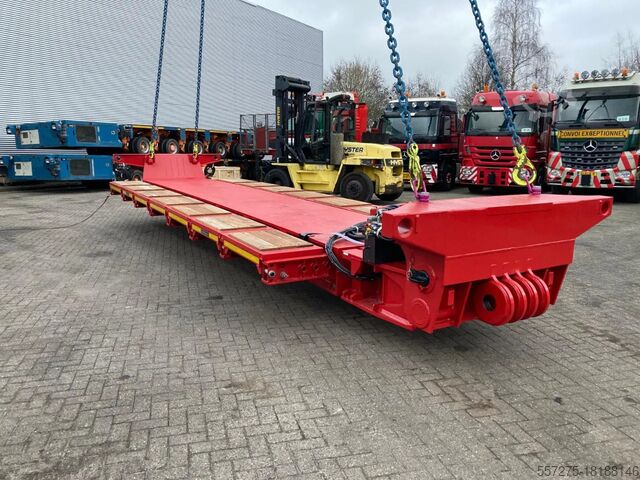

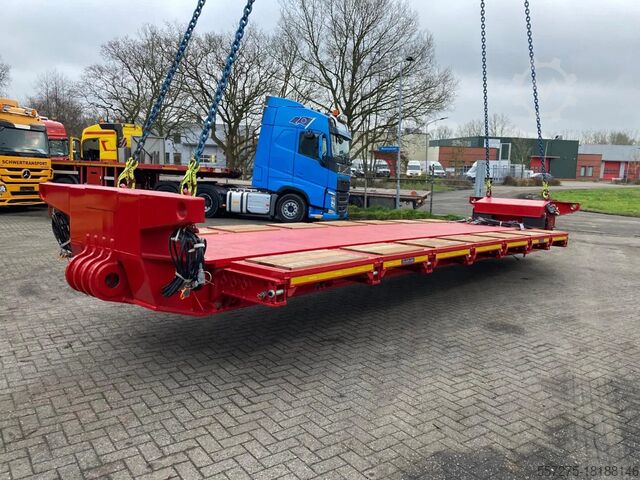

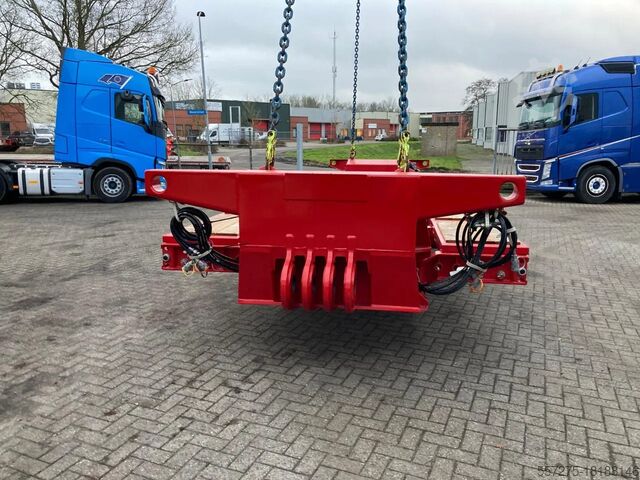

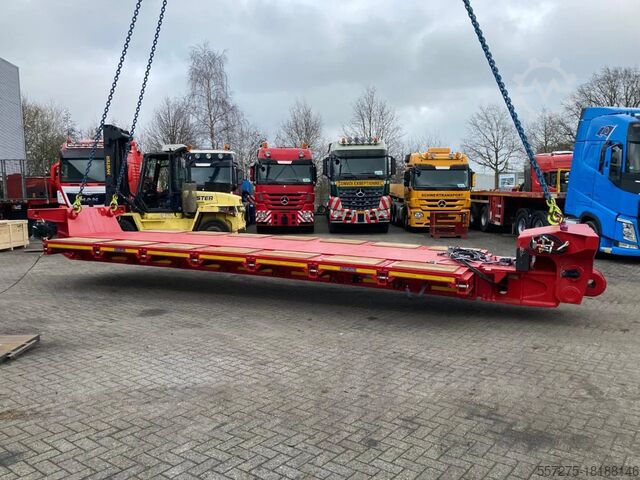

Низкий погрузчик Goldhofer Spinebed BB 450 A
Год выпуска
2024
Состояние
новое
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
Color : Red
Manufacturer: Goldhofer
Type: Crawler deck / Spinebed BB 450 A
Chassis number: 2100788
Year: 2024 – NEW/Unused
general
Extendable, from 8,000 mm to 13,000 mm
Payload classification 100t / 120t in combination 4+6
Design height 450mm; length 8,000 mm, width 1,350 mm
Extendable in steps of 500 mm
At the rear lashing coupling for connection to THP bogies
In the front claw couplings for connection to gooseneck or claw coupling adapter

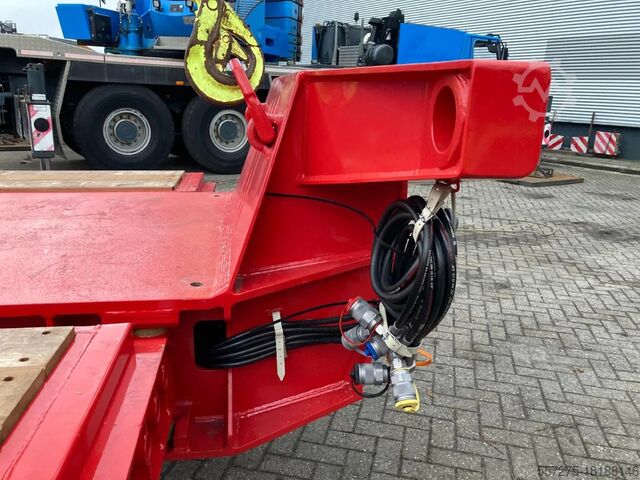

Integrated supply lines for hydraulics, brakes and electrics with connection couplings
Weight approx. 14,400 kg
Loading security
1 pair lashing rings (LC = 30,000 daN) in the rear coupling head
8 pair lashing rings (LC = 20,000 daN) arranged at the outside of the outer beam
Side extensions
Fold out outriggers and inserts on the outer beam (basic length)
Fold out side extensions and mattresses on the inner tube
1 x Quick coupling adapter THP/SL
To connect the coupling claws of a deck to coupling lashes of a modular bogie or a gooseneck
Deadweight 1,600 kg
1 x Drive on wedge for excavator deck in steel execution (4 pieces)
Weight 360 kg
= More information =
Poc Rovnb Nwo Nc Ifnogn
General information
Year of construction: 2024
Weights
Empty weight: 14,400 kg
Payload: 120,000 kg
GVW: 134,400 kg
Functional
Loading area height: 45 cm
Extendable superstructure: Yes
Condition
General condition: very good
Technical condition: very good
Visual condition: very good
More information
Contact Stefan Schaapveld for more information.
Характеристики
Цвет
красный
Ширина пространства для загрузки
1 350 мм
Длина грузового отсека
8 000 мм
Высота грузового отсека
450 мм
