Описание
Color : Yellow
Loading capacity: 64800 kg.
Main features
Manufacturer: Faymonville

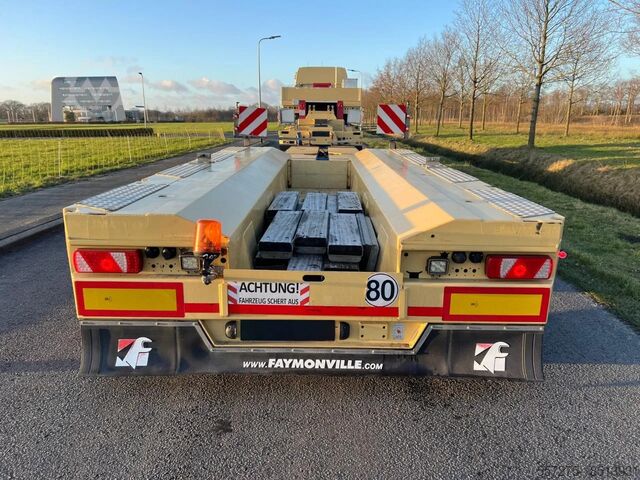

Type: GigaMax 1+4 / F-S45-2GXX
Chassis number: YAFTL1009M0027562
Year: 2021
Weights/Loading Capacity
King pin load: 25,000 kg
Axle load: 12,000 kg
Total axle load: 12,000 kg x 5 = 60,000 kg
GVW: 84,200 kg
Empty weight: 20,200 kg
Loading capacity: 64,800 kg

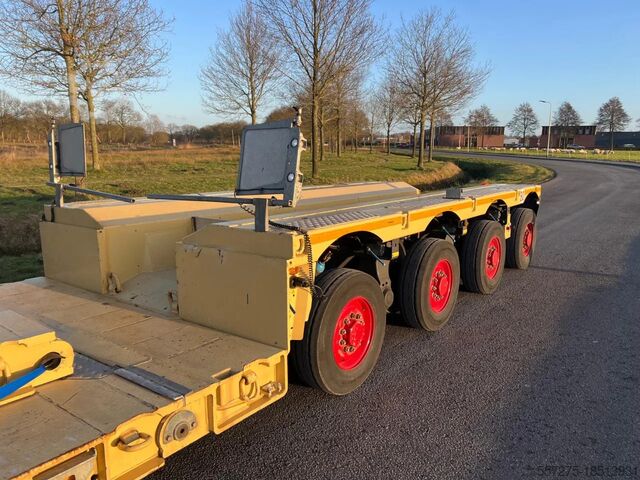

Axles
Pendulum axles
Hydraulic suspension
All axles hydraulic steering
WABCO braking system with EBS-E
Tires: 245/70 R 17.5 | 143/131L (146/146F)
Dimensions
Length: 17,320 mm
Loading floor length: 6,800 mm
2x extension beams: 2,000 mm / 3,000 mm
Loading floor width: 2,750 mm / 3,200 mm
Loading floor height: 400 mm
Ground clearance: 150mm
King pin height: +/- 1,340 mm
Additional information:

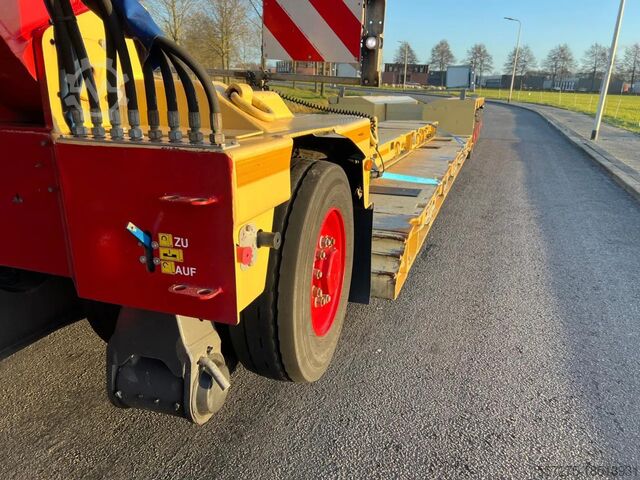

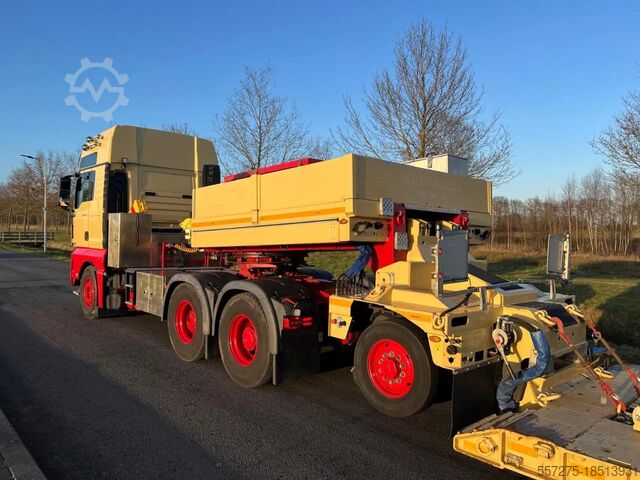

Gooseneck with integrated 1-axle pendle axle
Hatz diesel power pack
Hydraulic operated gooseneck
Aluminum side boards on Gooseneck
2x extension beams: 2,000 mm / 3,000 mm

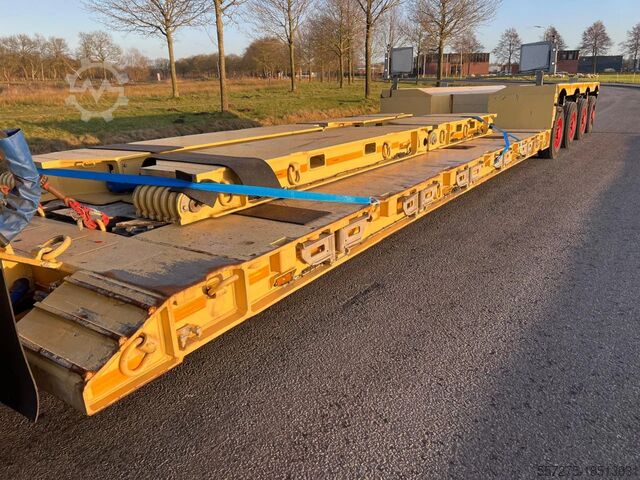

Excavator trough
Lashing all around
Stainless steel tool box
Spare wheel + holder

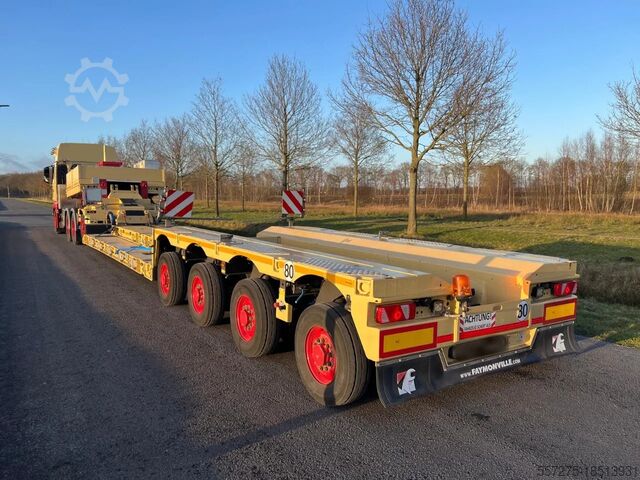

Rear bumper with lights
King pin 3.5”
Central greasing with 2 BEKAMAX pumps
= More information =
General information
Year of manufacture: 2021
Axle configuration
Tire size: 245/70 R 17.5 | 143/131L (146/146F)
Suspension: hydraulic suspension
Front axle: double tires; lift axle; Max. axle load: 12000 kg; steered
Rear axle 1: double tires; lift axle; Max. axle load: 12000 kg; steered
Rear axle 2: double tires; lift axle; Max. axle load: 12000 kg; steered
Rear axle 3: double tires; lift axle; Max. axle load: 12000 kg; steered
Rear axle 4: double tires; lift axle; Max. axle load: 12000 kg; Steered
Dimensions
Dimensions (L x W): 1732 x 320 cm
Weights
Empty weight: 20,200 kg
Payload: 64,800 kg
GVW: 85,000 kg
Functional
Loading area height: 40 cm
Extendable body: Yes
Condition
Technical condition: very good
Visual condition: very good
