Полуприцеп EUROMIX MTP - Fahrmischer EM 10 L 2-Achser

Описание

X TO GO?EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES FROM OUR LOCATION IN PORTA WESTFALICA, GERMANY.
FOR ALL CUSTOMERS IN AN ACUTE NEED. (SHORT-TERM CAPACITY EXPANSION OR REPLACEMENT INVESTMENT) Your advantages:
Ready-to-use complete vehicles (concrete mixer/tipper)
Immediate availability directly from the manufacturer
Construction, assembly, commercial vehicle -
Best price/performance ratio
Financing options
Trade-in of your old vehicles

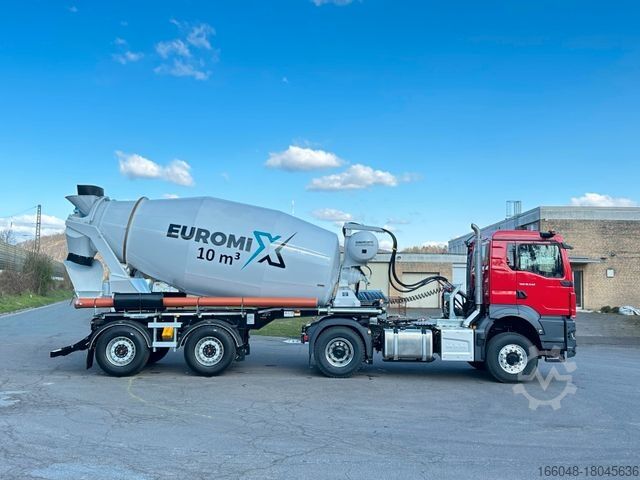

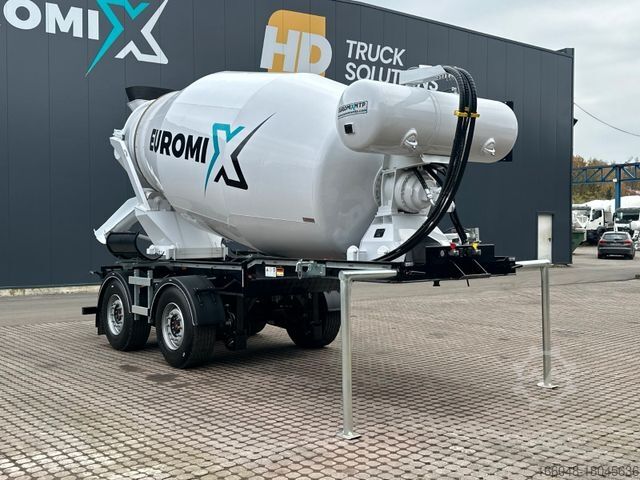

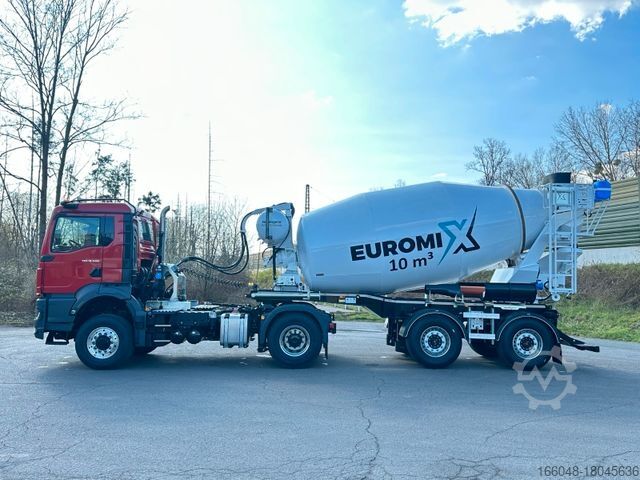

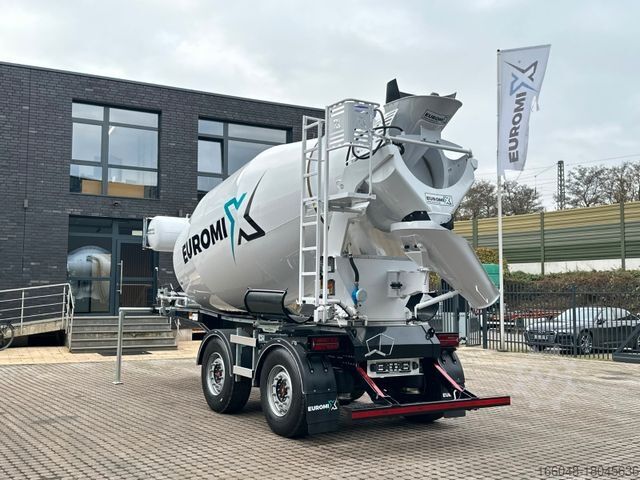

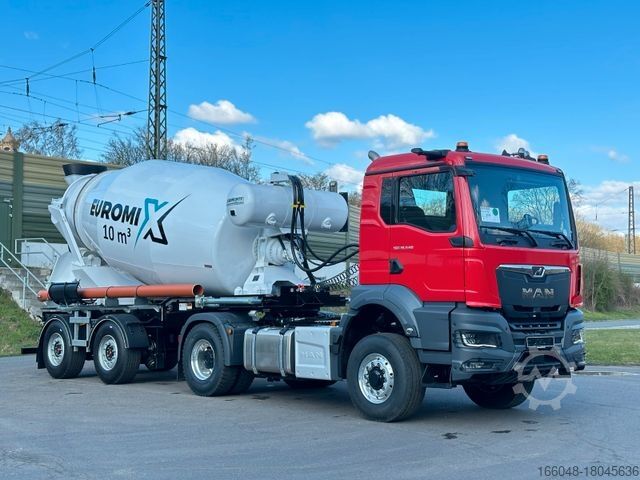

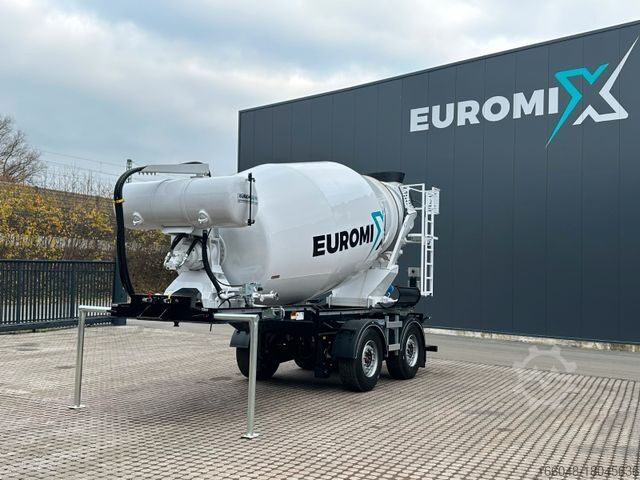

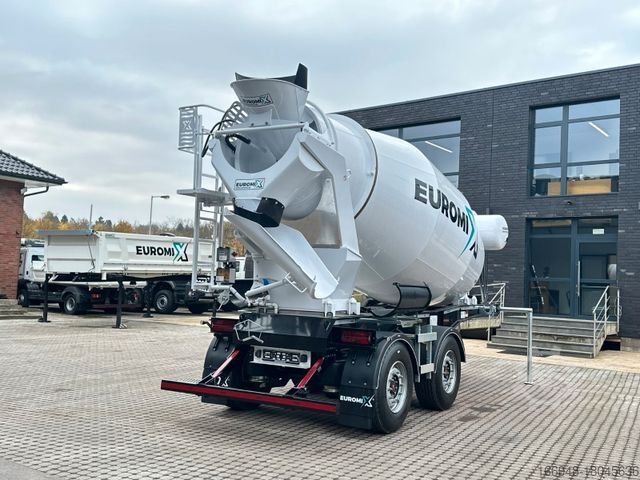

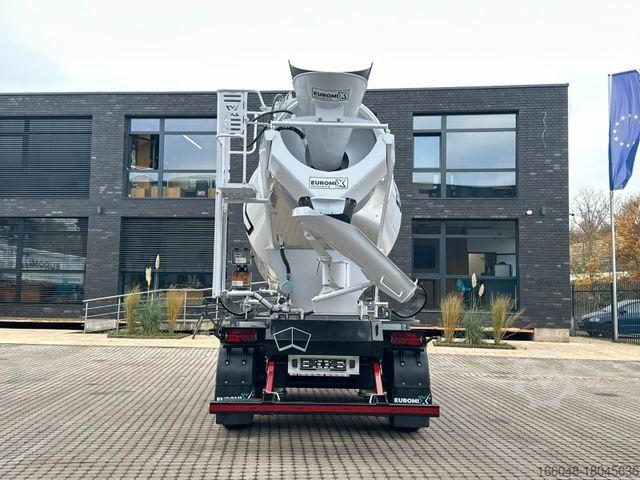

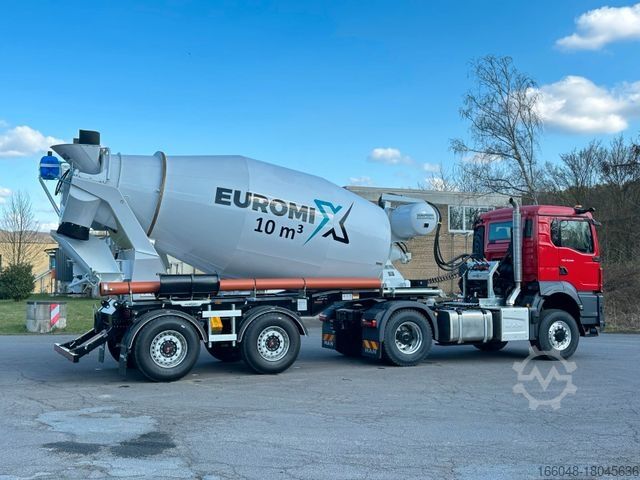

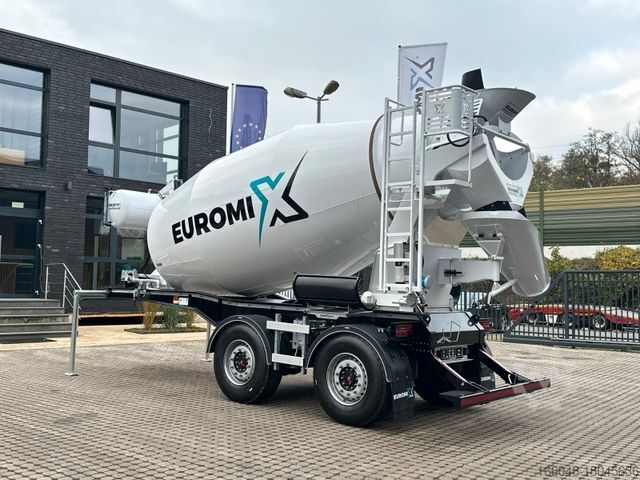

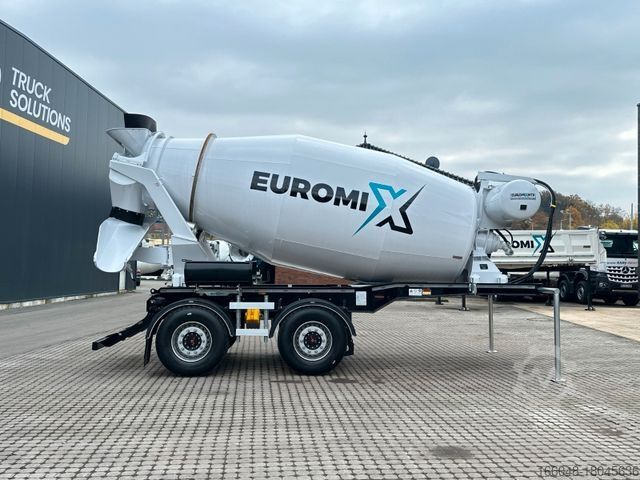

EUROMIX MTP 10 m³ mixer trailer
(Rental available)
* - New

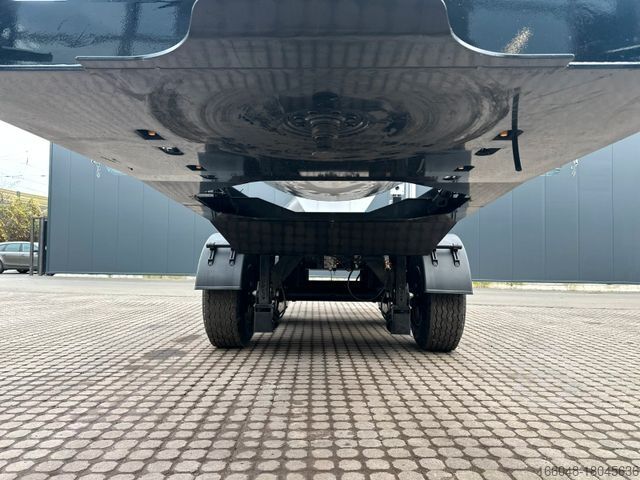

* - 2-axle
* - SAF axles
* - 1x lift axle - ABS air suspension
* - Tires 385/65 R22.5
* - Total weight approx. 36,000 kg
Pscjvh A Afo R Nc Ifnogn

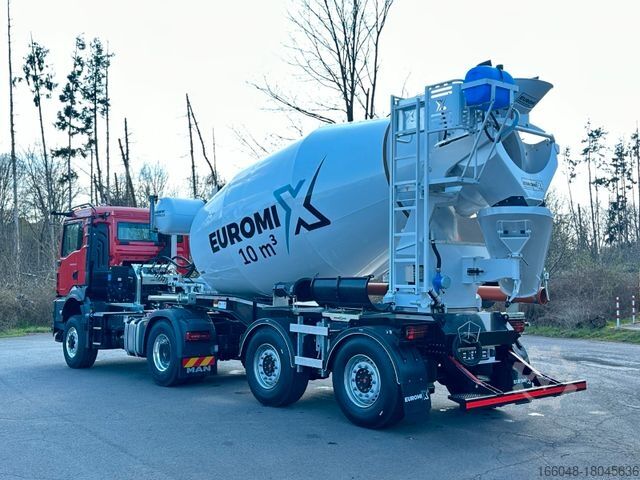

EUROMIX MTP - Truck mixer body EM 10 L - Lightweight construction
* Model: EM 10 L
* Nominal volume 10 m³ ready-mixed concrete
* Lightweight mixing drum
* Lightweight mixing drum made of HARDOX material S450
* Lightweight mixing augers made of HARDOX S500 material
* ZF P5300 gearbox
* Bosch Rexroth hydraulic pump
* Bosch Rexroth hydraulic motor
* Integrated oil cooling system
* Mechanical mixing control and electric start/stop

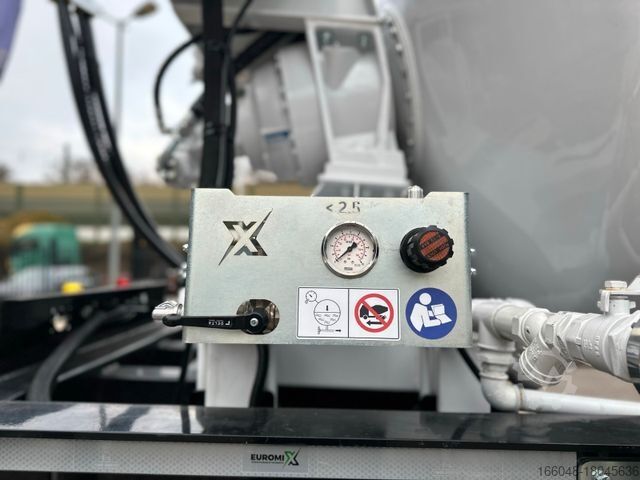

* Compressed air/water system
* Water connection on the platform with hose line
* Water filling line, with C-coupling on one side
* Mixing drum with a service hatch
* Step ladder with platform
* Rubber attachment on the hopper
* Pivoting, single-arm steel discharge chute
* Wear plates in the hopper, discharge bowl, and swivel cord
* Drum lock to secure the drum during maintenance work
* Polyurethane primer
* Weight approx. 3,650 kg, deviations +/- 5%
* With emergency stop function in accordance with EU safety technology
* Steel wings above the rear axles
* 2x extension chutes made of steel or plastic
* Water system

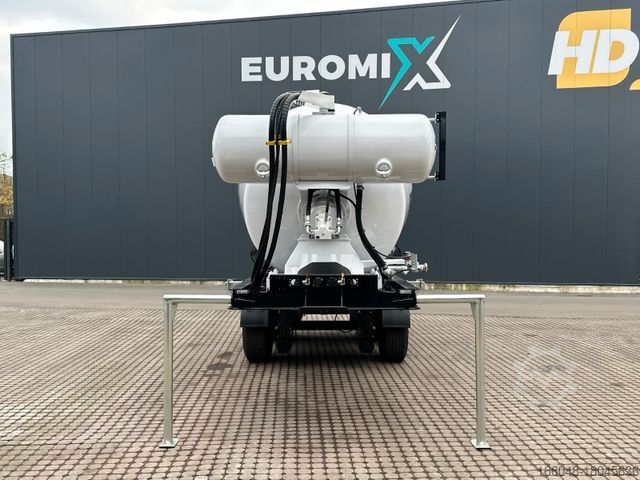

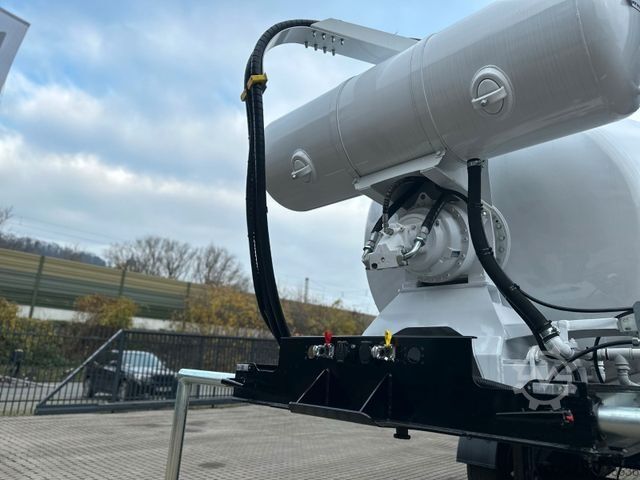

* Water tank 500L (compressed air)
* Steel water tank
* Shut-off valve mounted below the water tank in the filling line
* Water connection: "C" coupling
* Controls & Electrical System

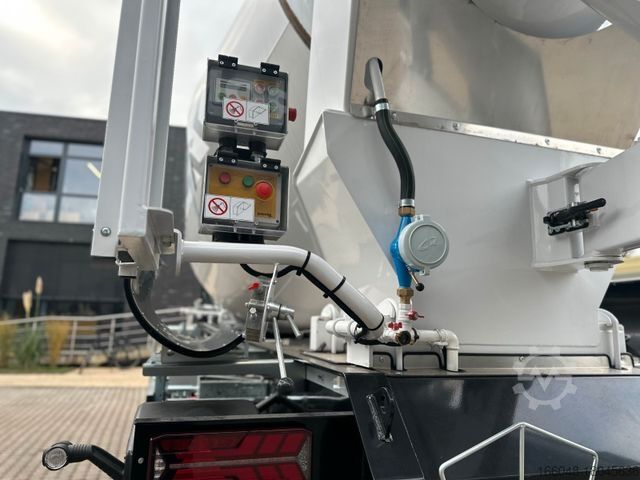

* Mechanical mixer control at the rear
* Start-stop system (for EDC)
* Geometric volume 17361 L
* Water tank volume 11121 L
* Tank inclination 11.3
* Length 7075 mm
* Width 2300 mm
* Height 2748 mm
Special equipment:
* Extension chute, plastic, steel, aluminum
* Folding chute, plastic (or steel)
* Retaining flap, pivoting chute
* Plastic box
* Stainless steel storage box
* Non-pressurized additive tank
* Pressurized additive tank
* Trowel holder
* ? Drum lock
* Rearview camera
* LED work lights
* EuromixMTP intelligent drum control (electronic truck mixer control)
* Underrun protection step with grab handle
* Water meter
* Pressure gauge
* Frame cover
* Fire extinguisher
* Bracket for flowable concrete pipe (5 m long)
* Transition piece for flowable concrete pipe (reducing chute)
* Hydraulic chute support
