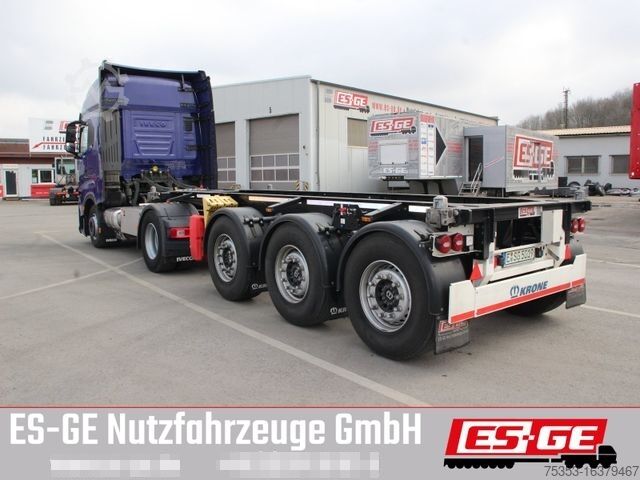

Полуприцеп с сменным кузовом KRONE 3-Achs-Containerchassis 20'

Описание

Extract from the equipment. Complete equipment on request.
Chassis
* Double-T longitudinal beam welded to cross beams, front height: approx. 147 mm (incl. fifth wheel plate)
* Chassis version 'Compact rear'
* 2 interchangeable kingpins, 1 position: front overhang: approx. 570 mm A 100.390 container beams as rectangular tube, approx. 200 x 120 x 8 mm thick, reinforcements on the approach slope
* External rear ram protection, fixed in steel
* Rear underrun protection device in accordance with EC directive
* Side protection device in accordance with EC directive
* Side protection device approx. 460 mm high
* Full Quick-Lock equipment -Locks in every possible position -Locks are theft-proof
* Container locks for the following containers: 1 x 20' container flush with the rear
* Length of kingpin to rear edge of vehicle: approx. 6,620 mm
Support device
* Two mechanical support winches, 2 x 12 t, semi-circular with base plate, make: Jost
* Support winches operated on one side, in FR-right
Axles/aggregate
* 3 axles each with a load capacity of 9,000 kg
* Wheelbase: approx. 1,410 / 1,310 mm
* KRONE axles with air suspension and disc brake, ET 120
* Aggregate spacing = approx. 4,625 mm
* Brake disc with a diameter of approx. 430 mm
* Warranty extension? on the KRONE axle: 6 years with no mileage limit for on-road use within the EU
A 3-year design and manufacturer warranty is provided on all components subject to wear, with natural wear excluded.
EU 2014, Norway, Switzerland, Turkey
* fully automatic electronic lifting axle control for 1st axle depending on load
* manual function on control console for forced lifting (= starting aid according to Directive 97/27/EC) and forced lowering via rotary switch
* Preparation of the lifting/trailing axle(s) for operation from the towing vehicle (without towing vehicle installation), according to the selected plug connection(s) light, for control via ?Contact 6 of the 7-pin additional plug connection - ISO 3731 and/or ?Contact 12 of the 15-pin plug connection - ISO 12098 and/or ?Contact 8 A of the VBG plug connection
* with lifting and lowering device, including automatic ride height reset
Tires (rims)
* 6-fold, 385/65 R 22.5
* without spare wheel
* Profile: M+S (mud + snow)
* Wheel nuts with protective caps
Fender
* Plastic wheel cover
* Splash guard according to EC directive
Brake
* Brake system according to ECE regulation 13 (including vehicle stabilization function)
* Spring-loaded parking brake
* Diagnosis via ISO7638 plug connection (EBS supply cable)
* Brake line connections below the top edge of the carrier
* 4 wheel chocks with holder
* Standard air connections ISO 1728 (Palm)
* Light metal air tank
Psc R Ncotx Nwns Ifnegn
* Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS! * EBS system, 2S/2M, 2 sensors on one axle
Light
* Lighting and light signal device in accordance with UN ECE Rg. No. 48
* 2 outline lights with rubber arm, LED version
* Electrical connections below the upper edge of the carrier
* LED side marker lights with direction indicator (flashing function)
* 24 volts, front with 7-pin socket DIN ISO 1185
* 7-pin socket DIN ISO 3731 at the front, for additional functions
* additional 15-pin socket DIN ISO 12098 at the front
* Note: Plug contacts (2x7-pin and/or 15-pin) in accordance with ISO 1185/3731 and/or ISO 12098, with 9 contacts available (standard light functions) Main cable 9-core
* Note: When transporting hazardous goods, only the 15-pin plug
