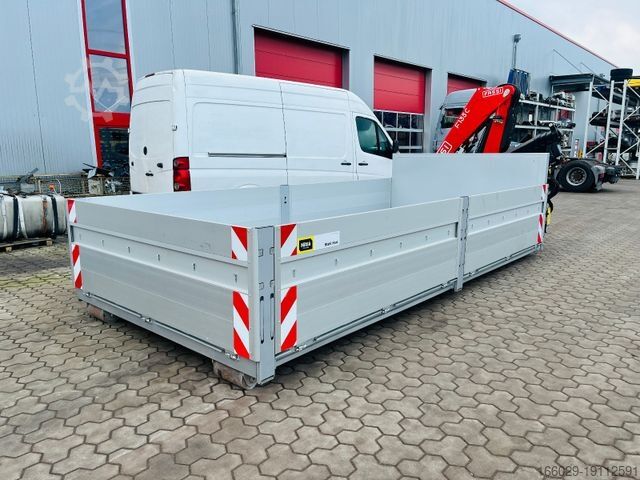

Brand new roll-off container with FASSI loading crane

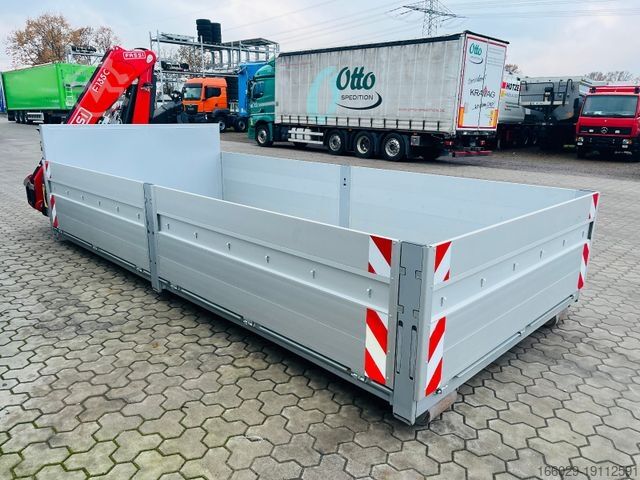

Roll-off container in flatbed design with aluminum side walls
and permanently mounted Fassi loading crane

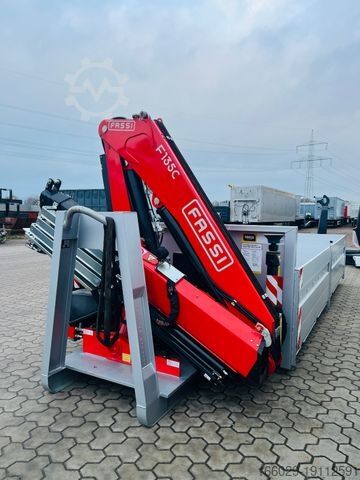

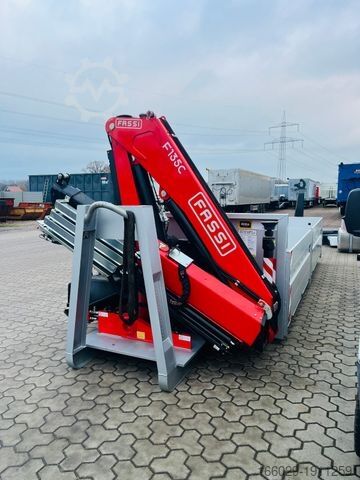

FASSI loading crane F135AC.0.24:
* 390° slewing range
* All hydraulic cylinders double-acting
* Hard-chrome-plated piston rods

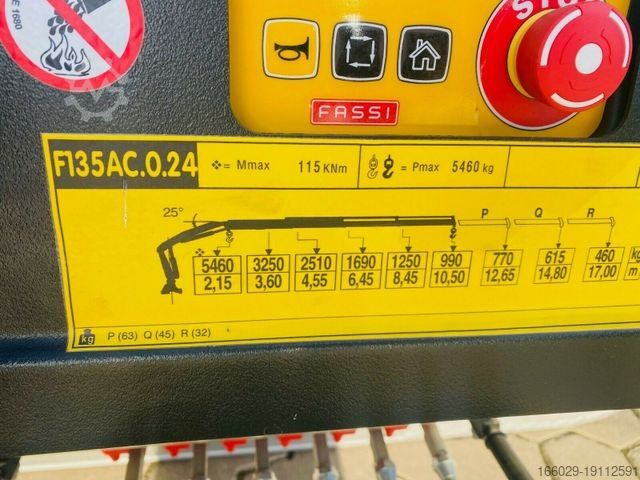

* Electronic overload cut-off device with FX500
* Emergency stop and visual alarm (90% and 100%)
* Including adjustable digital slew limiter
* FASSI FSC stability control including LMB II

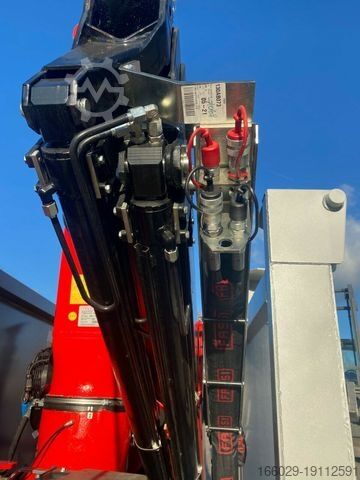

* Pressure relief and load-holding valves
* Control block with 4 control valves, operable from both sides
* 5th and 6th control circuits

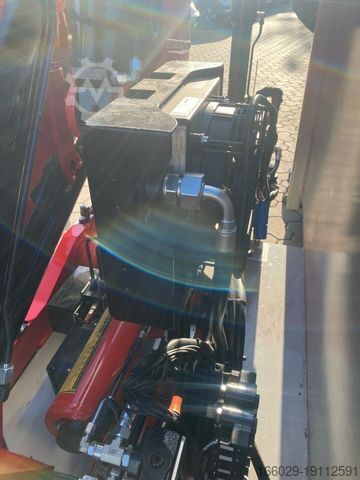

* Oil cooler type 60/24
* Extendable on both sides, support width 4.37 m, hydraulic support
* Standard color RAL 3020 traffic red - all cylinders painted black
* Load hooks and mounting clamps (short / 500mm)
* Driving position: folded across the direction of travel
* Dead center above the outrigger beam

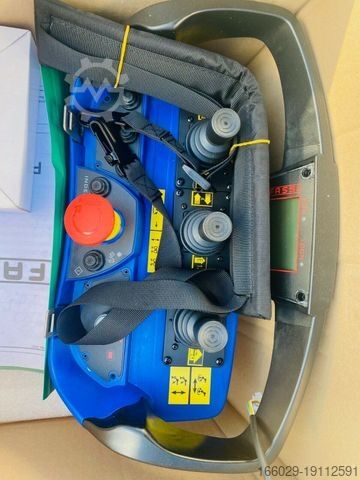

* Joystick control for 6 functions
* 1 LED work light
* Outriggers can be operated remotely
* 180° hydraulic Elevating support legs
Roll-off container/crane container
Transport platform
Total length 6500 mm
- According to DIN 30722 Part 1
- Internal dimensions 5300 mm (5300 mm x 2450 mm)
- Crane plate 1200 x 1200 x 25 mm S355
- Pre-installed hook holder Ø50 mm

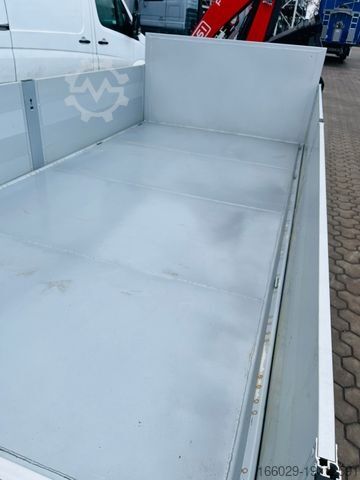

- 5 mm smooth floor
- U-shaped frames 80 x 50 x 4 mm, 500 mm spacing
- UNP-180 end frame
- Perforated side profile
- Greaseable and replaceable run-off rollers, axles
Ø40 mm
Pgjc R Njwikytec Ifnjn
- 25 mm aluminum side walls on the sides and rear
SNAPLOCK system (height 800 mm), split in the middle
- WITHOUT tarpaulin hooks
- KINNEGRIP K20 stanchions (foldable/removable in the middle and rear)
- Front wall height 1200mm
- Primed inside and out
- Exterior paint in any RAL color (stock item in RAL 9006 Silver)
- Anodized aluminum profiles
- Initial container inspection according to BGI 5005
Mechanical and hydraulic connections to the truck will be carried out upon request! Additional charge!
We are happy to provide further information.
